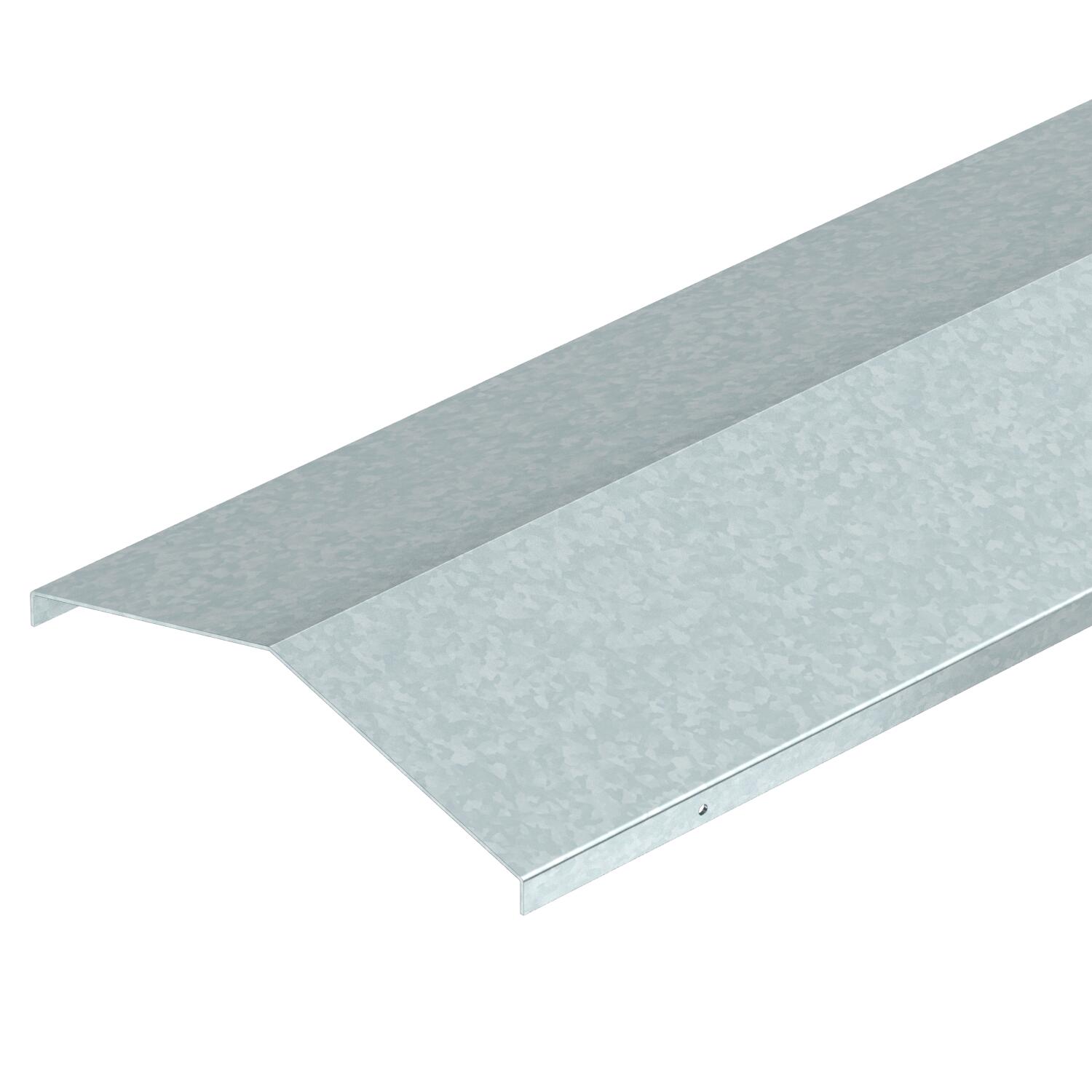

Roof-form cover
Item no. 6227261 | EAN 4012196428496
- Product description
-
Product descriptionRoof-shaped cover for installing on cable trays, cable ladders and wide span systems. Self-tapping drilling screws are used for fastening.
-
- Technical data
-
Technical data

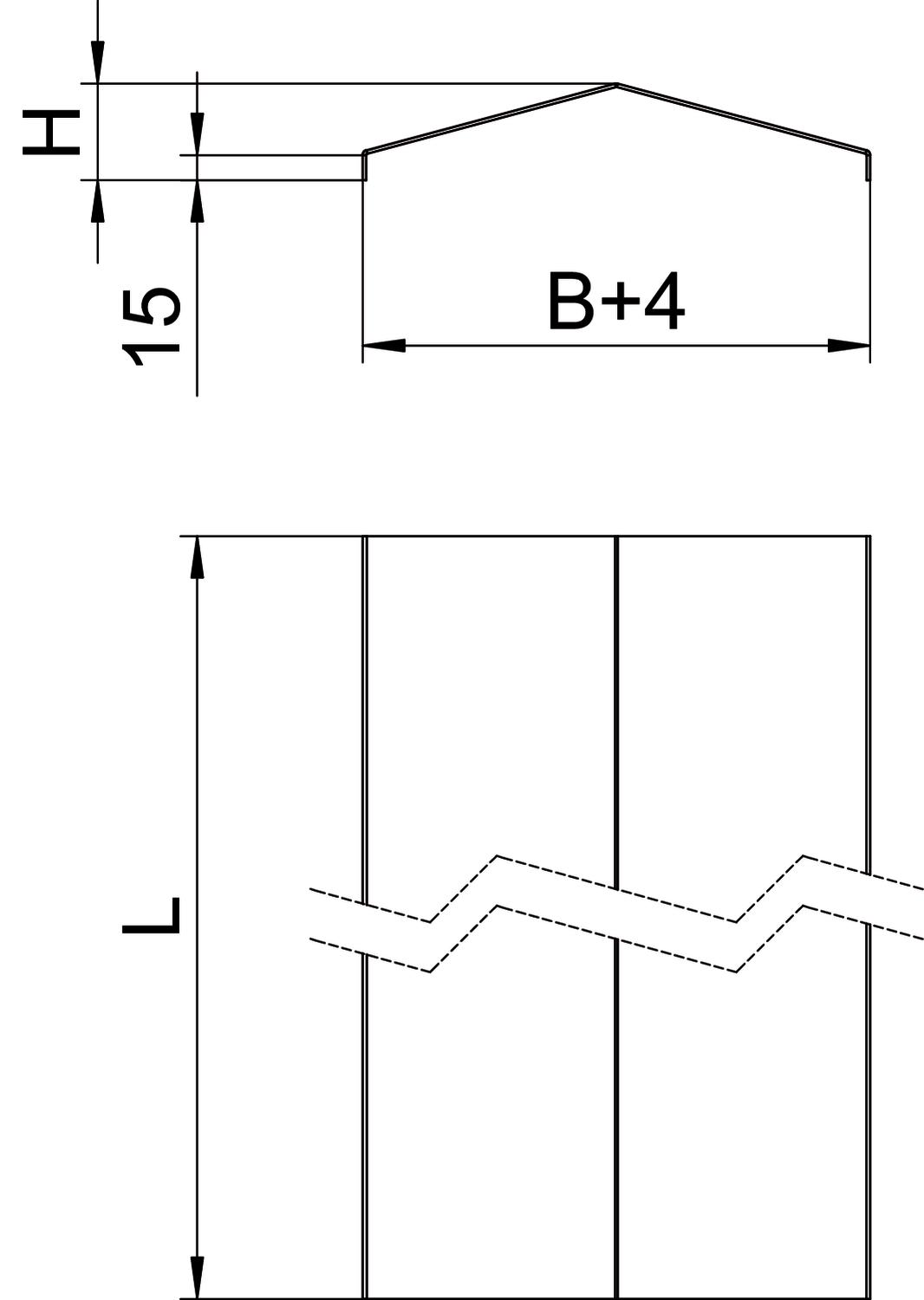

Colour zinc Dimension 200x3000x2mm Dimension B 200 mm Dimension H 45 mm Dimension L 3000 mm Fastening type Screw-on Height 45 mm Length 3000 mm Maintain electrical functions no Material Steel Plate thickness 2 mm Rustproof steel, pickled no Suitable for cable ladder yes Suitable for cable tray yes Suitable for mesh cable tray no Surface Hot-dip galvanised Width 200 mm - All types
