Roof conductor holder for tiled roofs, Rd 8
Item no. 5215579 | EAN 4012195812234
- Product description
-
Product description
• Conductor holder from stainless steel (V2A)
• Including drill hole in bottom section for quick installation
- Technical data
-
Technical data

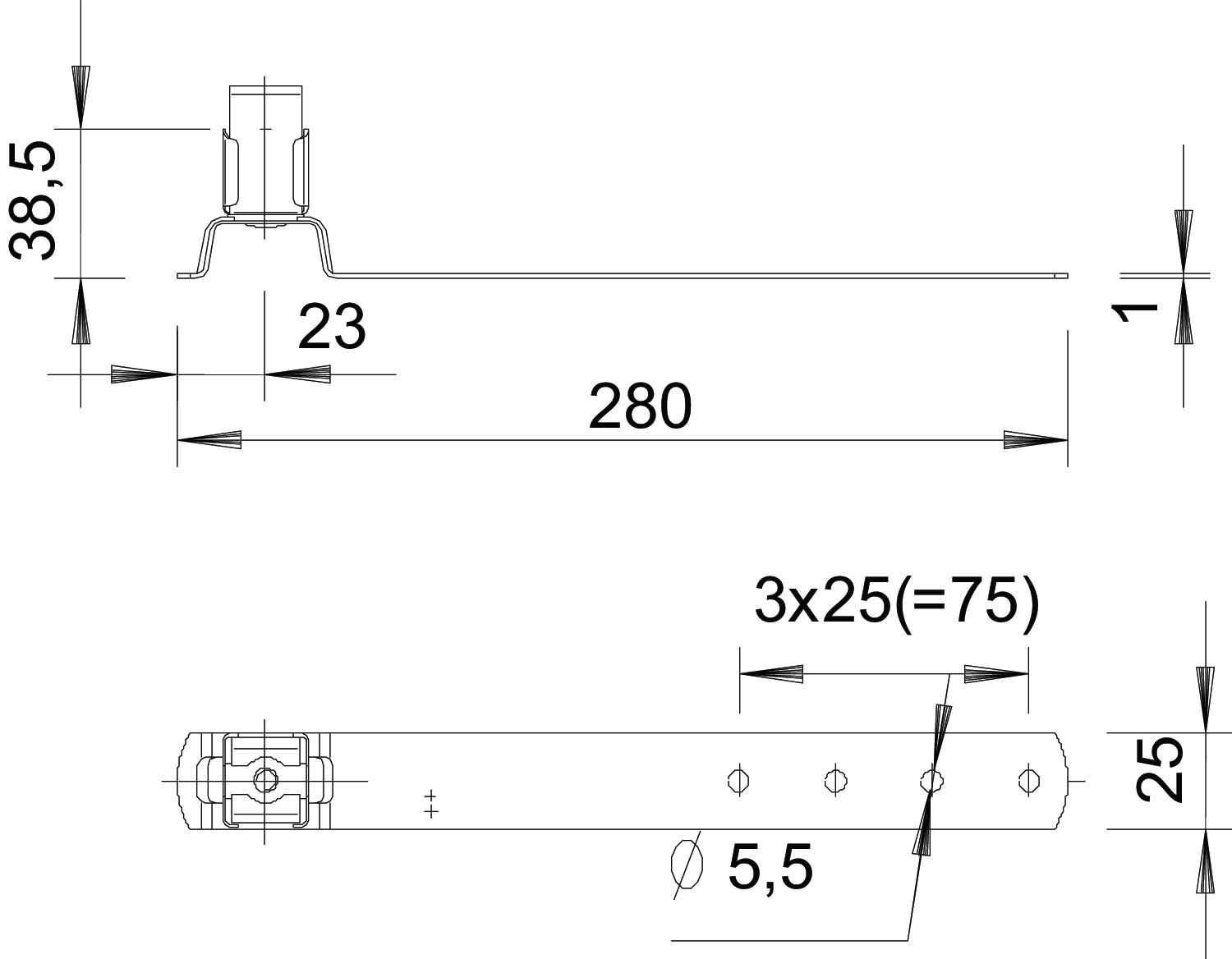

Application Roof surface Conductor diameter, max. 8 Conductor diameter, min. 8 Conductor fastening type With clip Dimension 8mm Dimension L 280 mm Fit Rd 8 mm Length 280 mm Material Stainless steel Mounting height 38,5 mm Mounting type Screw-on - All types
- Downloads
-
Data sheet 157 F-VA 280 / 5215579 , 0.18MB , pdfDeclaration of conformity 157 F-VA 280 / 5215579 , 0.06MB , pdf
