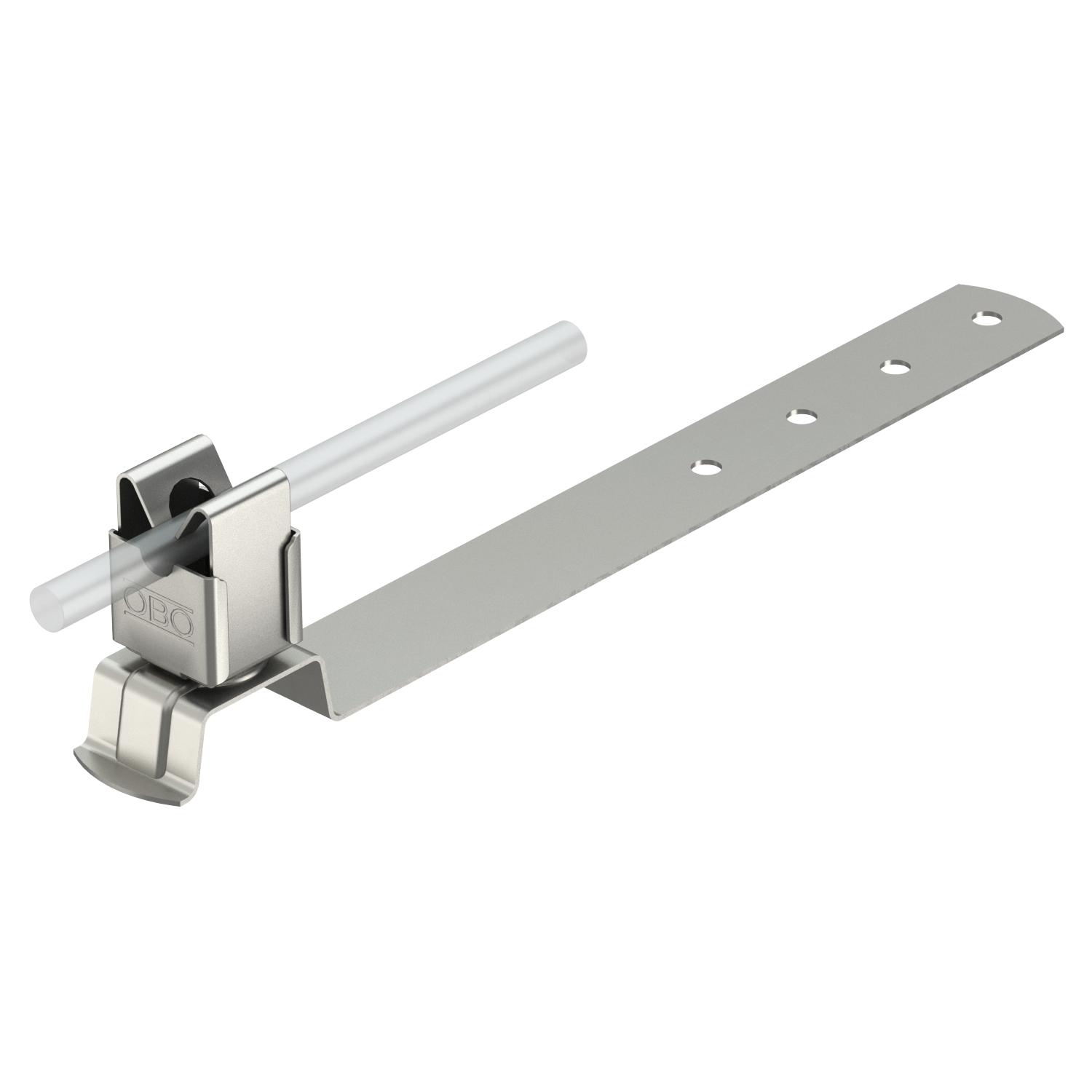

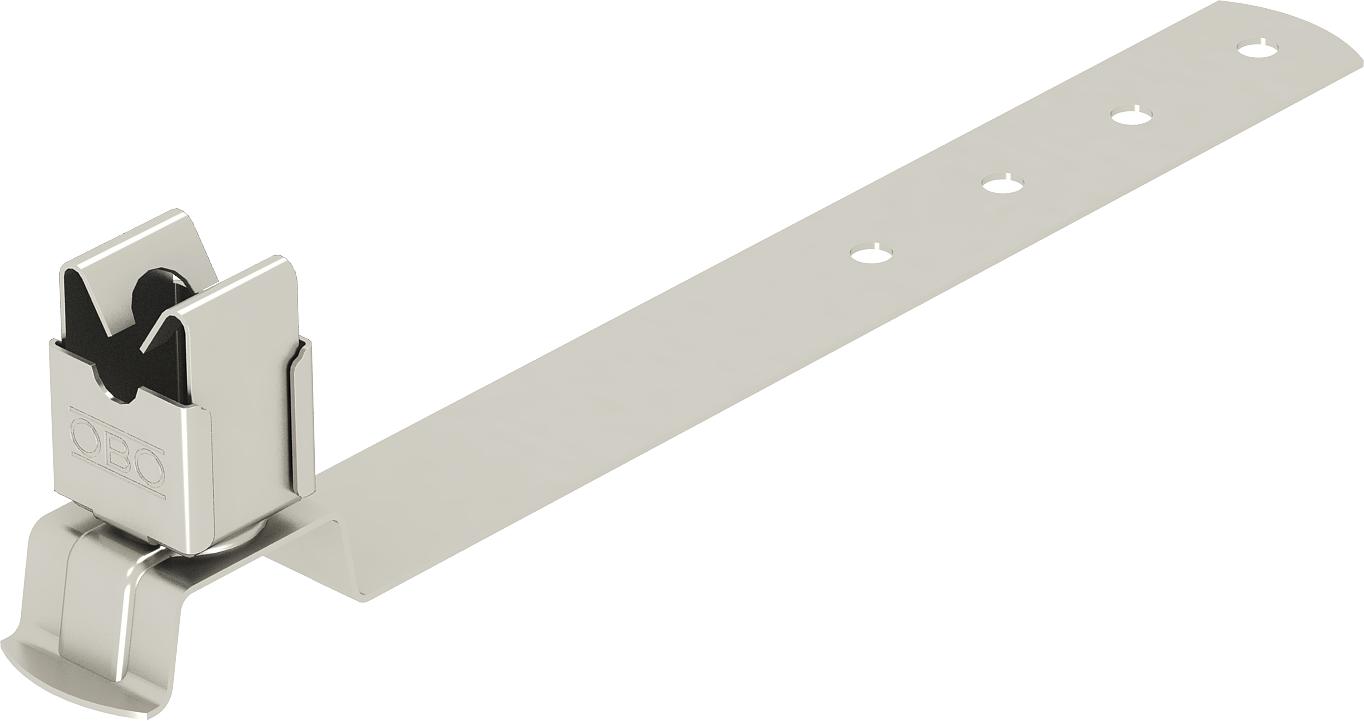

Roof conductor holder for tiled roofs, Rd 8
Item no. 5215552 | EAN 4012195407294
- Product description
-
Product description• Conductor holder from stainless steel (V2A)
• Including drill hole in bottom section for quick installation
- Technical data
-
Technical data

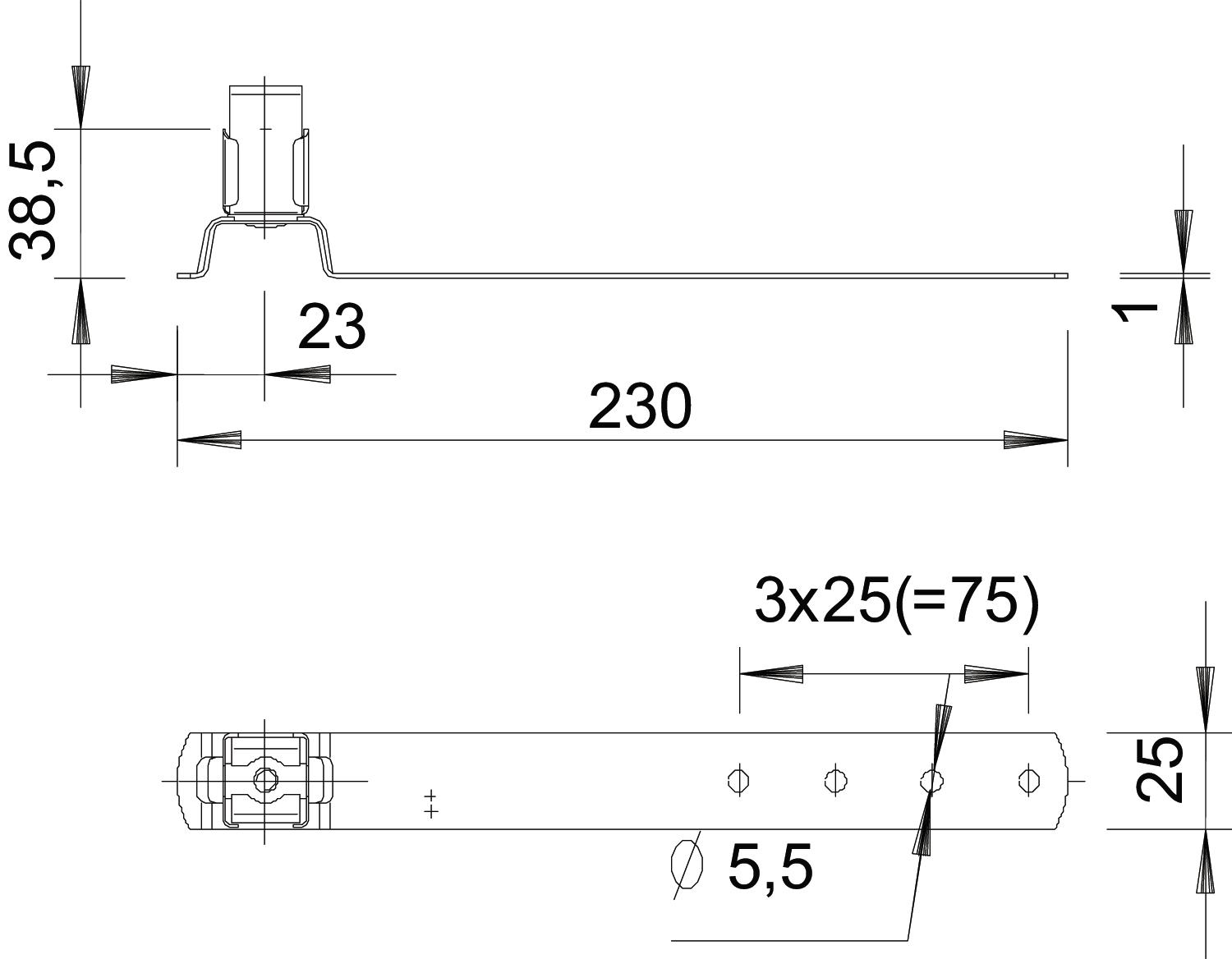

Application Roof surface Conductor diameter, max. 8 Conductor diameter, min. 8 Conductor fastening type With clip Dimension 8mm Dimension L 230 mm Fit Rd 8 mm Length 230 mm Material Stainless steel Mounting height 38,5 mm Mounting type Screw-on - All types
- Downloads
-
Data sheet 157 F-VA 230 / 5215552 , 0.18MB , pdfEU declaration of conformity 157 F-VA 230 / 5215552 , 0.06MB , pdfREACH Declaration of conformity 157 F-VA 230 / 5215552 , 0.12MB , pdfRoHS Declaration of conformity 157 F-VA 230 / 5215552 , 0.12MB , pdf
