Roof conductor holder for tiled roofs, angled, Rd 8−10 140 | Rd 8-10

morepic-1

morepic-2

Roof conductor holder for tiled roofs, angled, Rd 8−10

Item no. 5215668 | EAN 4012195812531

Item no. / Types	5215668 / 157 IK-VA

Length	140 mm

Fit	Rd 8-10 mm

Product description

Product description

• Conductor holder of polyamide
• Curved bottom strip for quick installation

Technical data

Technical data

Application	Roof surface
Conductor diameter, max.	10
Conductor diameter, min.	8
Conductor fastening type	With clamp clip
Dimension	8mm

Fit	Rd 8-10 mm
Length	140 mm
Material	Stainless steel
Mounting height	40 mm
Mounting type	For suspension

All types

All types

Types	Length	Fit	Item no.	Quantity	SSU
157 IK-VA	140 mm	Rd 8-10 mm	5215668	piece	20 piece

Downloads

Data sheet 157 IK-VA / 5215668 , 0.17MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Catalogue External lightning protection , 19.55MB , pdf

EU declaration of conformity 157 IK-VA / 5215668 , 0.06MB , pdf

Download

REACH Declaration of conformity 157 IK-VA / 5215668 , 0.12MB , pdf

Download

RoHS Declaration of conformity 157 IK-VA / 5215668 , 0.12MB , pdf

Download

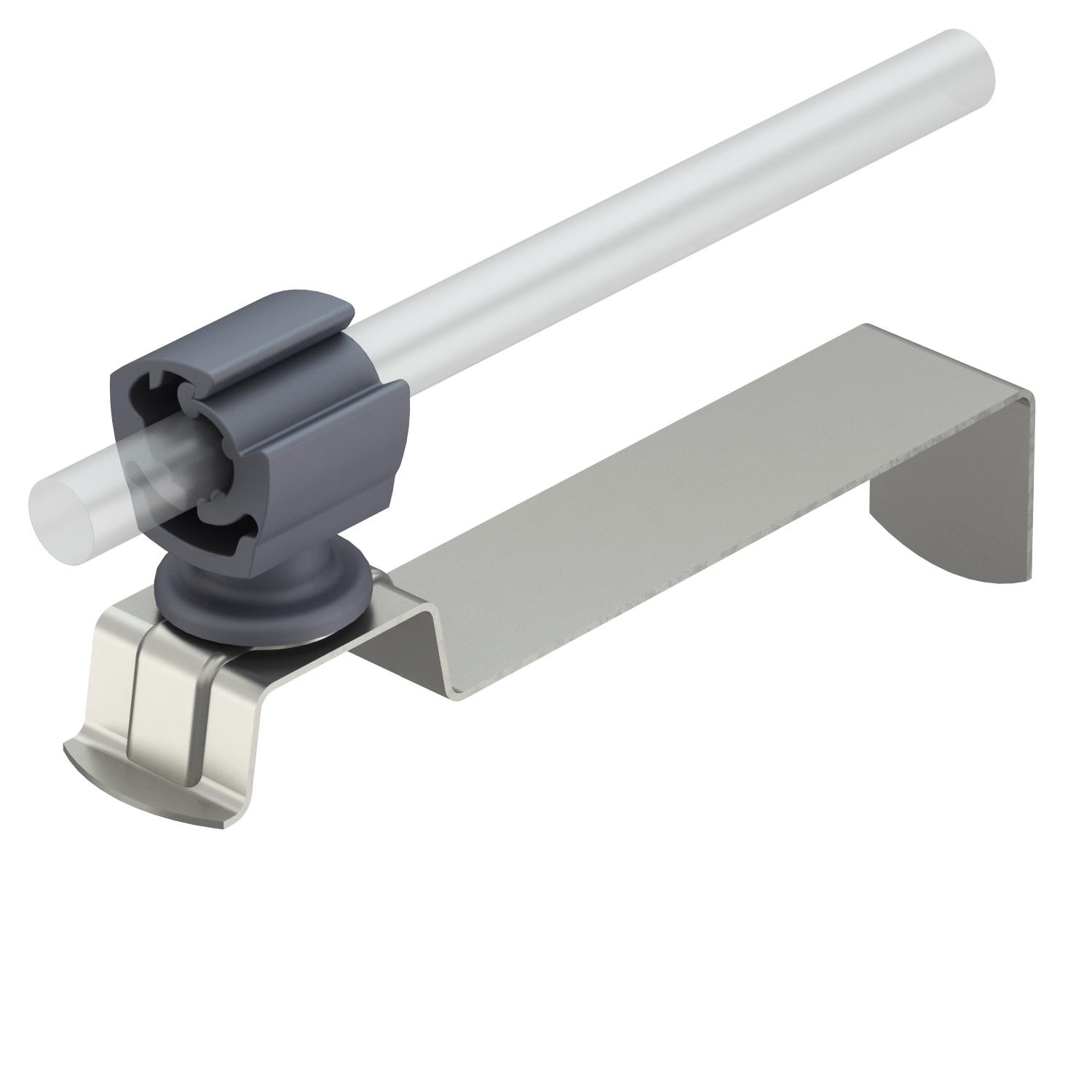

Product graphic 157 IK-VA / 5215668, 54.11 kB, jpg

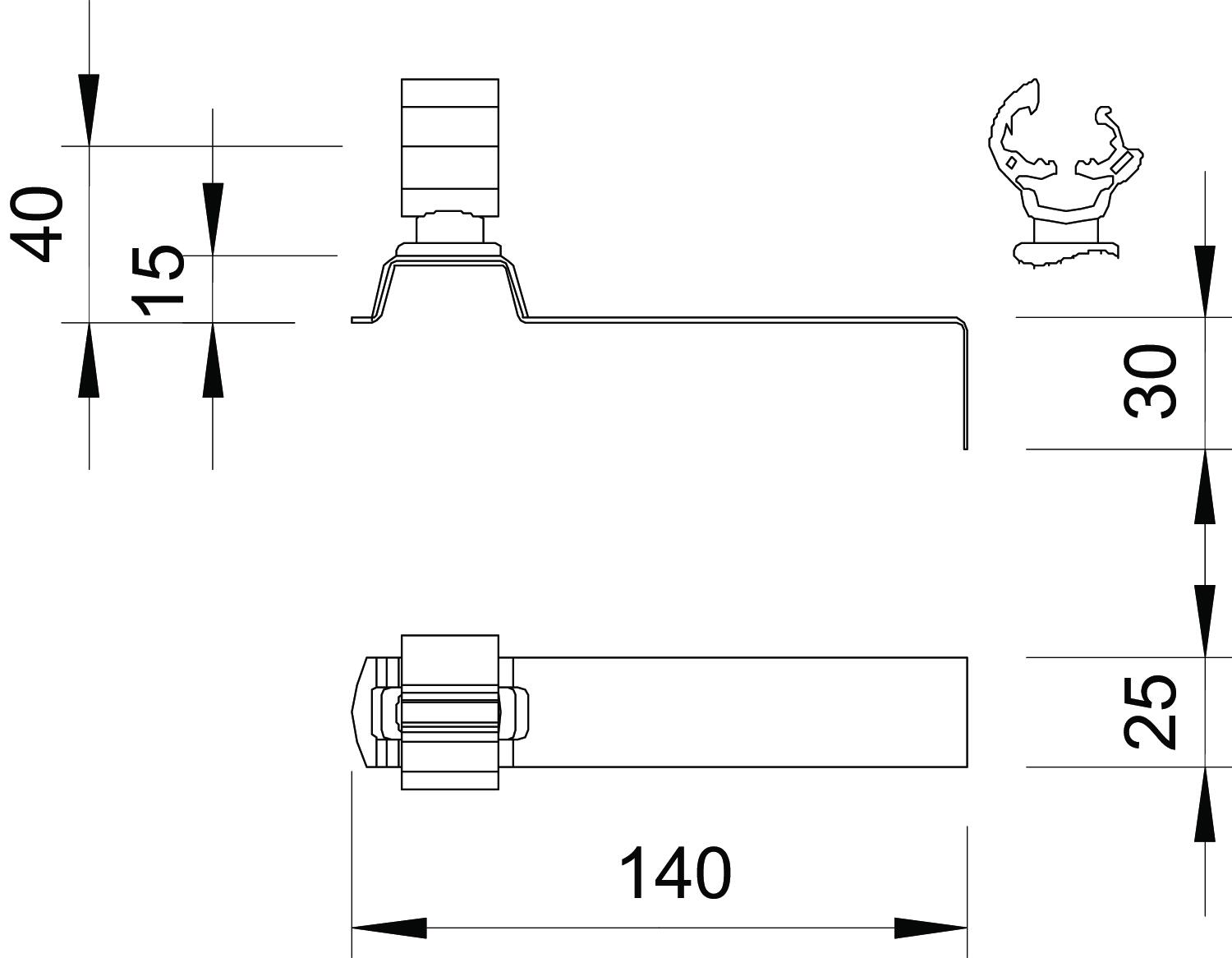

Scale drawing 157 IK-VA / 5215668, 57.73 kB, jpg
