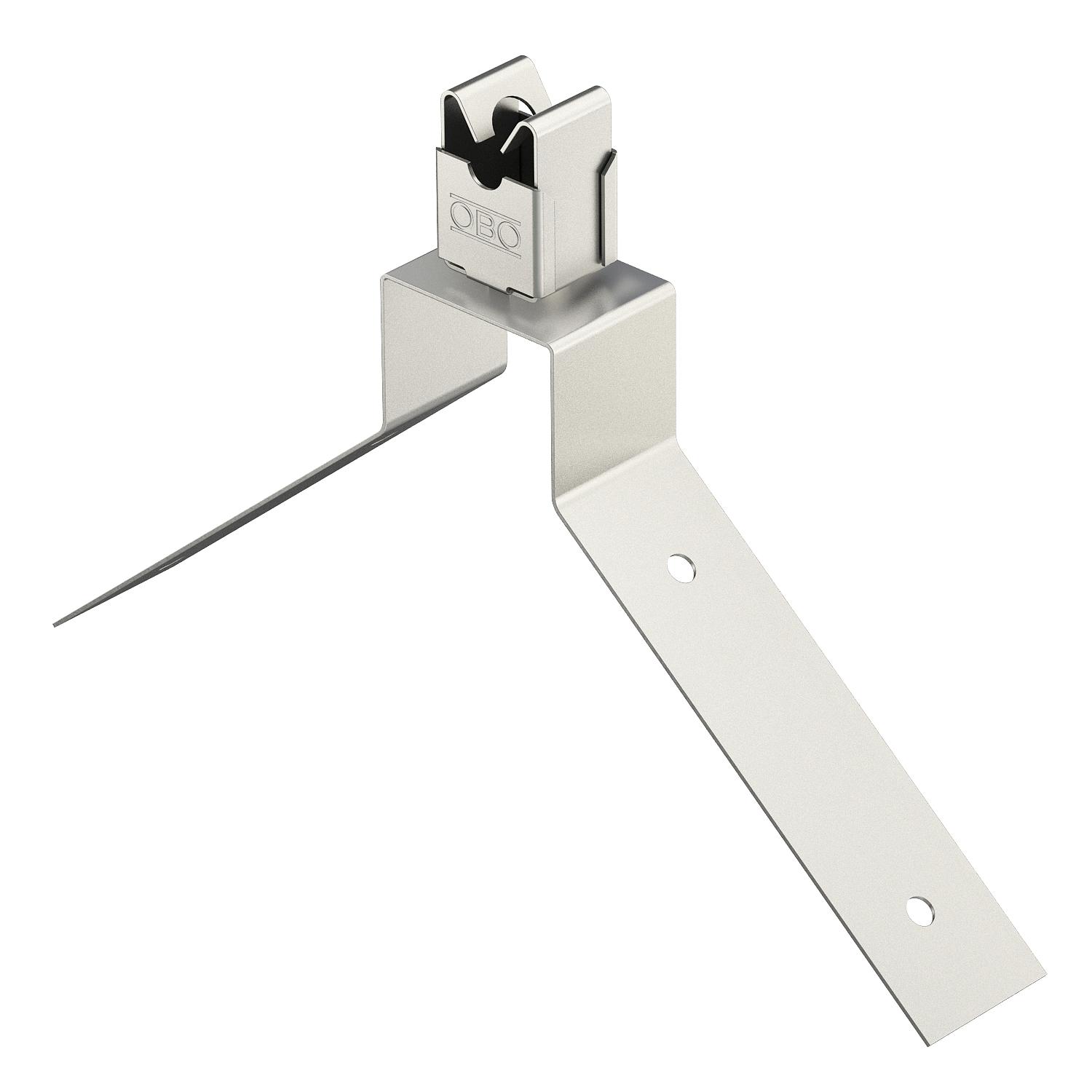

Roof conductor holder for ridge tiles, metal roofs, Rd 8
Item no. 5202510 | EAN 4012196379965
- Product description
-
Product description
• For round conductors Rd 8
• Suitable for metal roofs
- Technical data
-

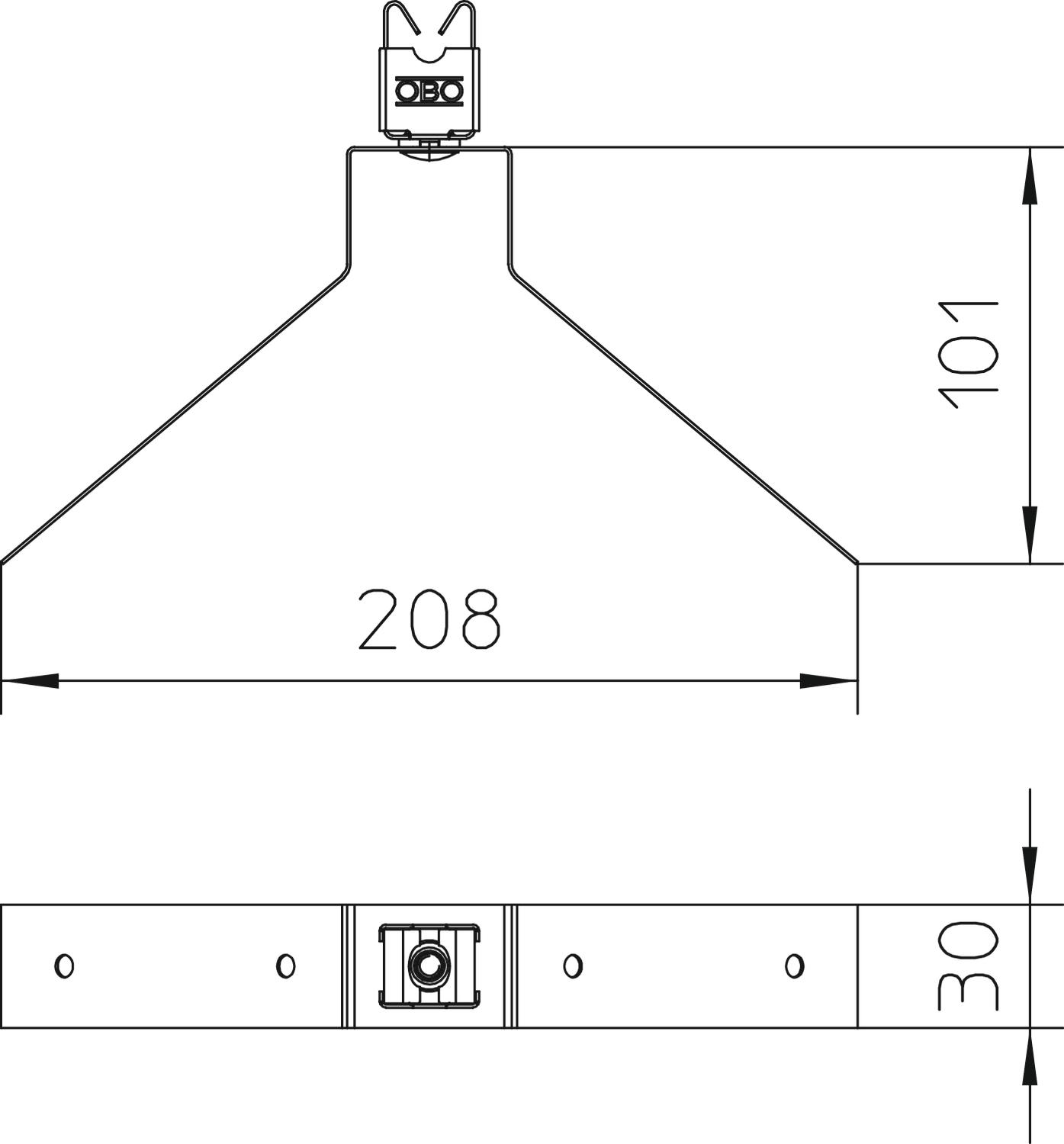

Technical data
Application Ridge Clamping range D, max. 8 mm Clamping range D, min. 8 mm Colour Stainless steel Conductor diameter, max. 8 Conductor diameter, min. 8 Conductor fastening type With clip Dimension 8mm Fit Rd 8 mm Material Stainless steel Mounting height 20 mm Mounting type Tensionable - All types
- Downloads
-
Data sheet 132 P VA / 5202510 , 0.13MB , pdfDeclaration of conformity 132 P VA / 5202510 , 0.06MB , pdfREACH Declaration of conformity 132 P VA / 5202510 , 0.12MB , pdfRoHS Declaration of conformity 132 P VA / 5202510 , 0.12MB , pdf
