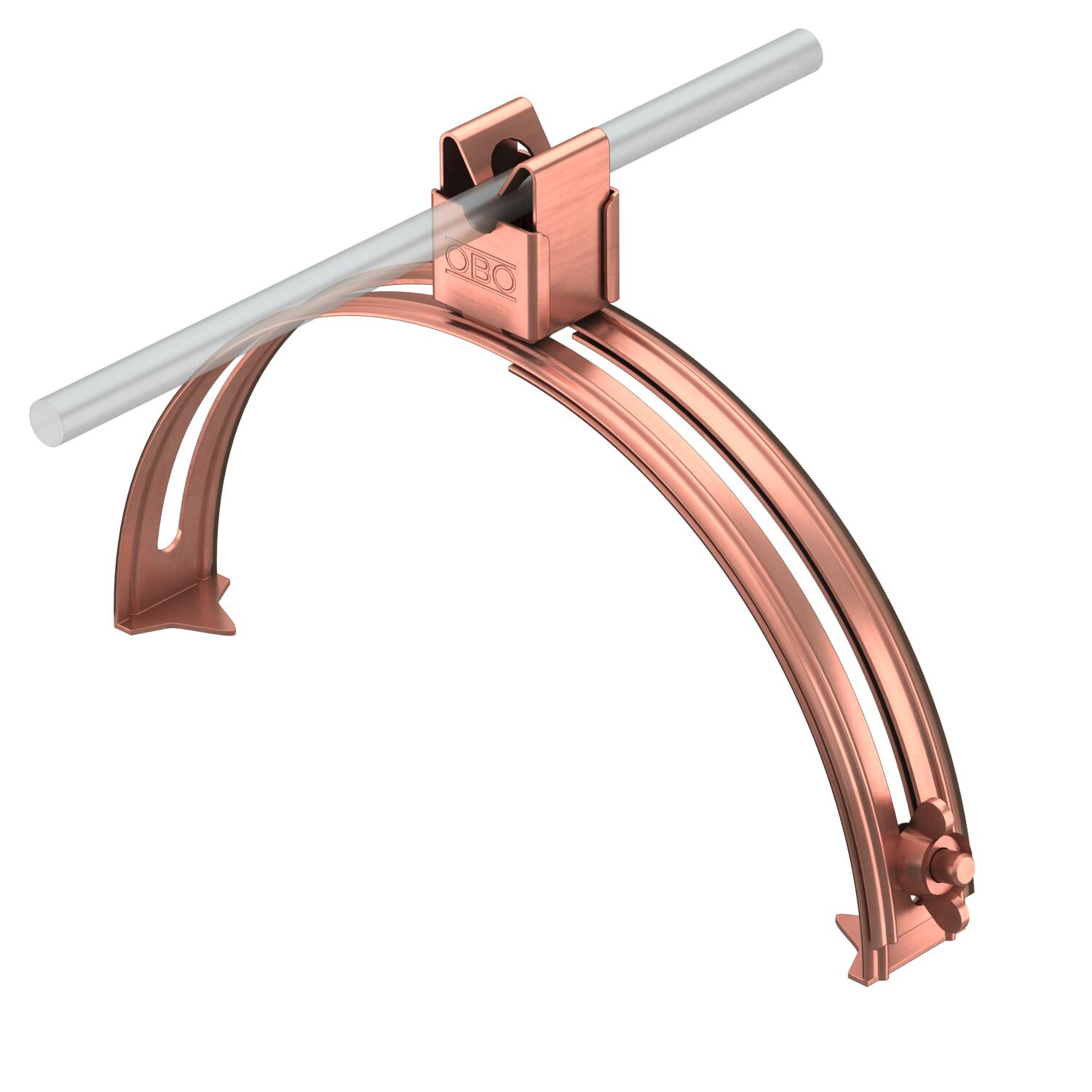

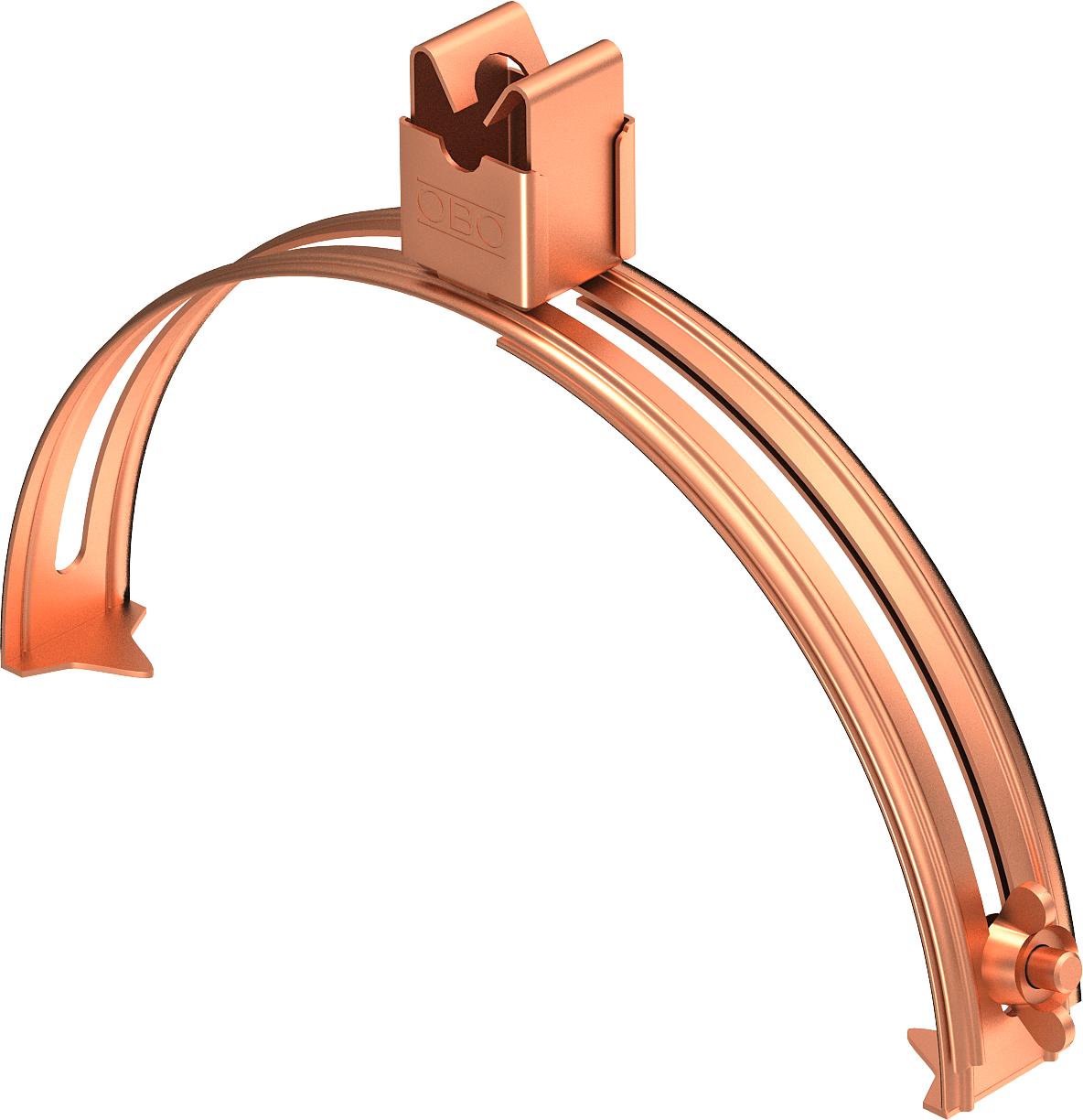

Roof conductor holder for ridge tiles, 185−260 mm, Rd 8 CU
Item no. 5202868 | EAN 4012195902171
- Product description
-
Product description

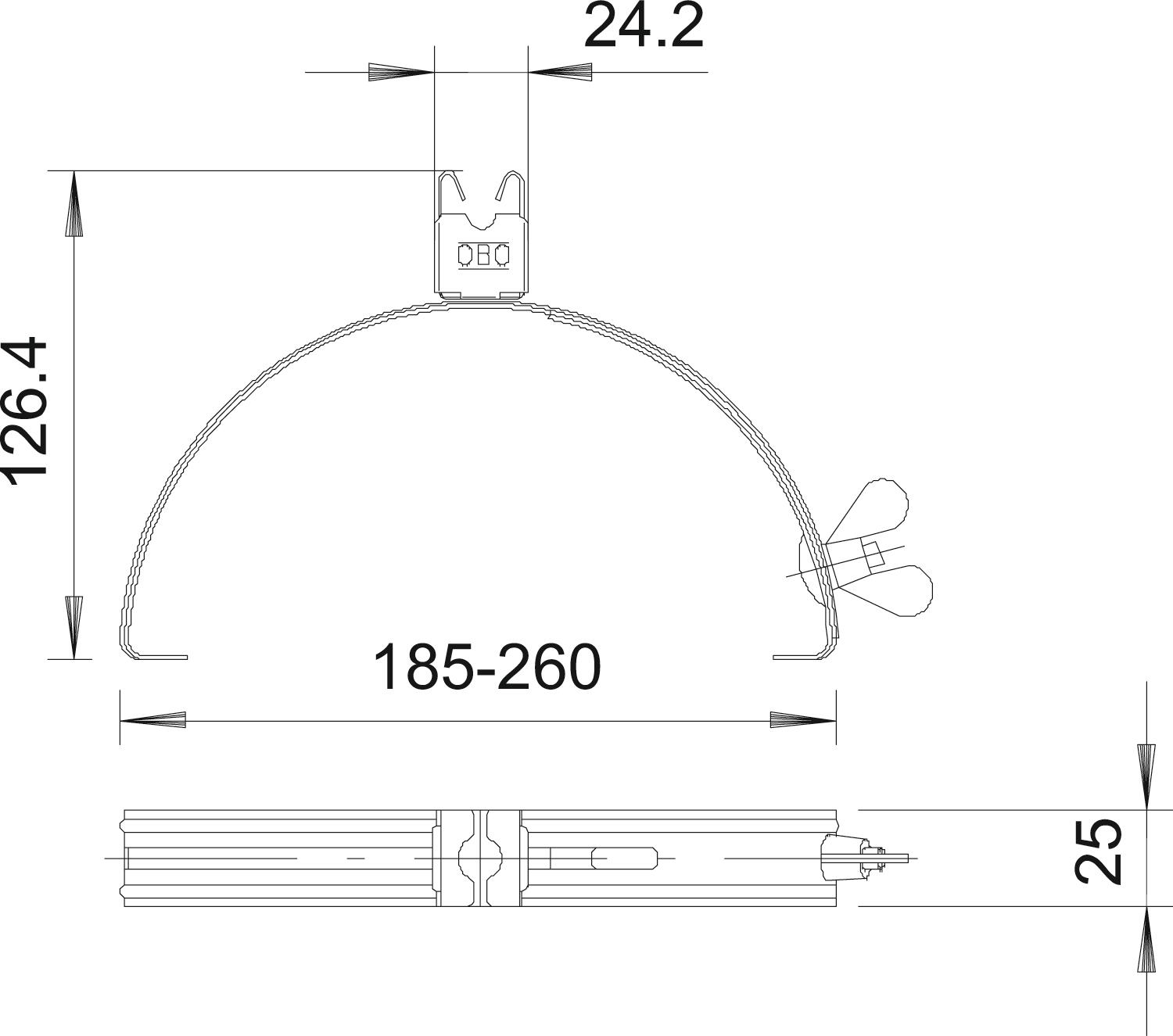

• Adjustable width from 185-260 mm
• Fast installation using wing screw
- Technical data
-
Technical data
Application Ridge Clamping range D, max. 260 mm Clamping range D, min. 185 mm Conductor diameter, max. 8 Conductor diameter, min. 8 Conductor fastening type With clip Dimension 8mm Fit Rd 8 mm Material Copper Mounting height 20 mm Mounting type Tensionable - All types
- Downloads
-
Data sheet 132 CU / 5202868 , 0.19MB , pdfDeclaration of conformity 132 CU / 5202868 , 0.06MB , pdfREACH Declaration of conformity 132 CU / 5202868 , 0.12MB , pdfRoHS Declaration of conformity 132 CU / 5202868 , 0.12MB , pdf
