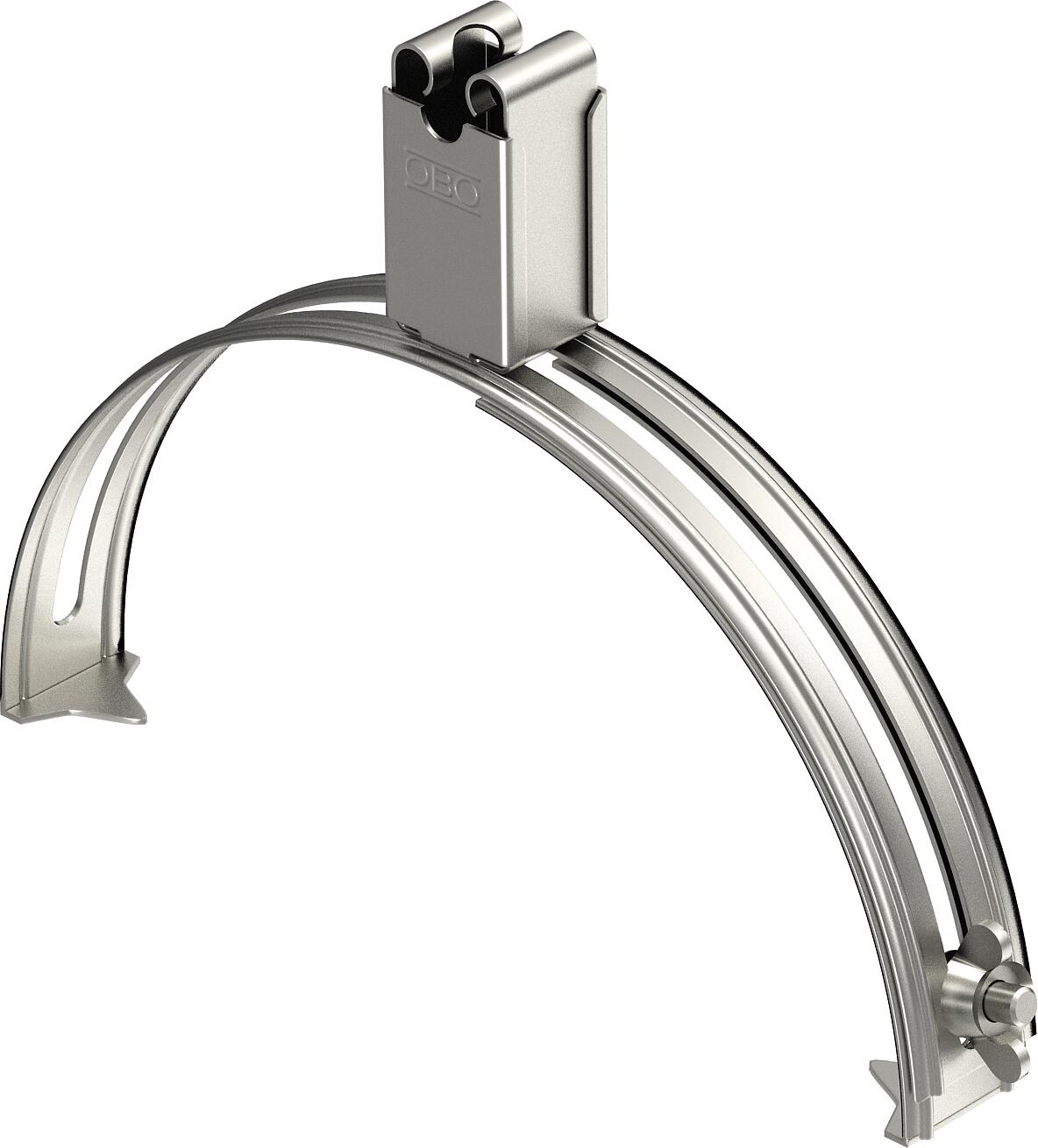

Roof conductor holder for ridge tiles, 185−260 mm, Rd 8, A2
Item no. 5202836 | EAN 4012195784920
- Product description
-
Product description

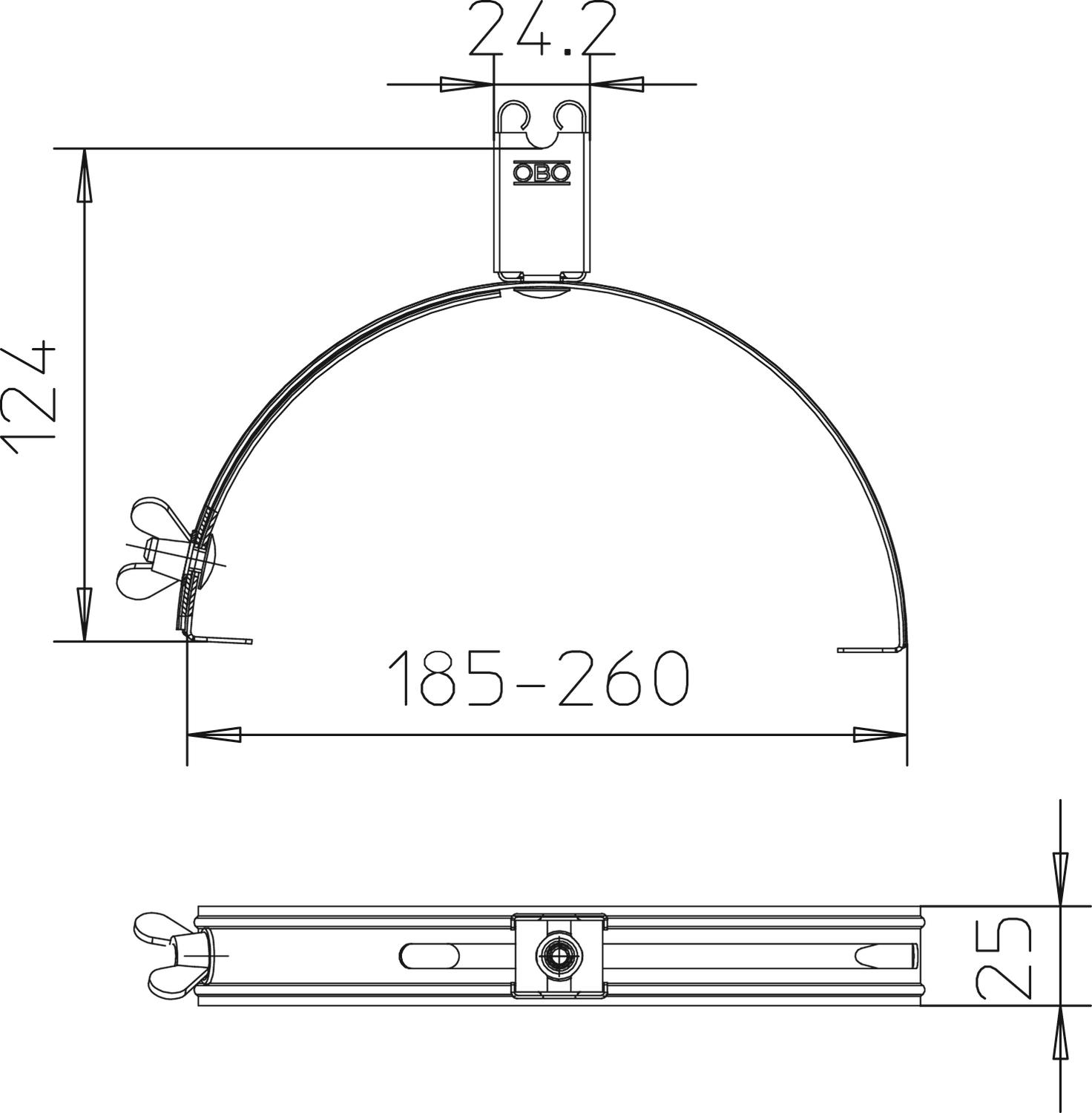

• Adjustable width from 185-260 mm
• Fast installation using wing screw
- Technical data
-
Technical data
Application Ridge Clamping range D, max. 260 mm Clamping range D, min. 185 mm Conductor diameter, max. 8 Conductor diameter, min. 8 Conductor fastening type With clip Dimension 35 mm Fit Rd 8 mm Material Stainless steel Mounting height 35 mm Mounting type Tensionable - All types
- Downloads
-
Data sheet 132 VA 35 / 5202836 , 0.17MB , pdfDeclaration of conformity 132 VA 35 / 5202836 , 0.06MB , pdf
