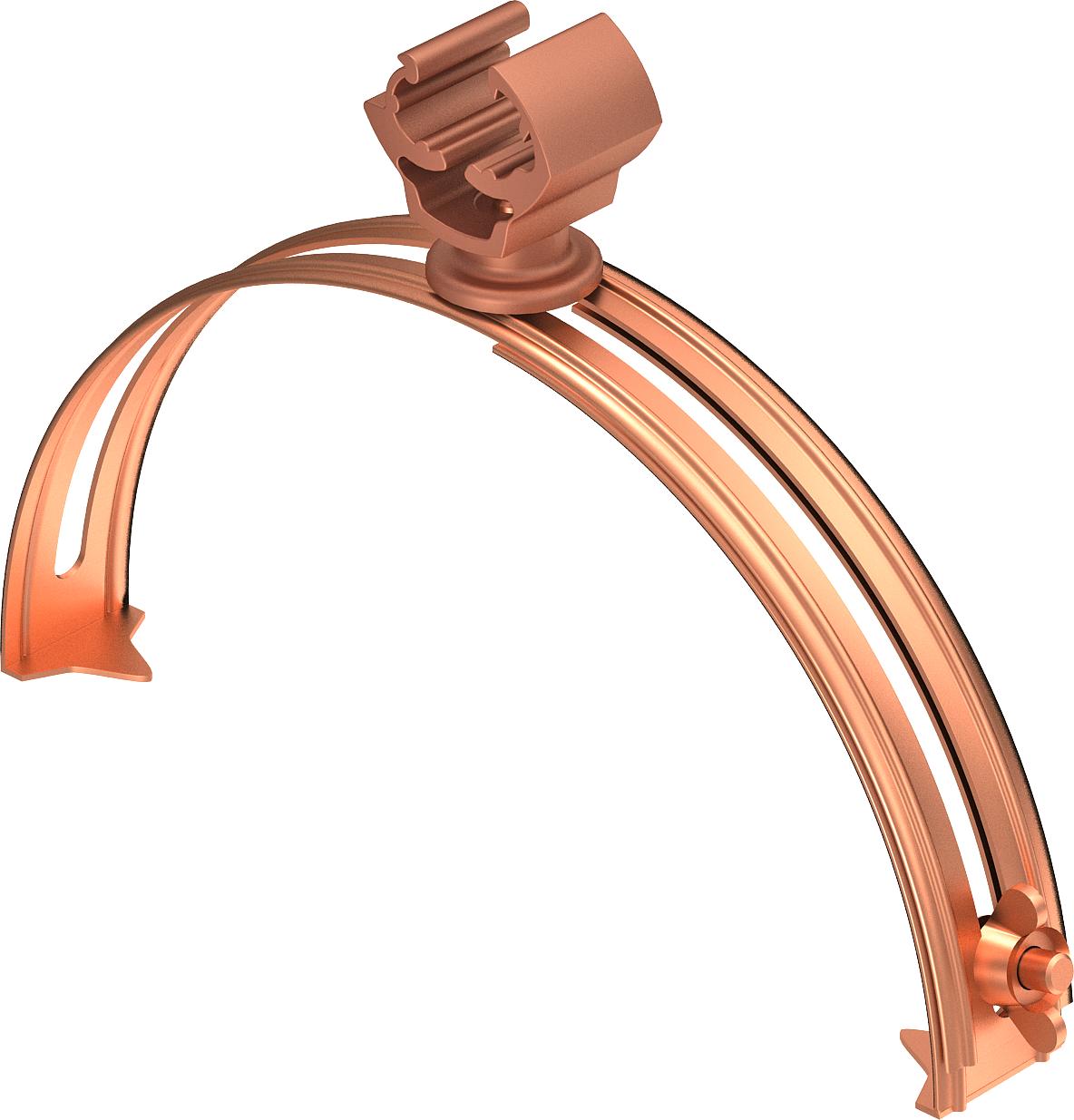

Roof conductor holder for ridge tiles, 185−260 mm, Rd 8–10, CU
Item no. 5202590 | EAN 4012195902232
- Product description
-
Product description132/..: Roof conductor holder for ridge tiles

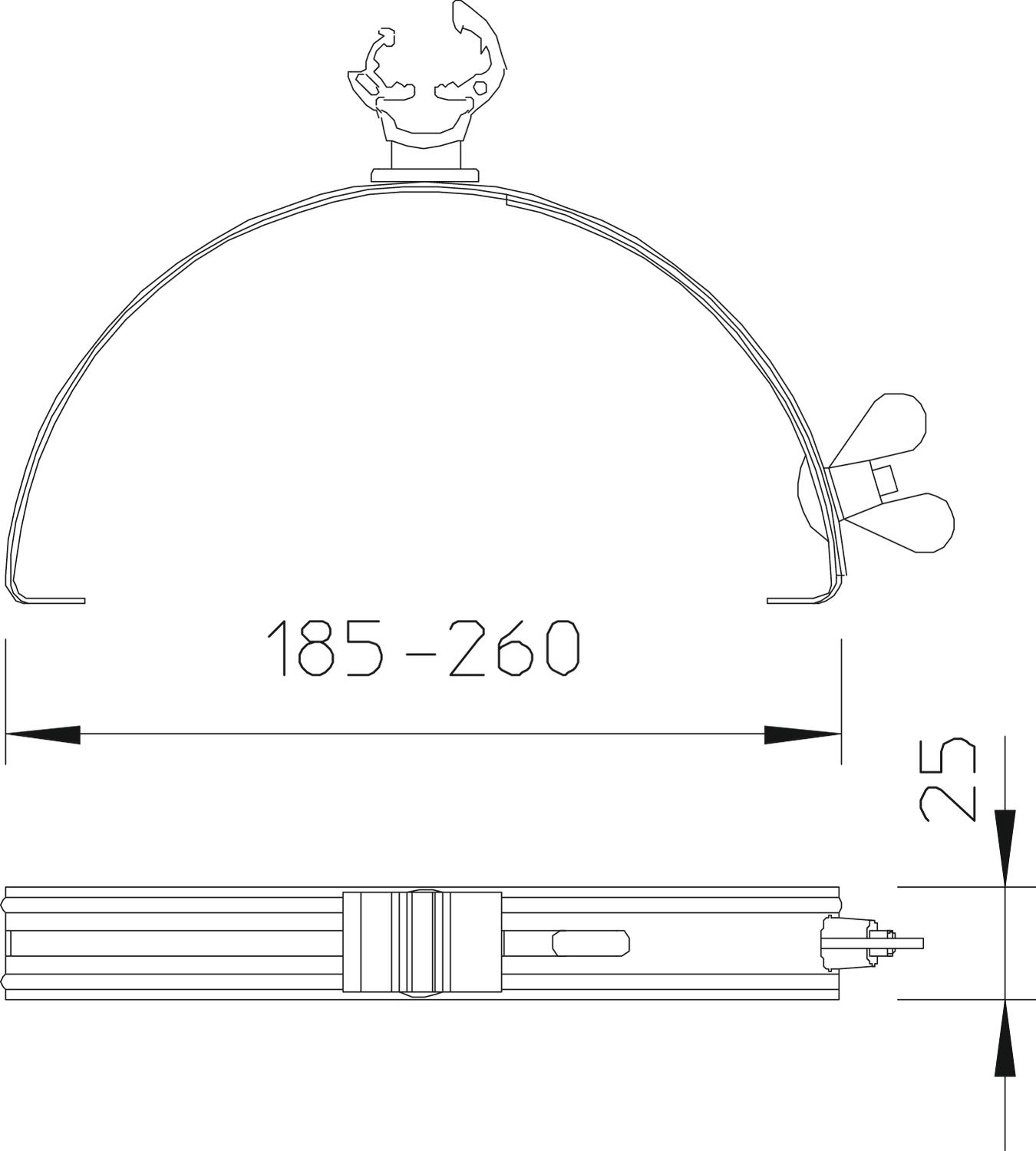

• Adjustable width from 185-260 mm
• Bottom part made of non-rusting stainless steel (V2A)
or of copper
• Infinitely adjustable conductor holder
• Conductor holder of polyamide

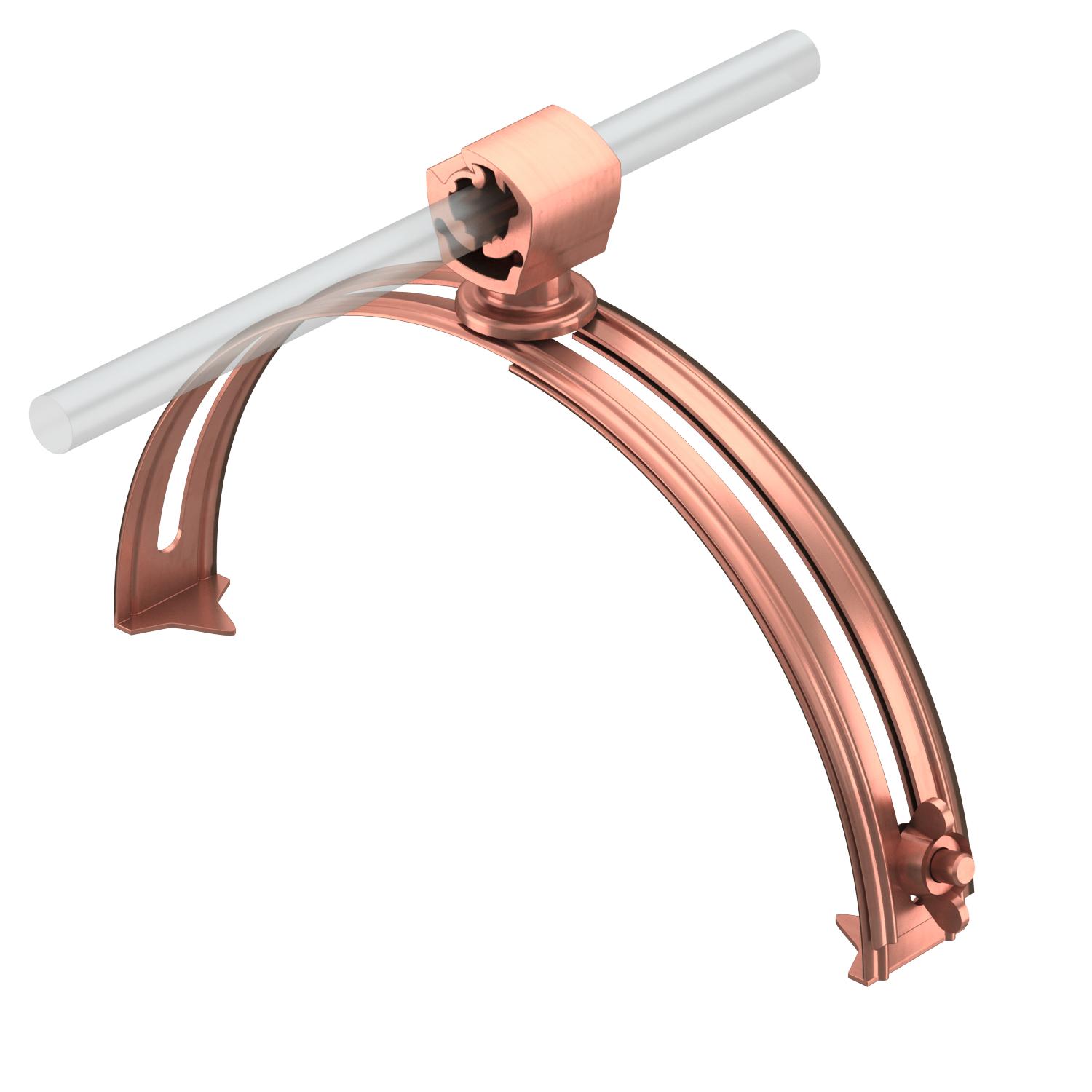

• For round conductor Rd 8-10
• Fast installation using wing screw
- Technical data
-
Technical data
Application Ridge Clamping range D, max. 260 mm Clamping range D, min. 185 mm Conductor diameter, max. 10 Conductor diameter, min. 8 Conductor fastening type With clamp clip Dimension 8mm Fit Rd 8-10 mm Material Copper Mounting height 20 mm Mounting type Tensionable - All types
- Downloads
-
Data sheet 132 K-CU / 5202590 , 0.19MB , pdfEU declaration of conformity 132 K-CU / 5202590 , 0.06MB , pdfREACH Declaration of conformity 132 K-CU / 5202590 , 0.12MB , pdfRoHS Declaration of conformity 132 K-CU / 5202590 , 0.12MB , pdf
