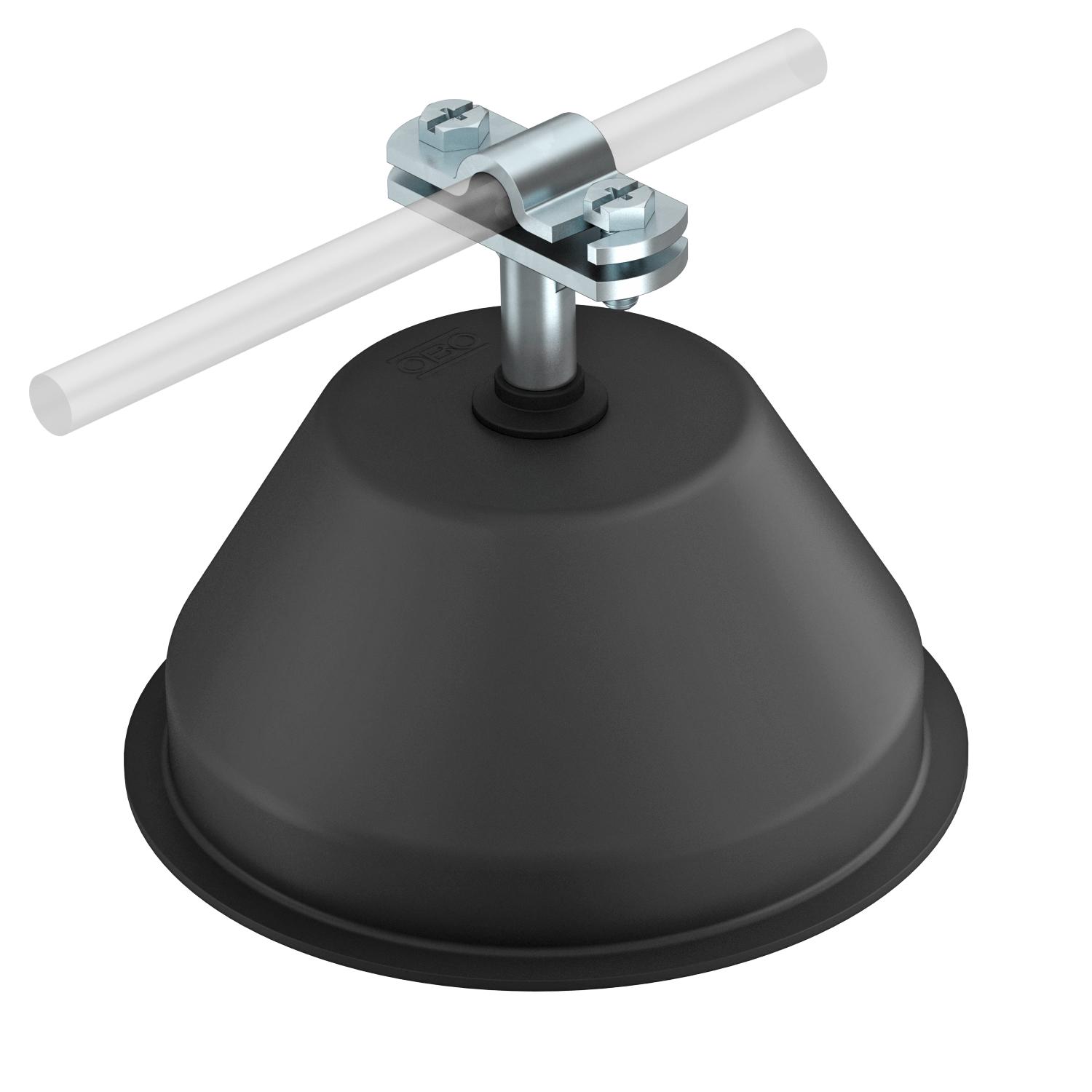

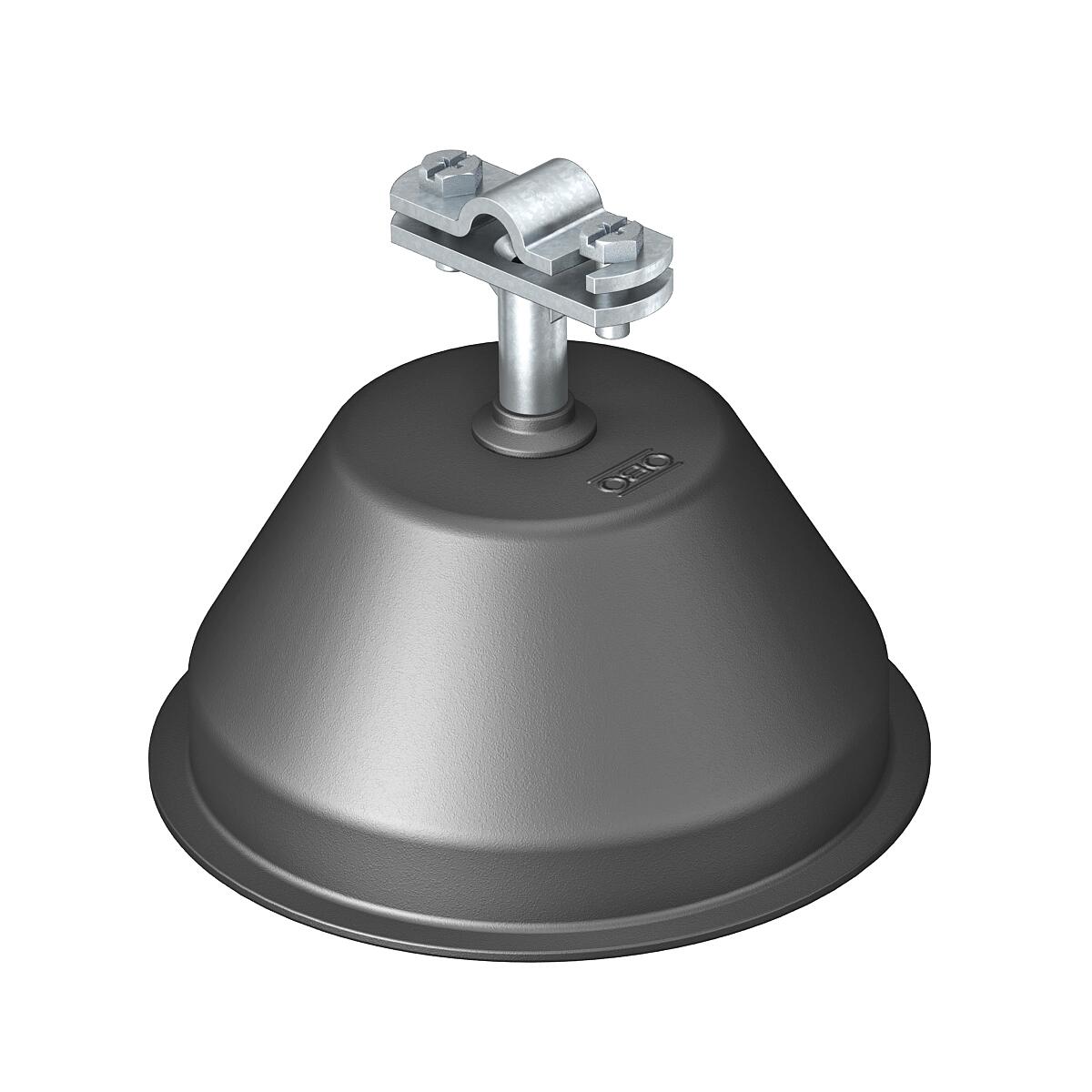

Roof conductor holder for flat roofs, with raised cable bracket
Item no. 5218977 | EAN 4012195952213
- Product description
-
Product description
• Filling weight 1 kg (frost-resistant concrete)
• With conductor holder, type 168 DIN-K
• Die-cast zinc conductor holder, electrogalvanised
• Polyethylene sleeve, black
- Technical data
-
Technical data

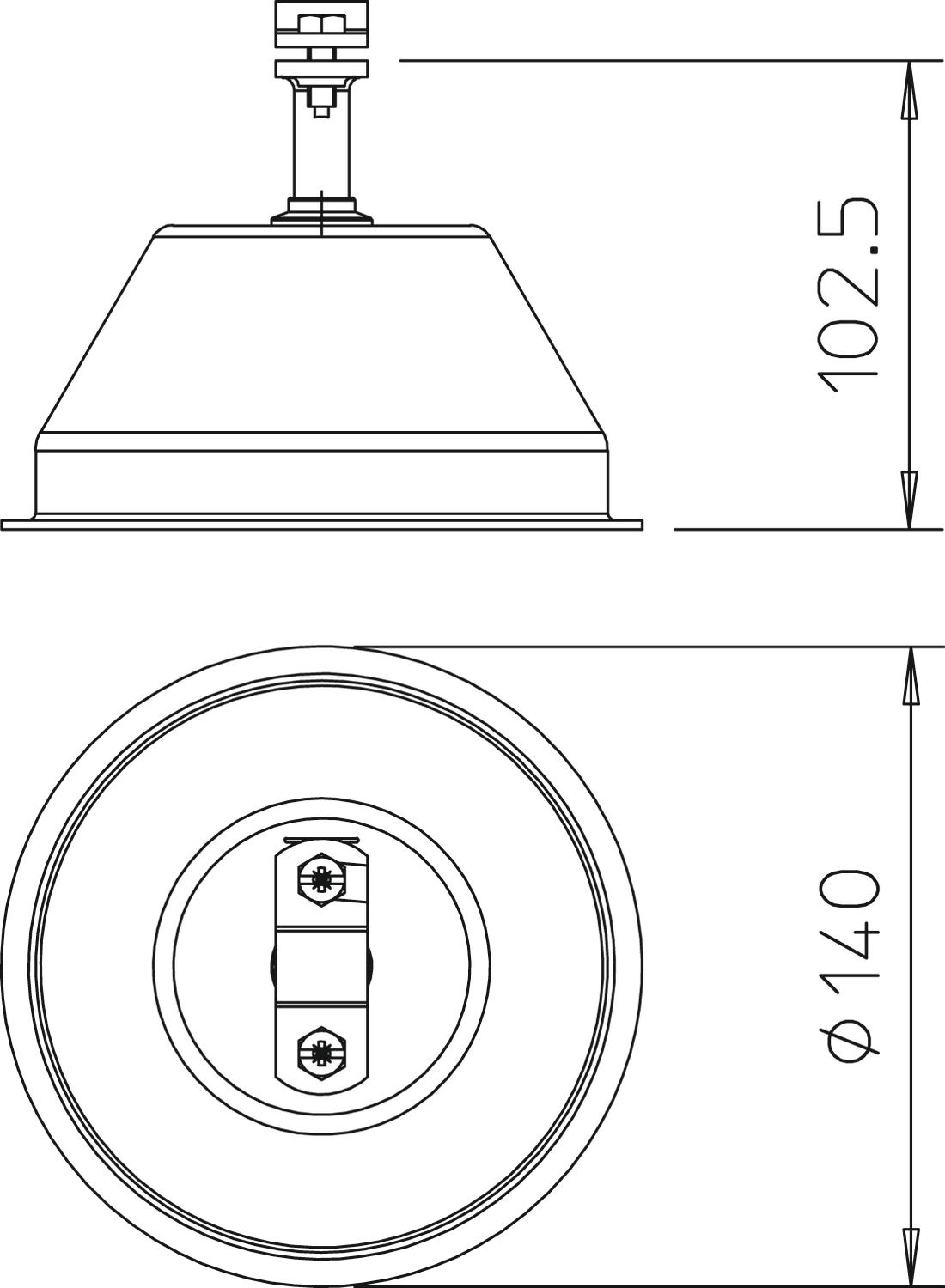

Conductor diameter, max. 10 Conductor diameter, min. 8 Dimension 8mm Fit Rd 8-10 mm Dimensions
Length 140 mm - All types
- Downloads
-
Data sheet 165 KRB SO / 5218977 , 0.19MB , pdf
