Roof cable holder for slated roofs, Rd 8, CU 212 | 32 | Rd 8

morepic-1

morepic-2

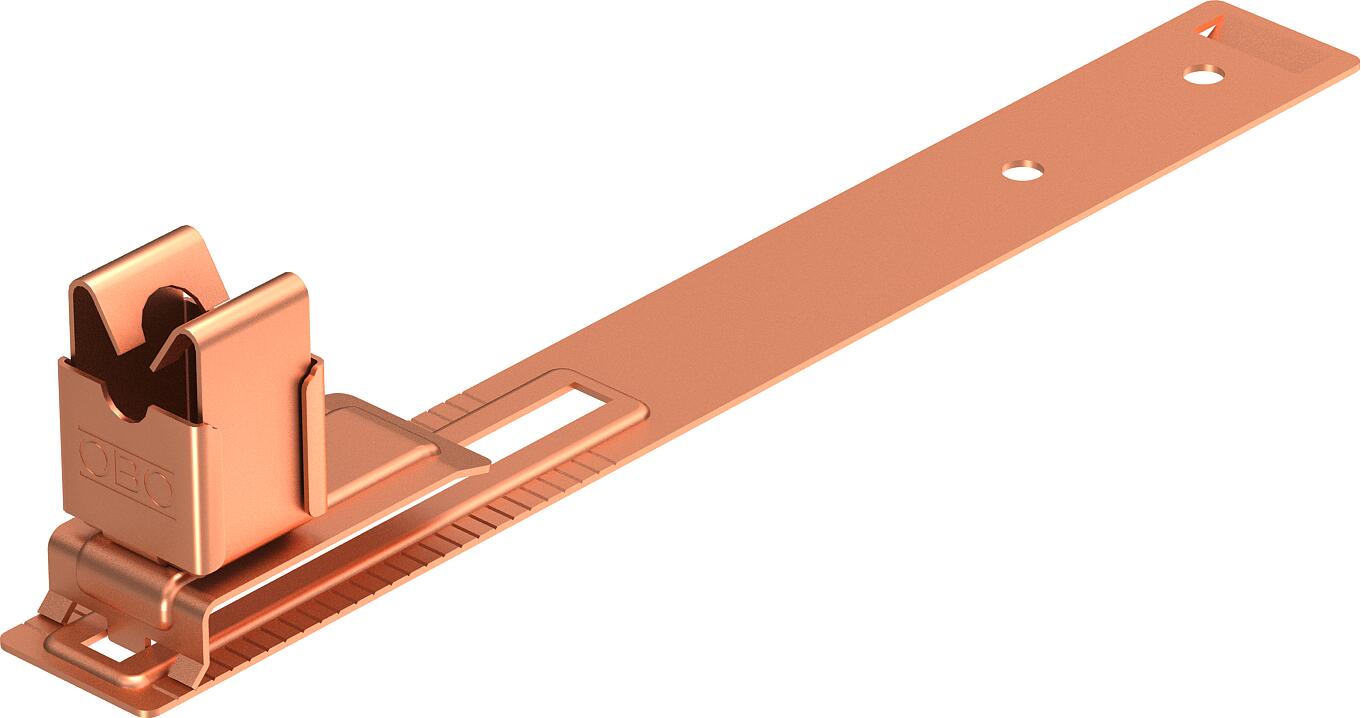

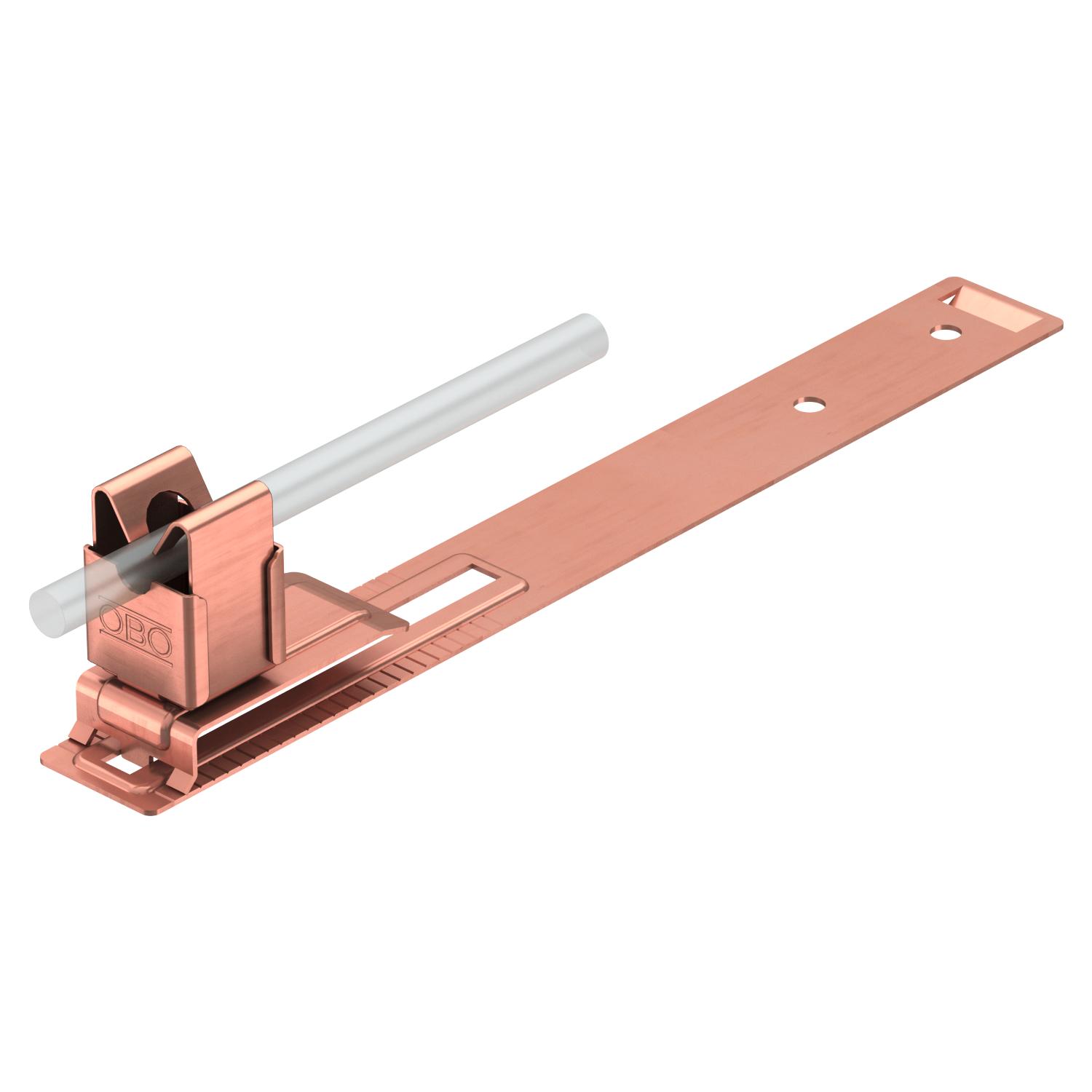

Roof cable holder for slated roofs, Rd 8, CU

Item no. 5215471 | EAN 4012195812111

Item no. / Types	5215471 / 157 L-CU

Length	212 mm

Mounting height	32 mm

Fit	Rd 8 mm

Product description

Product description

• With Ø 5.5 mm drill hole and beading

Technical data

Technical data

Application	Roof surface
Conductor diameter, max.	8
Conductor diameter, min.	8
Conductor fastening type	With clip
Dimension	210mm

Fit	Rd 8 mm
Length	212 mm
Material	Copper
Mounting height	32 mm
Mounting type	Screw-on

All types

All types

Types	Length	Mounting height	Fit	Item no.	Quantity	SSU
157 L-CU	212 mm	32 mm	Rd 8 mm	5215471	piece	10 piece

Downloads

Data sheet 157 L-CU / 5215471 , 0.16MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Catalogue External lightning protection , 19.55MB , pdf

Declaration of conformity 157 L-CU / 5215471 , 0.06MB , pdf

Download

Product graphic 157 L-CU / 5215471, 61.29 kB, jpg

Scale drawing 157 L-CU / 5215471, 56.40 kB, jpg

No invitation to tender text is available for this product.

Fangeinrichtungs_Dachleitungshalter_für_Schieferdächer_Rd 8.rfa, 732.00 kB
