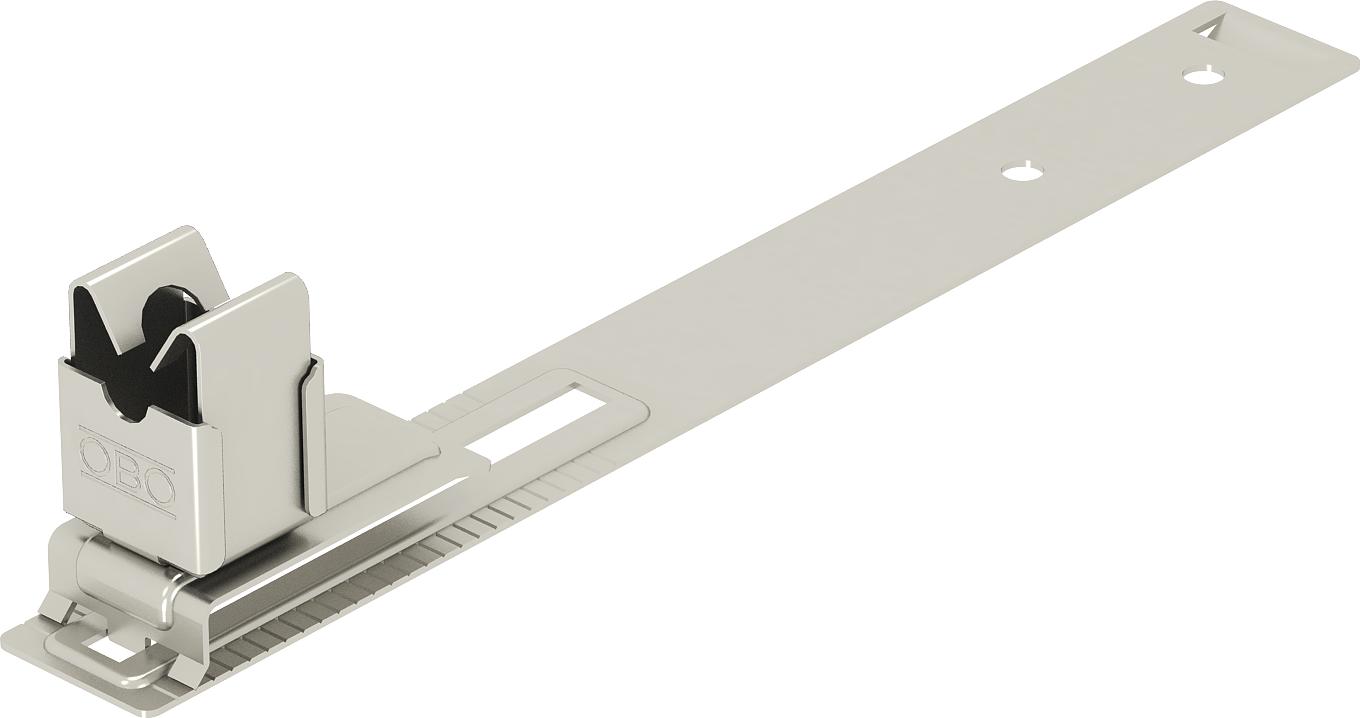

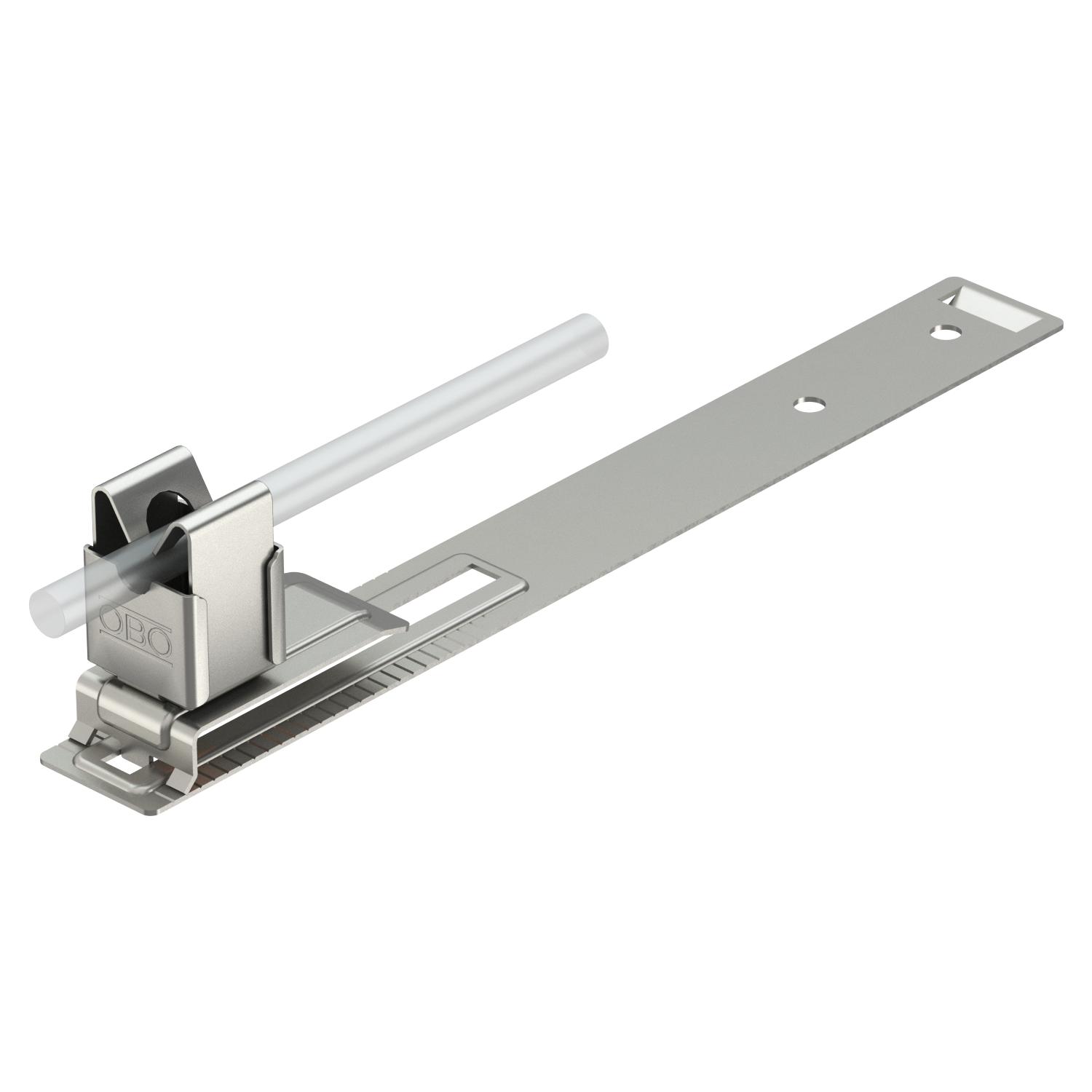

Roof cable holder for slated roofs, Rd 8, A2
Item no. 5215439 | EAN 4012195407171
- Product description
-
Product description
• With Ø 5.5 mm drill hole and beading
- Technical data
-
Technical data

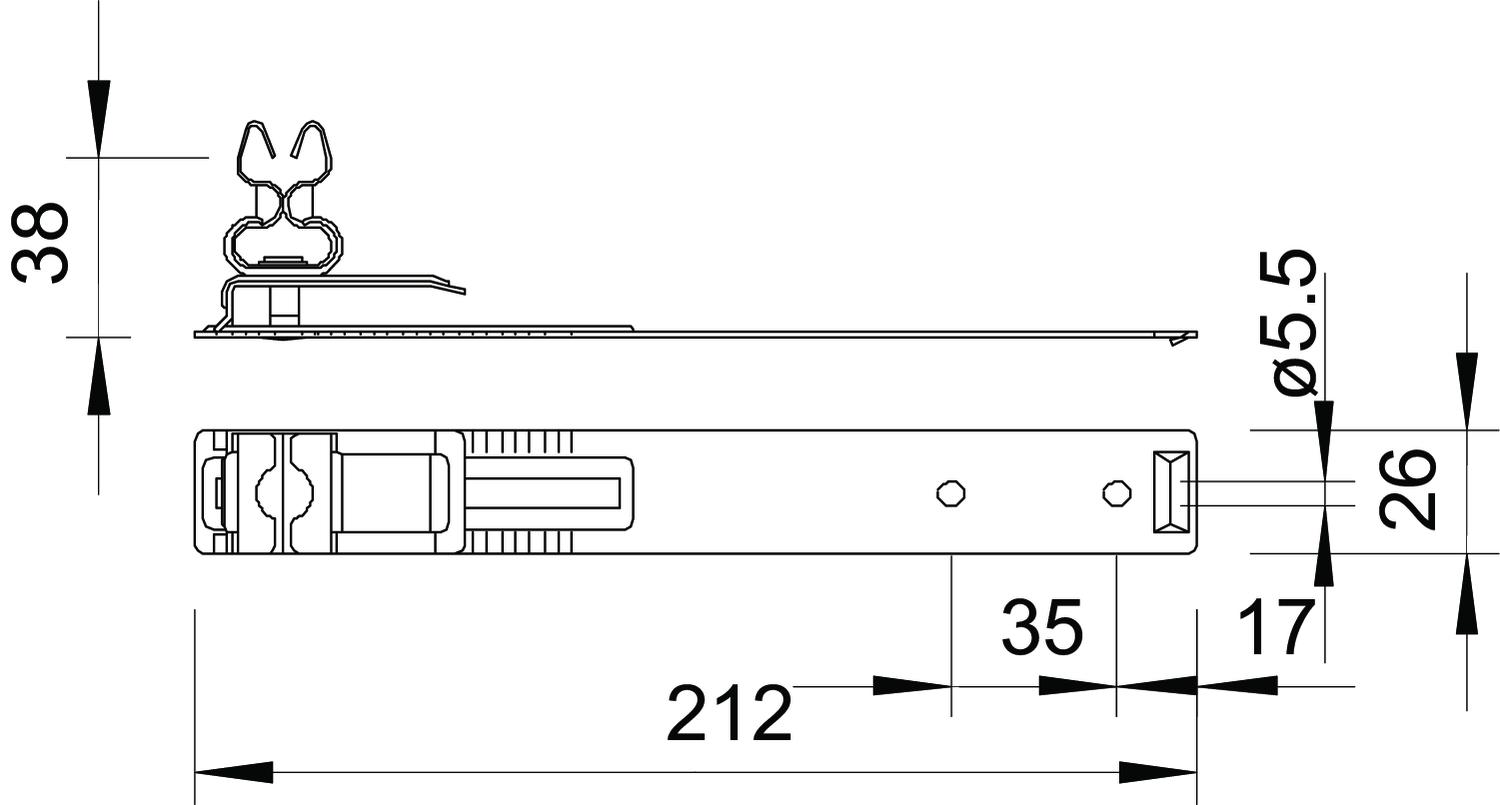

Application Roof surface Conductor diameter, max. 8 Conductor diameter, min. 8 Conductor fastening type With clip Dimension 210mm Fit Rd 8 mm Length 212 mm Material Stainless steel Mounting height 32 mm Mounting type Screw-on - All types
- Downloads
-
Data sheet 157 L-VA / 5215439 , 0.17MB , pdfDeclaration of conformity 157 L-VA / 5215439 , 0.06MB , pdfREACH Declaration of conformity 157 L-VA / 5215439 , 0.12MB , pdfRoHS Declaration of conformity 157 L-VA / 5215439 , 0.12MB , pdf
