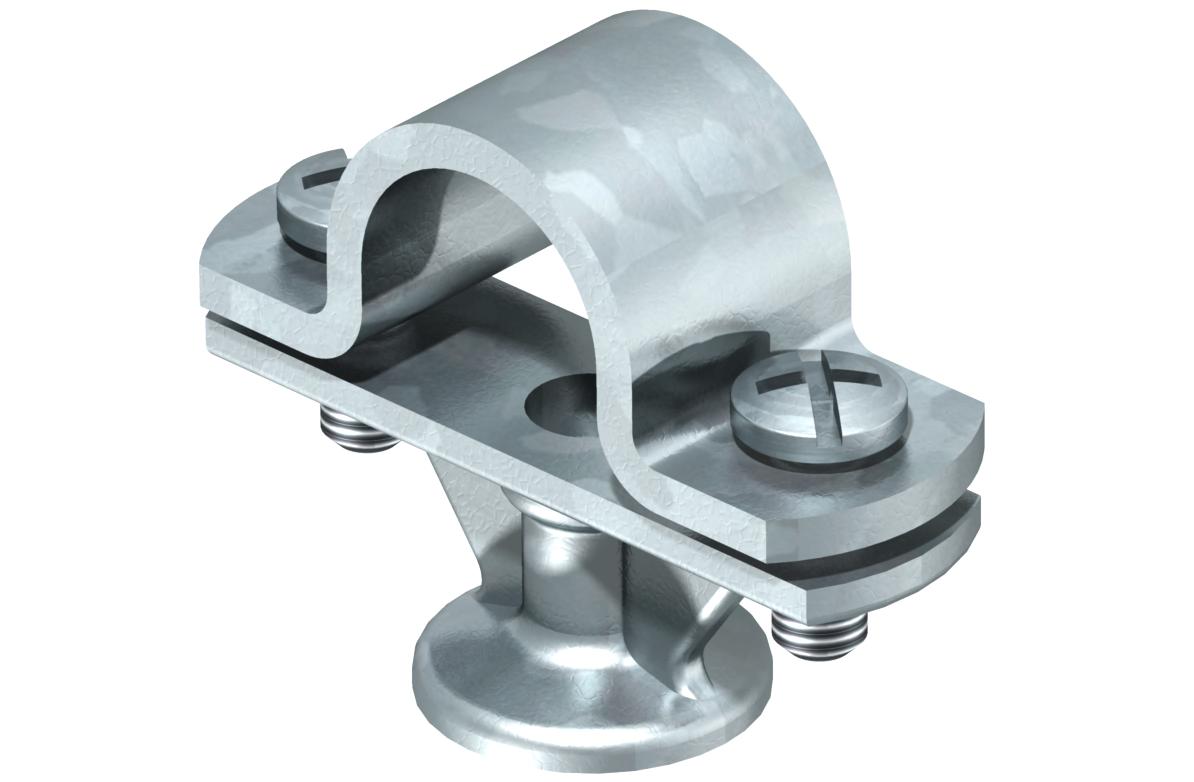

Rod holder, 20 mm
Item no. 5230527 | EAN 4012195959601
- Product description
-
Product description
• Installed with over-piece and hex-head screws M6 x 16
• With female thread M8 or through hole Ø 7 mm
- Technical data
-
Technical data

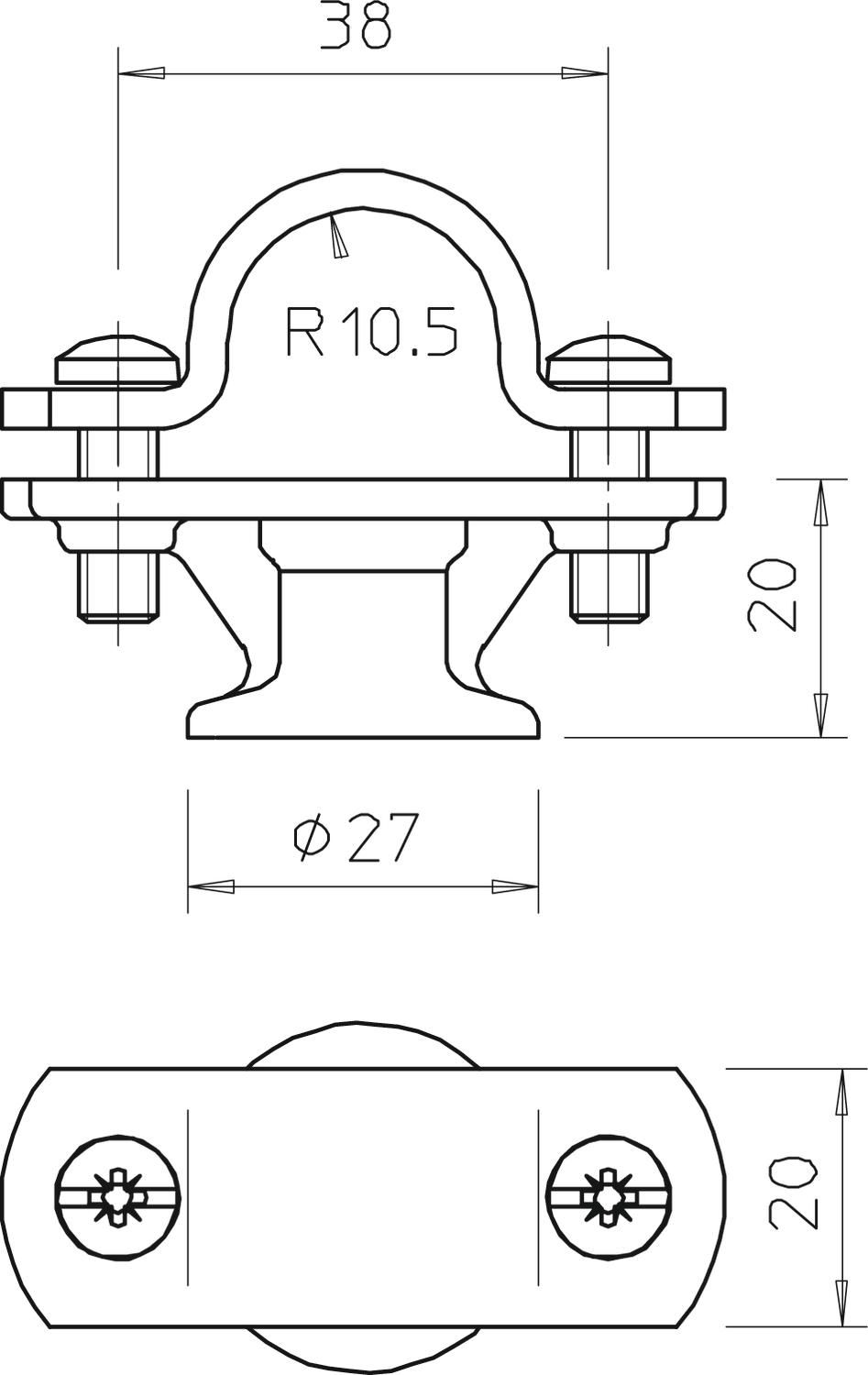

Dimension 20mm Fit Rd 20 mm Holder fastening type Drill hole with M thread Material Die-cast zinc Rod fastening type With screw clip Surface galvanised Thread metric 8 - All types
- Downloads
-
Data sheet 113 Z-20 / 5230527 , 0.21MB , pdfREACH Declaration of conformity 113 Z-20 / 5230527 , 0.27MB , pdfRoHS Declaration of conformity 113 Z-20 / 5230527 , 0.12MB , pdf
