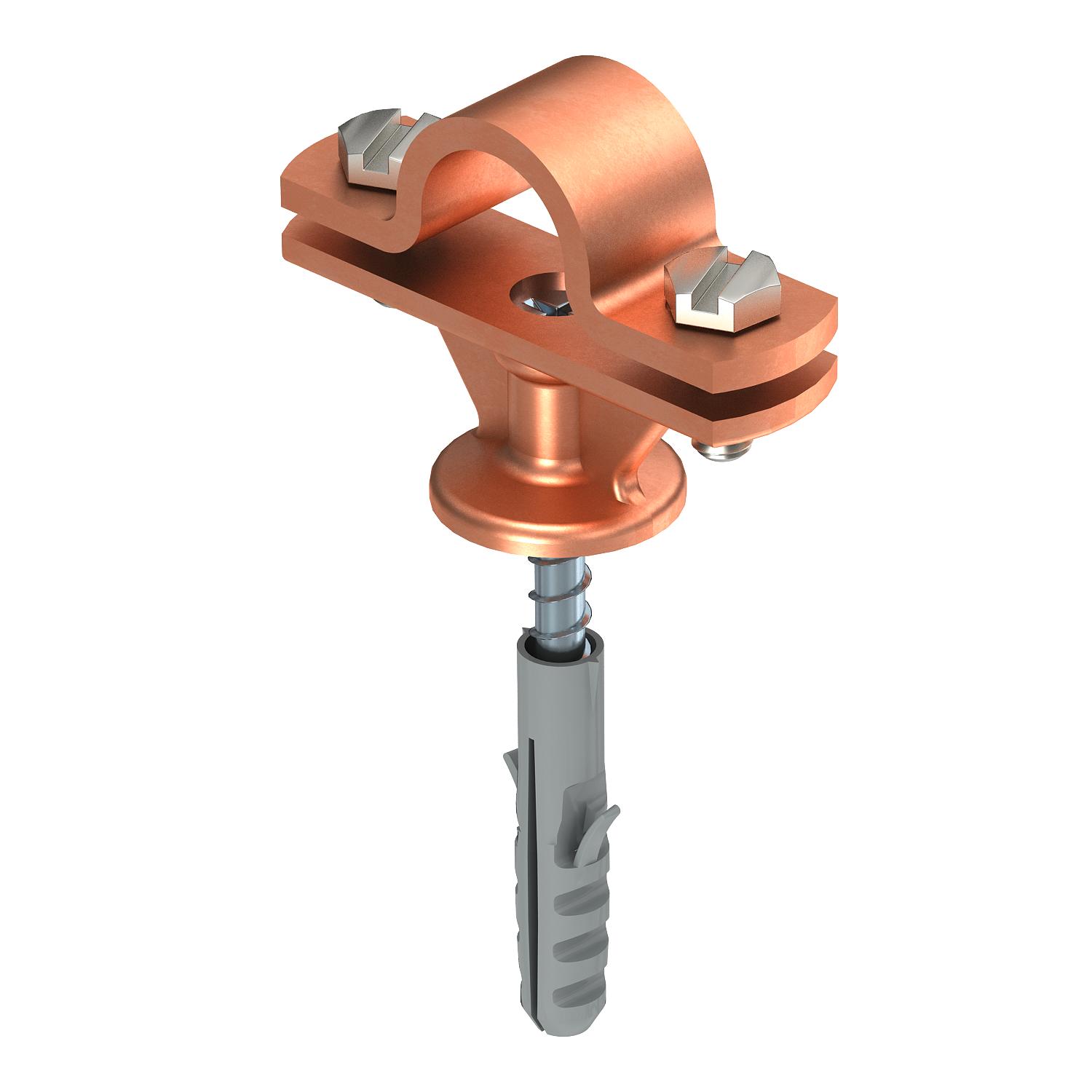

Rod holder, 16 mm, with screw and anchor
Item no. 5412811 | EAN 4012195752295
- Product description
-
Product description
• For air-termination and earth entry rods Rd 16
• Installed with crossbar and hexagonal bolts M6 x 16 (VA)
• With female thread M8 for screwing on and through hole for wood screws
• Pre-mounted with wood screw 5 x 60 and plastic anchor 8 x 40
- Technical data
-
Technical data
Dimension 16mm Fit Rd 16 mm Holder fastening type With anchor Material Die-cast zinc Material of the base Die-cast zinc Material of the crossbar Die-cast zinc Rod fastening type With screw clip Surface Copper-plated Thread metric 8 - All types
- Downloads
-
Data sheet 113 B-HD-16 / 5412811 , 0.14MB , pdfREACH Declaration of conformity 113 B-HD-16 / 5412811 , 0.12MB , pdfRoHS Declaration of conformity 113 B-HD-16 / 5412811 , 0.12MB , pdf
