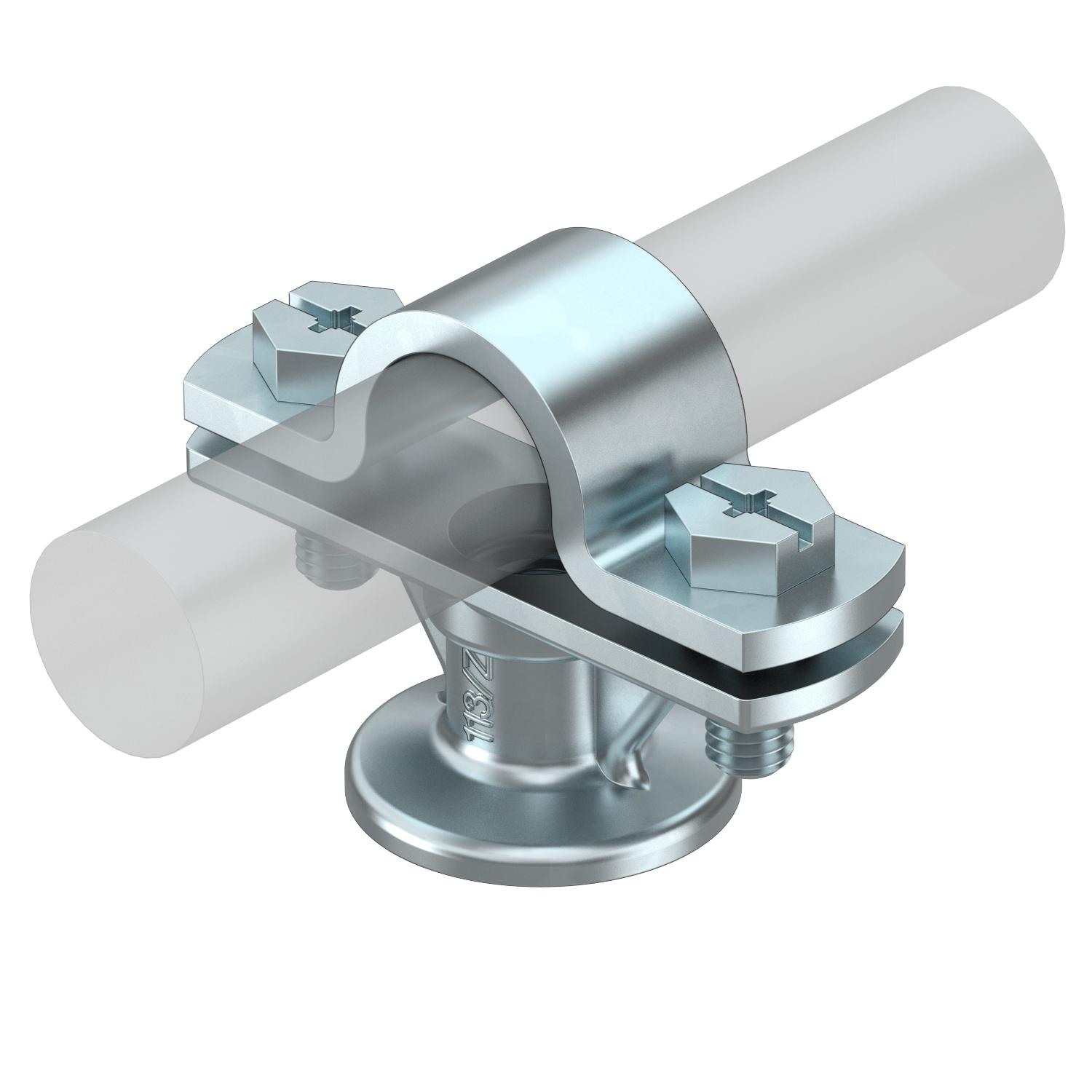

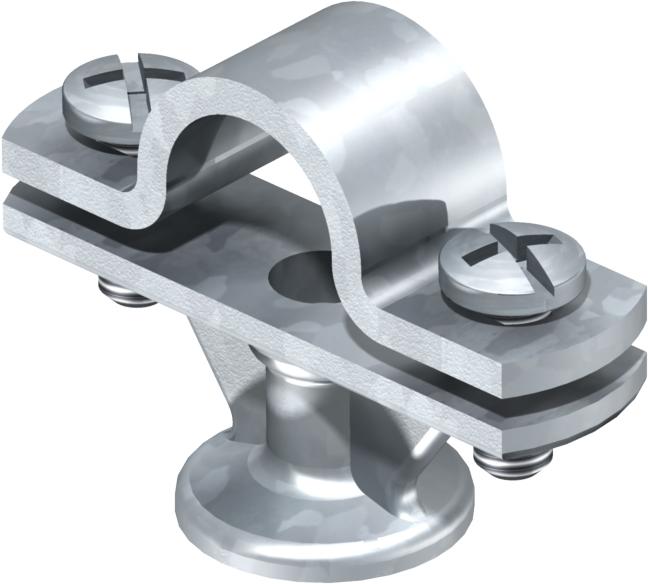

Rod holder, 16 mm
Item no. 5412609 | EAN 4012195429616
- Product description
-
Product description
• For air-termination and earth entry rods Rd 16
• Installed with crossbar and hexagonal bolts M6 x 16
• With female thread M8 or through hole Ø 7 mm
- Technical data
-
Technical data

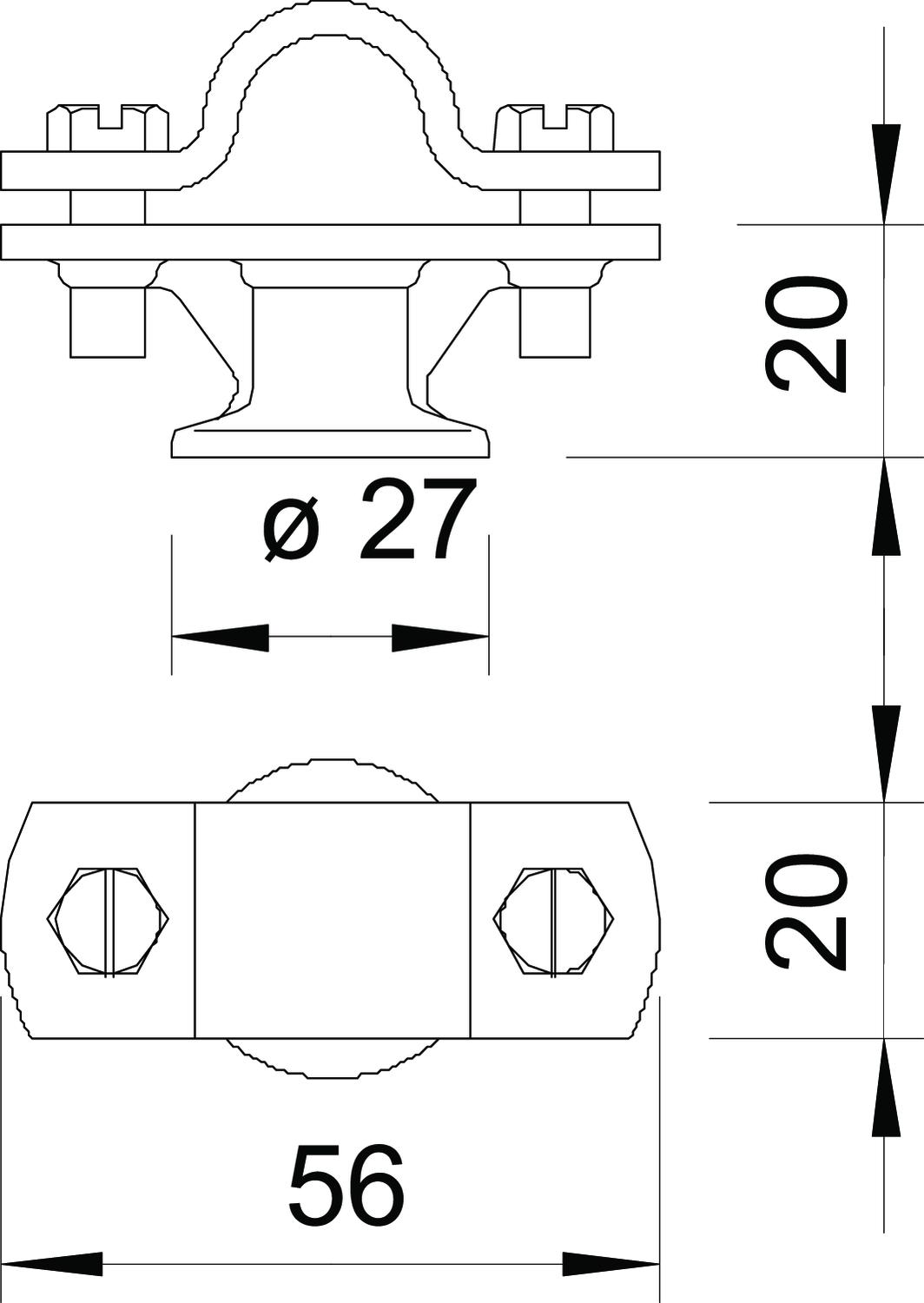

Dimension 16mm Fit Rd 16 mm Holder fastening type Drill hole with M thread Material Die-cast zinc Material of the base Die-cast zinc Material of the crossbar Die-cast zinc Rod fastening type With screw clip Surface galvanised Thread metric 8 - All types
- Downloads
-
Data sheet 113 Z-16 / 5412609 , 0.21MB , pdfREACH Declaration of conformity 113 Z-16 / 5412609 , 0.27MB , pdfRoHS Declaration of conformity 113 Z-16 / 5412609 , 0.12MB , pdf
