Rising vertical bend EI90 for PLCS D090810 fire protection duct 248 | 100 | 190 | 80 | 225 | Grey

Rising vertical bend EI90 for PLCS D090810 fire protection duct

Item no. 7217930 | EAN 4012196836802

Item no. / Types

Dimension B

Dimension b

Dimension H

Dimension h

Dimension L

Colour	Grey

Product description

Product description

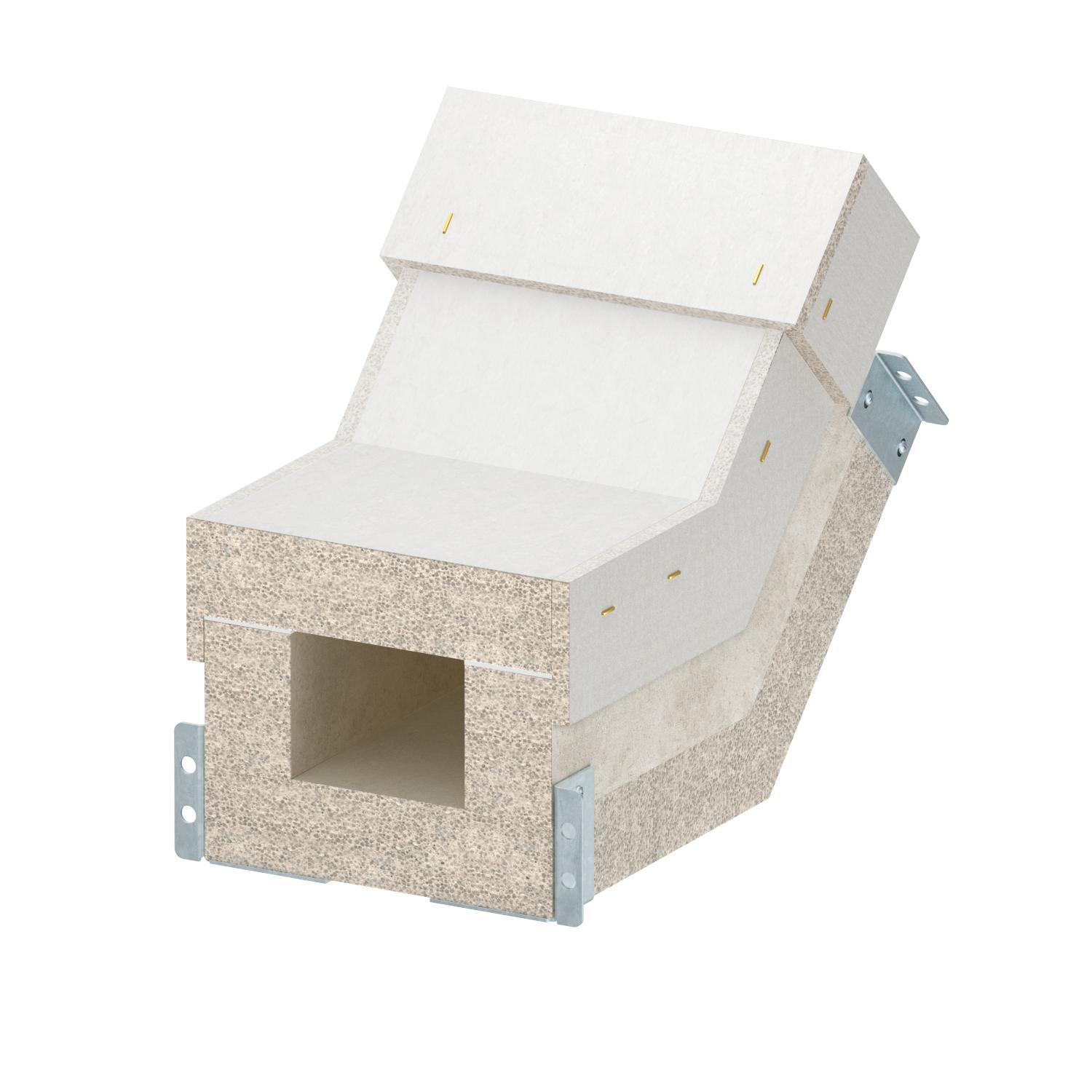

Vertical bend, rising, for PYROLINE® Con S EI90 fire protection duct, type PLCS D090810, consisting of fibreglass light concrete which is resistant to water and frost for the creation of vertical changes of direction (45°) of the duct. Mounted connectors ensure quick mounting in situ, whilst loosely placed covers ensure quick inspection and reassignment.

Including connection screws and sealing strips.

Technical data

Technical data

Angle of the bend	45 °
Classification EI − installation duct	90
Colour	Grey
Cover fastening	Loose

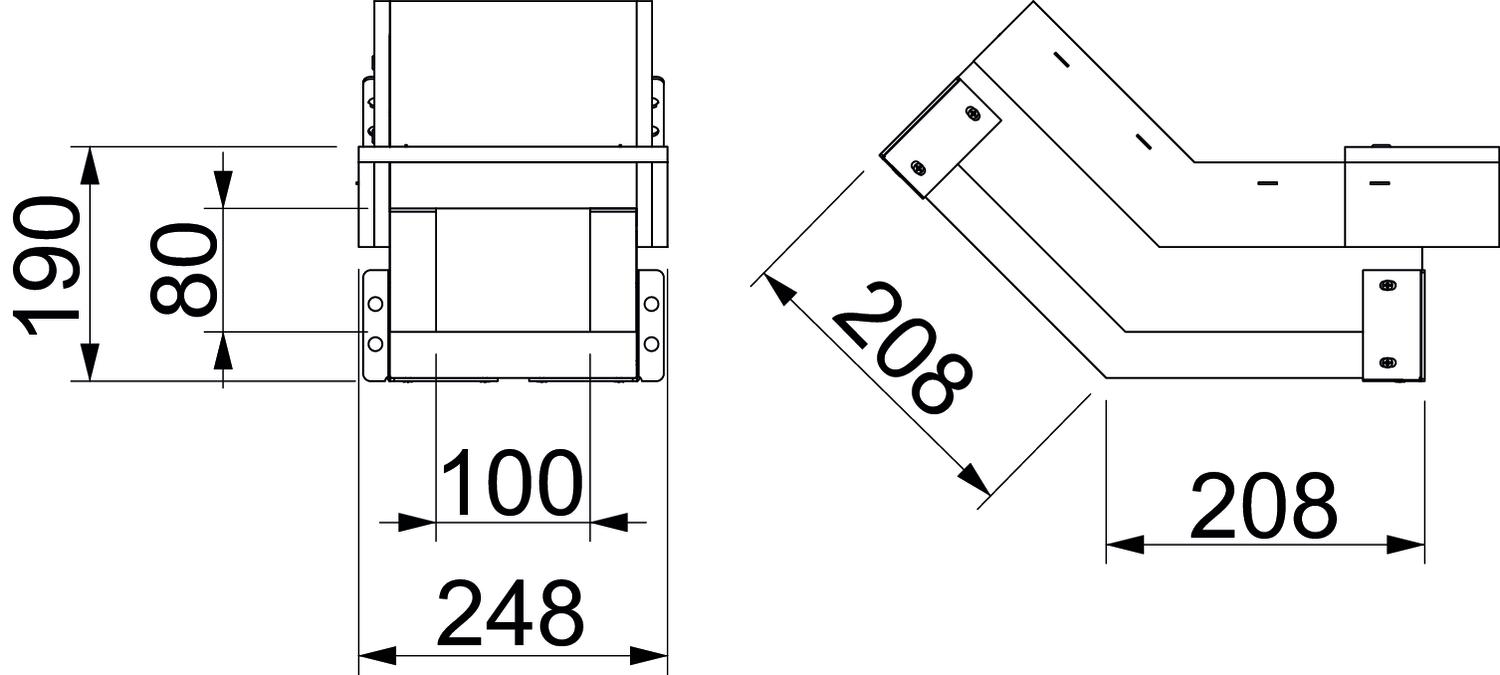

Dimension	100x80
Dimension B	248 mm
Dimension b	100 mm
Dimension H	190 mm

Dimension h	80 mm
Dimension L	225 mm
Jacketing	Without
Material	Fibreglass lightweight concrete
Material of the insulation	Glass-fibre lightweight concrete
Number of flammable sides	4
With perforation	no
