Rising vertical bend EI60 for PLCS D061220 fire protection duct
Item no. 7217924 | EAN 4012196836796
- Product description
-
Product description

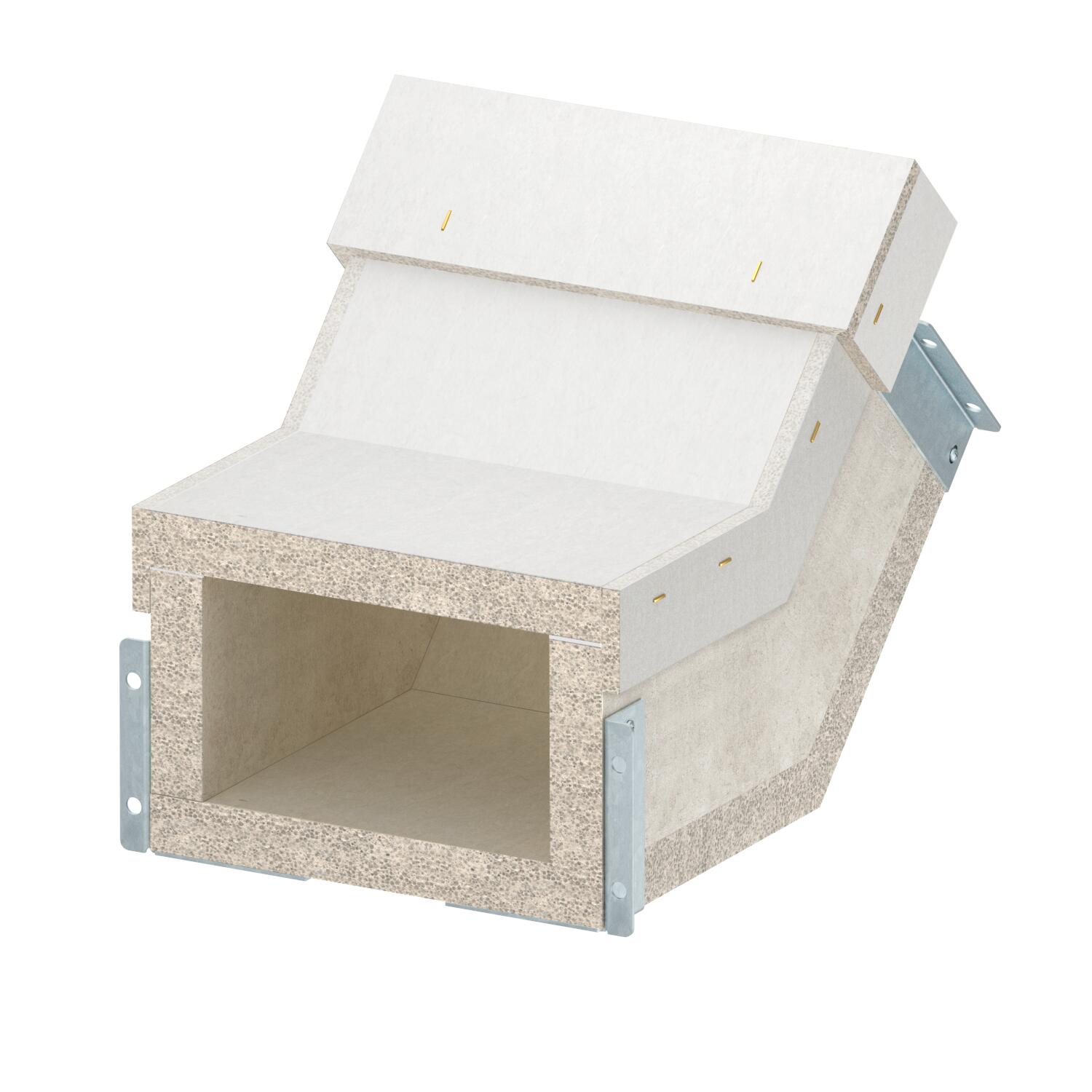

Vertical bend, rising, for PYROLINE® Con S EI60 fire protection duct, type PLCS D061220, consisting of fibreglass light concrete which is resistant to water and frost for the creation of vertical changes of direction (45°) of the duct. Mounted connectors ensure quick mounting in situ, whilst loosely placed covers ensure quick inspection and reassignment.
Including connection screws and sealing strips.
-
- Technical data
-
Technical data
Angle of the bend 45 ° Classification EI − installation duct 60 Colour Grey Cover fastening Loose Dimension 200x120 Jacketing Without Material Fibreglass lightweight concrete Material of the insulation Glass-fibre lightweight concrete Number of flammable sides 4 With perforation no Dimensions

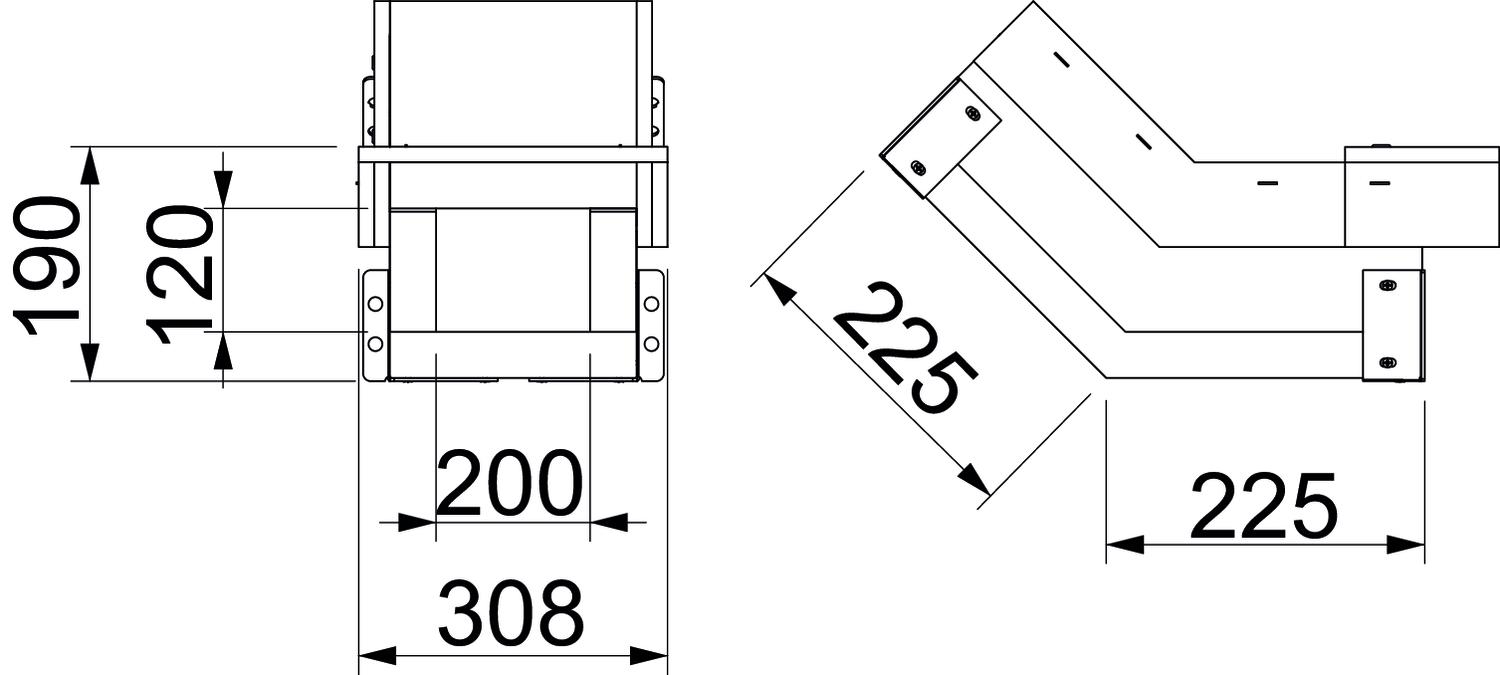

Dimension B 308 mm Dimension b 200 mm Dimension h 120 mm Dimension H 190 mm Dimension L 225 mm - All types
- Downloads
-
Data sheet PLCS VR061220 / 7217924 , 0.18MB , pdfBrochure Brochure The Experts , 2.10MB , pdfCatalogue Brandschutzkanäle , 8.99MB , pdfApproval certificate Fire protection ducts PYROLINE® Con PLC , 1.30MB , pdfMounting instructions Mounting instructions, PYROLINE® Con BSK fire protection duct , 15.07MB , pdfMounting instructions Mounting instructions, PYROLINE® PLC fire protection duct , 14.60MB , pdfNo invitation to tender text is available for this product.
