Ring eyelet
Item no. 3463583 | EAN 4012195307273
- Product description
-
Product description

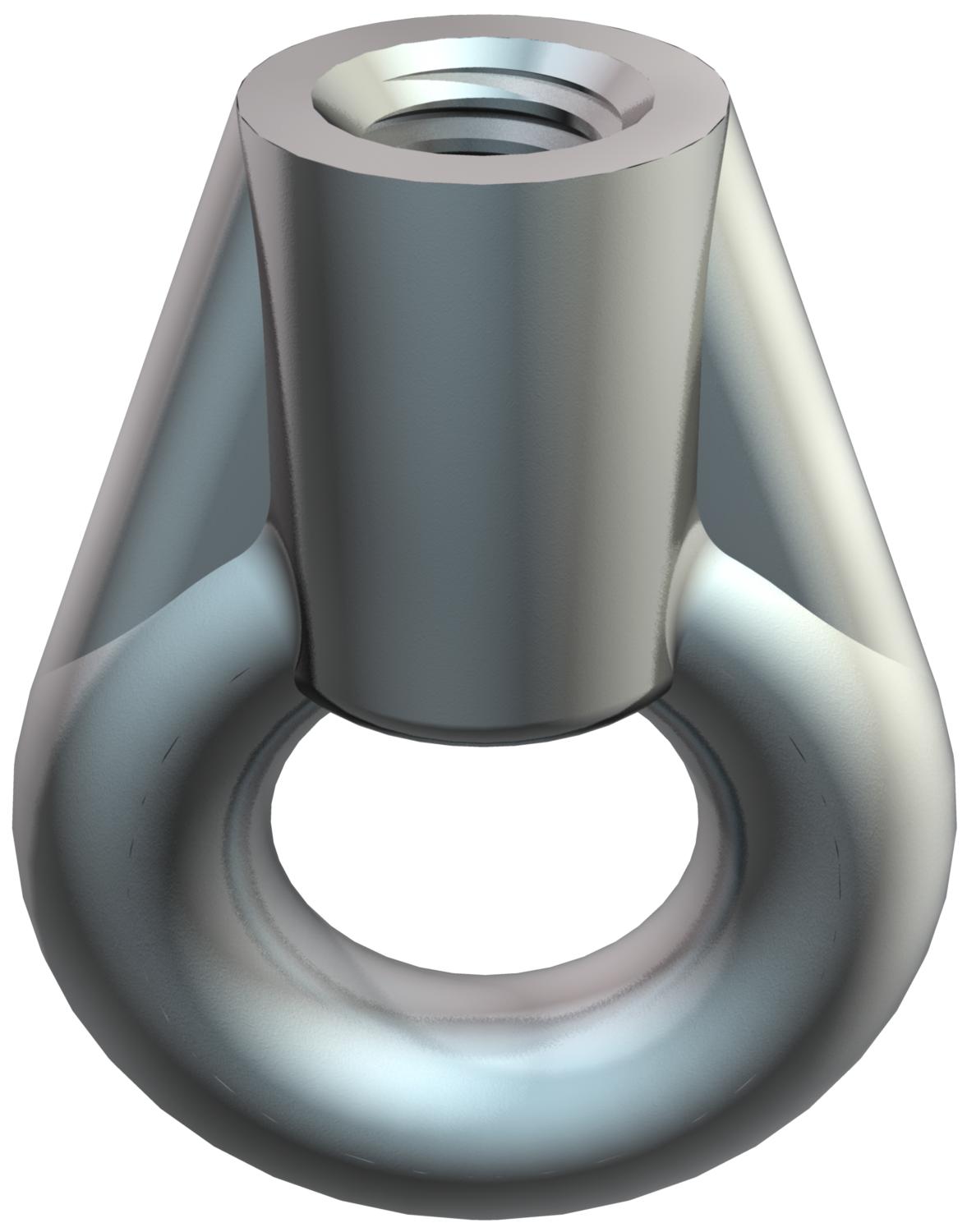

Ring eyelet with metric internal thread.
-
- Technical data
-
Technical data

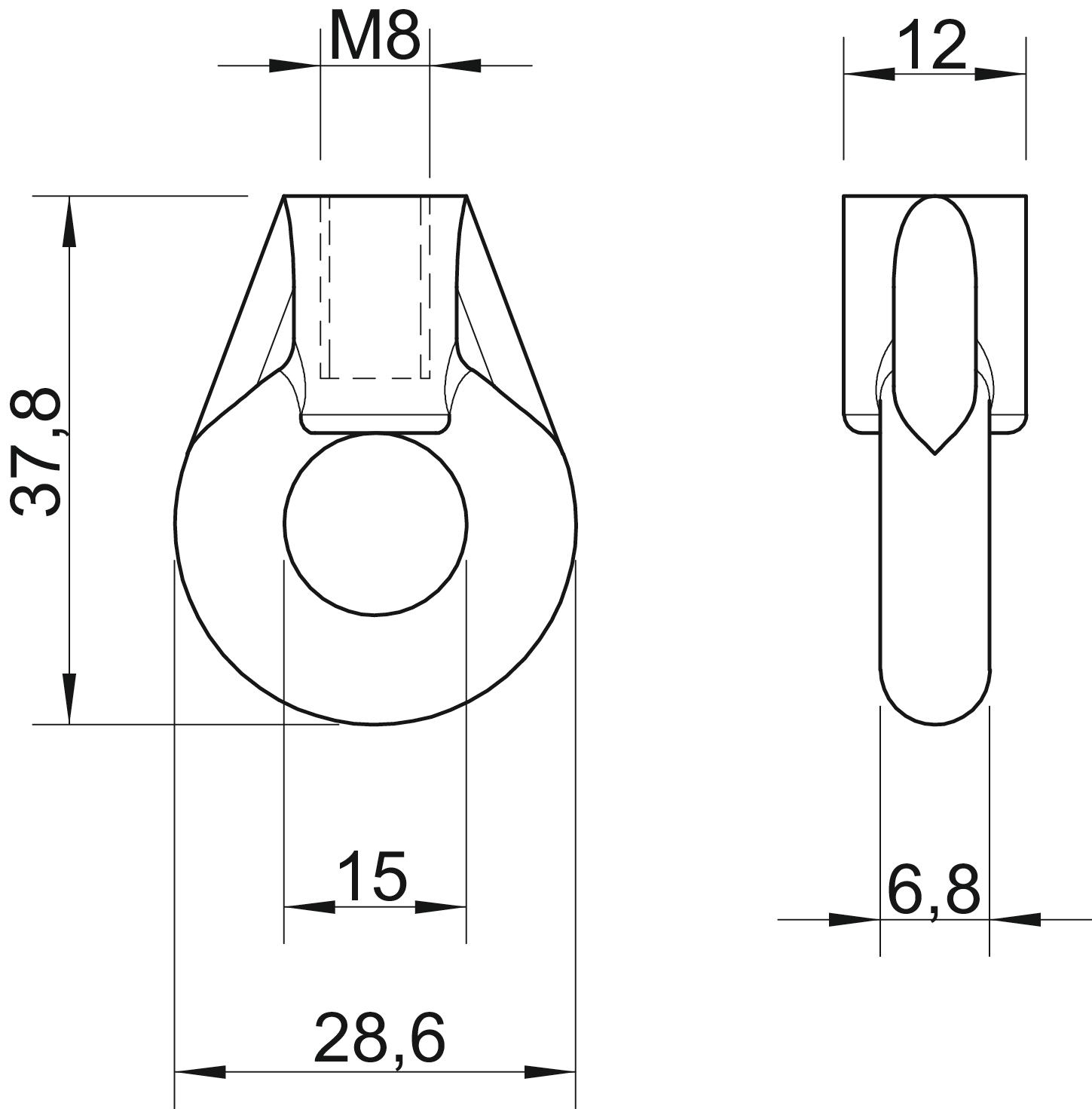

Breaking load 1,15 kN Dimension M8 Dimension b 6,8 mm Dimension BØ 12 mm Dimension D 28,6 mm Dimension d Ø 15 mm Dimension L 37,8 mm Material Die-cast zinc Surface Electrogalvanized Thread metric 8 - All types
- Downloads
-
Data sheet 2084 M8 G / 3463583 , 0.17MB , pdfCatalogue Fastening materials , 19.78MB , pdfREACH Declaration of conformity 2084 M8 G / 3463583 , 0.12MB , pdfRoHS Declaration of conformity 2084 M8 G / 3463583 , 0.13MB , pdf
