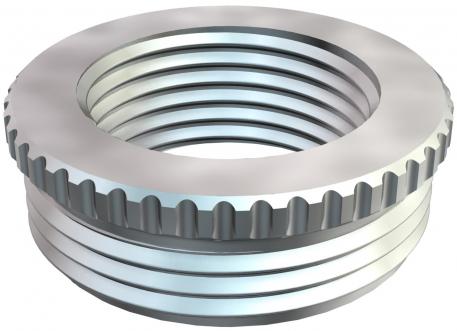

Reduction, PG thread

Item no. 2089440 | EAN 4012195193876

Item no. / Types

Thread dimension, PG, external

Thread dimension, PG, internal

Product description

Product description

Reduction (Part H) to DIN 46320, with Pg thread to DIN 40430, as a transition from a PG thread hole to a smaller cable gland.
* Prices according to DEL notation.

Technical data

Technical data

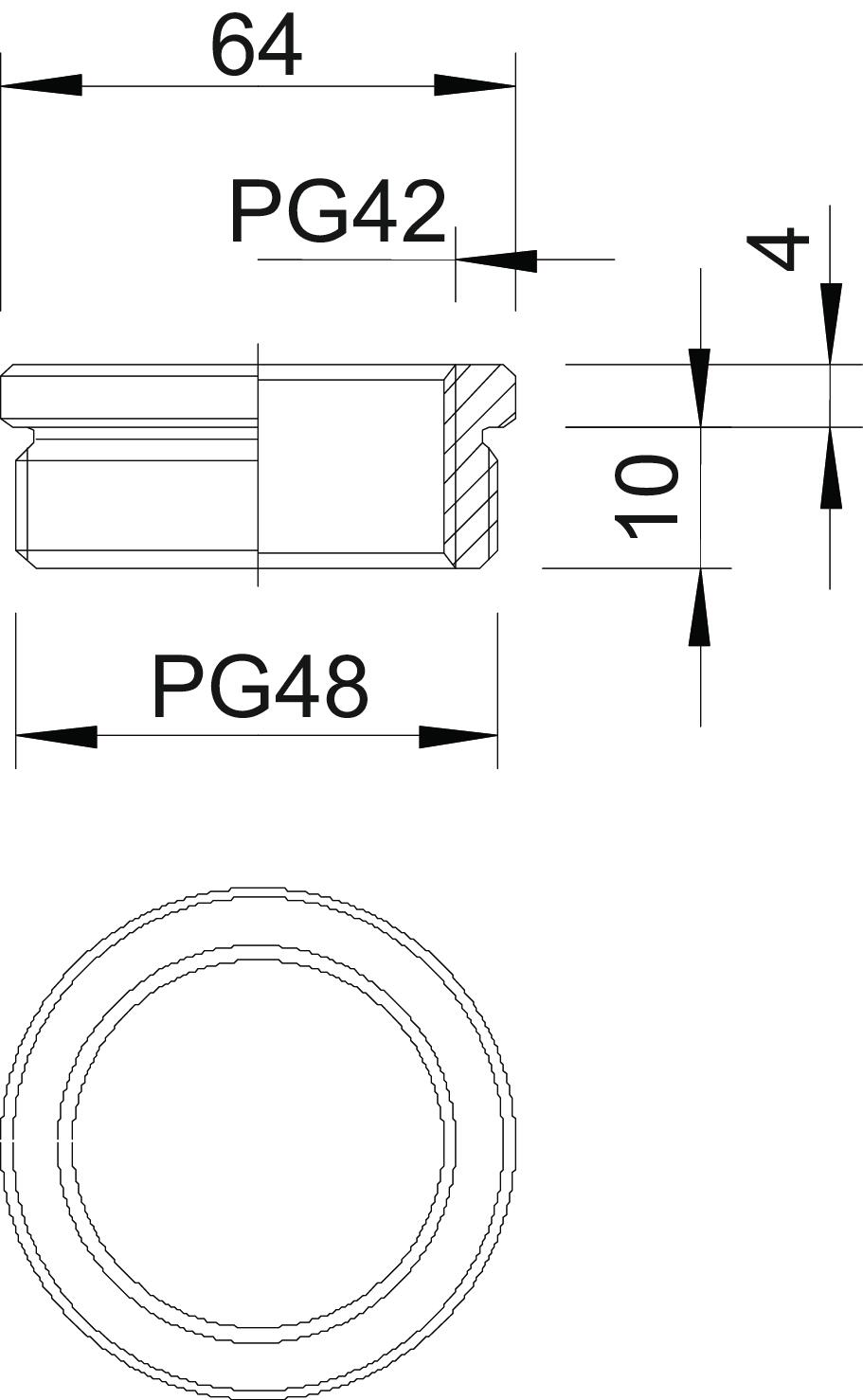

Dimension	PG48-PG42
Dimension D	64 mm
Dimension L1	10 mm
Dimension L2	4 mm
explosion-proof	no
Material	Brass
Nickel-plated	yes

Surface	Nickel-plated
Thread dimension, PG, external	48
Thread dimension, PG, internal	42
Thread length	10 mm
Thread type: External thread	PG
Thread type: Internal thread	PG

All types

All types

Types	Thread dimension, PG, external	Thread dimension, PG, internal	Item no.	Quantity	SSU
167 R MS PG9-7	9	7	2089025	piece	50 piece
167 R MS PG11-7	11	7	2089041	piece	50 piece
167 R MS PG11-9	11	9	2089076	piece	50 piece
167 R MS PG13-7	13.5	7	2089092	piece	50 piece
167 R MS PG13-9	13.5	7	2089114	piece	50 piece
167 R MS PG13-11	13.5	11	2089130	piece	50 piece
167 R MS PG16-9	16	9	2089157	piece	50 piece
167 R MS PG16-11	16	11	2089173	piece	50 piece
167 R MS PG16-13	16	13.5	2089203	piece	50 piece
167 R MS PG21-11	21	11	2089238	piece	50 piece
167 R MS PG21-13	21	13.5	2089254	piece	50 piece
167 R MS PG21-16	21	16	2089270	piece	50 piece
167 R MS PG29-16	29	16	2089297	piece	50 piece
167 R MS PG29-21	29	21	2089319	piece	50 piece
167 R MS PG36-21	36	21	2089335	piece	25 piece
167 R MS PG36-29	36	29	2089351	piece	25 piece
167 R MS PG42-36	42	36	2089408	piece	25 piece
167 R MS PG48-36	48	36	2089424	piece	25 piece
167 R MS PG48-42	48	42	2089440	piece	25 piece
