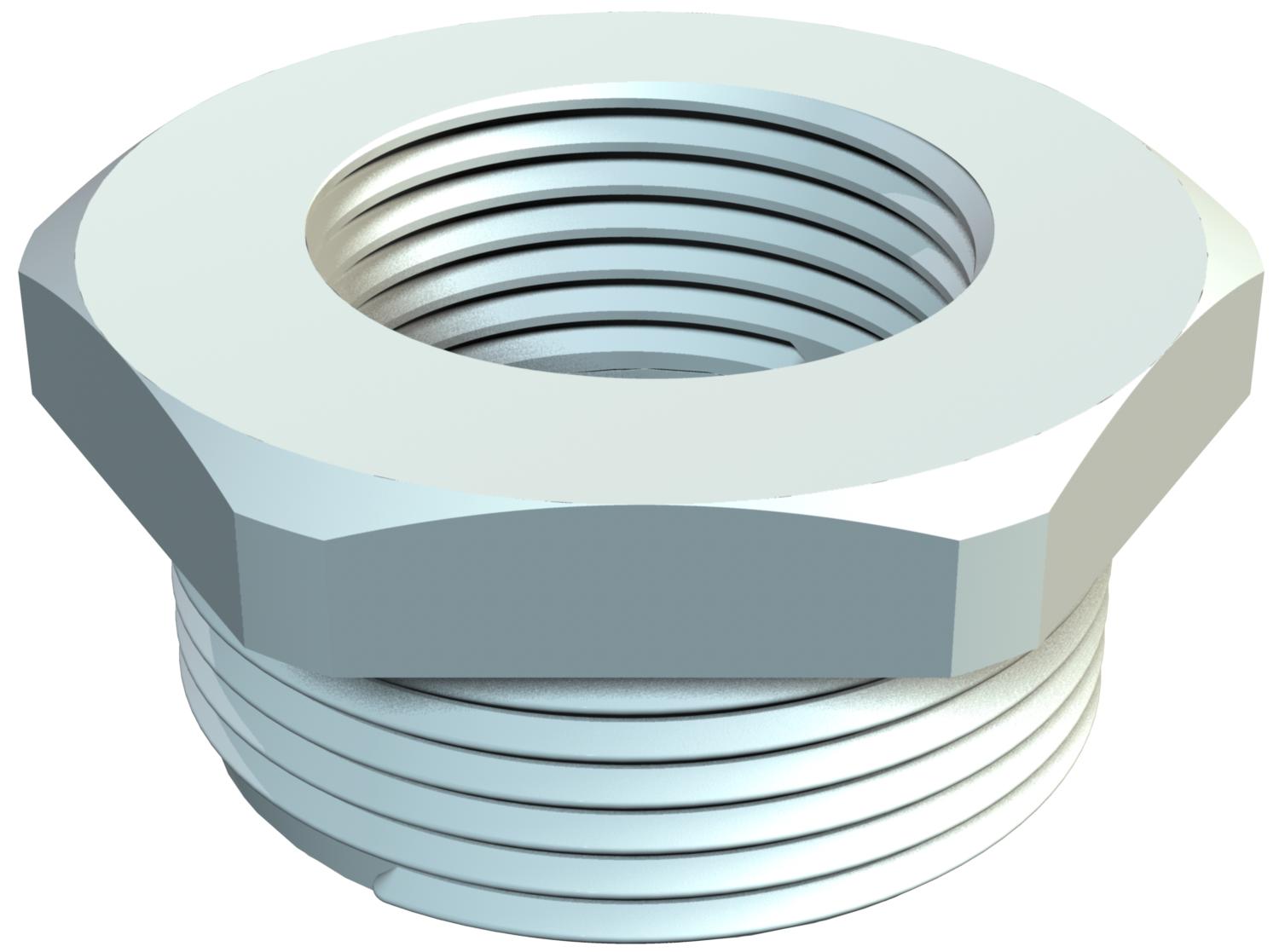

Reduction, PG thread

Item no. 2030802 | EAN 4012195434658

Item no. / Types

Thread dimension, PG, external

Thread dimension, PG, internal

WAF

Product description

Product description

Reduction with PG internal and external thread to DIN 40430 for mounting plastic cable glands on enclosures. Protection class IP54 without additional connecting seal. Protection class up to IP68 possible with additional connecting seal, e.g. O-ring or flat sealing ring.

Technical data

Technical data

Colour	Light grey; RAL 7035
Dimension	PG29-PG21
Dimension D	21,5 mm
Dimension E	40 mm
Dimension L1	11 mm
Dimension L2	6 mm
Dimension L3	13,5 mm
explosion-proof	no
Halogen-free	yes

Material	Polyamide
Nickel-plated	no
Thread dimension, PG, external	29
Thread dimension, PG, internal	21
Thread length	11 mm
Thread type: External thread	PG
Thread type: Internal thread	PG
WAF	39

All types

All types

Types	Thread dimension, PG, external	Thread dimension, PG, internal	WAF	Item no.	Quantity	SSU
107 R PG11- 7 PA	11	7	22	2030705	piece	50 piece
107 R PG13- 9 PA	13.5	9	24	2030713	piece	50 piece
107 R PG16- 9 PA	16	9	27	2030748	piece	50 piece
107 R PG16-11 PA	16	11	27	2030756	piece	50 piece
107 R PG21-11 PA	21	11	32	2030764	piece	50 piece
107 R PG21-13 PA	21	13.5	32	2030772	piece	50 piece
107 R PG21-16 PA	21	16	32	2030780	piece	50 piece
107 R PG29-16 PA	29	16	40	2030799	piece	50 piece
107 R PG29-21 PA	29	21	39	2030802	piece	25 piece
107 R PG36-29 PA	36	29	50	2030810	piece	25 piece
107 R PG36-21 PA	36	21	50	2030829	piece	25 piece
107 R PG42-29 PA	42	29	55	2030837	piece	25 piece
