Reducing sealing insert, metric 23 | 33.7 | 40

morepic-1

morepic-2

Reducing sealing insert, metric

Item no. 2029575 | EAN 4012195360650

Item no. / Types

Dimension D1

Dimension D2

Suitable for metric thread dimension

Product description

Product description

Reduces the sealing area D of the cable gland V-TEC VM and V-TEC VM L.

Technical data

Technical data

Colour	Black
Dimension	M40
Dimension D1	23 mm
Dimension D2	33,7 mm
Dimension H	15 mm
External diameter	33,7 mm
Halogen-free	no

Inner diameter	23 mm
Material	Rubber mixture
Sealing area D, max.	23 mm
Sealing area D, min.	12 mm
Suitable for metric thread dimension	40
Thickness	15 mm
Version for	Miscellaneous

All types

All types

Types	Dimension D1	Dimension D2	Suitable for metric thread dimension	Item no.	Quantity	SSU
107CR VM 12	5 mm	8.9 mm	12	2029560	piece	50 piece
107CR VM 16	7 mm	12.7 mm	16	2029563	piece	50 piece
107CR VM 20	9 mm	16 mm	20	2029566	piece	50 piece
107CR VM 25	13 mm	20.7 mm	25	2029569	piece	50 piece
107CR VM 32	16 mm	25.7 mm	32	2029572	piece	25 piece
107CR VM 40	23 mm	33.7 mm	40	2029575	piece	25 piece
107CR VM 50	29 mm	41.7 mm	50	2029578	piece	25 piece
107CR VM 63	40 mm	54.8 mm	63	2029581	piece	25 piece

Downloads

Data sheet 107CR VM 40 / 2029575 , 0.17MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

Declaration of conformity Declaration of conformity ,

Download

Declaration of conformity Declaration of conformity ,

Download

REACH Declaration of conformity 107CR VM 40 / 2029575 , 0.12MB , pdf

Download

RoHS Declaration of conformity 107CR VM 40 / 2029575 , 0.12MB , pdf

Download

Mounting instructions Mounting instructions, V-TEC VM.. ..x.. , 2.00MB , pdf

Download

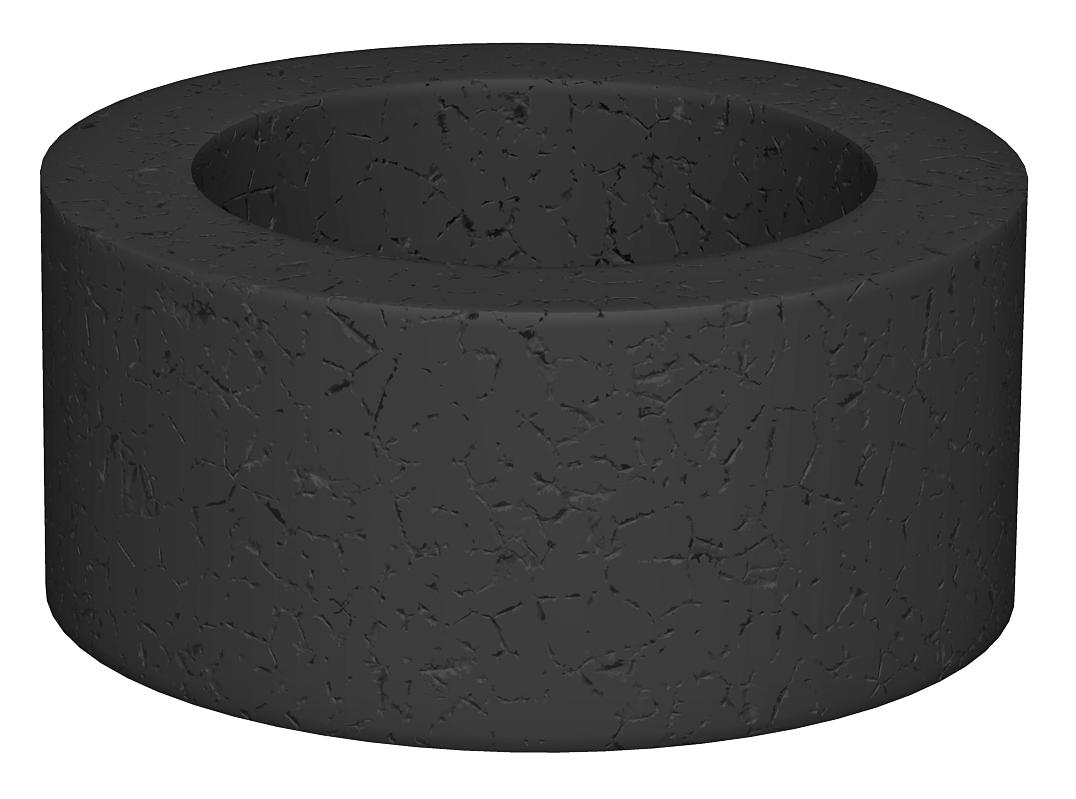

Product graphic 107CR VM 40 / 2029575, 50.81 kB, jpg

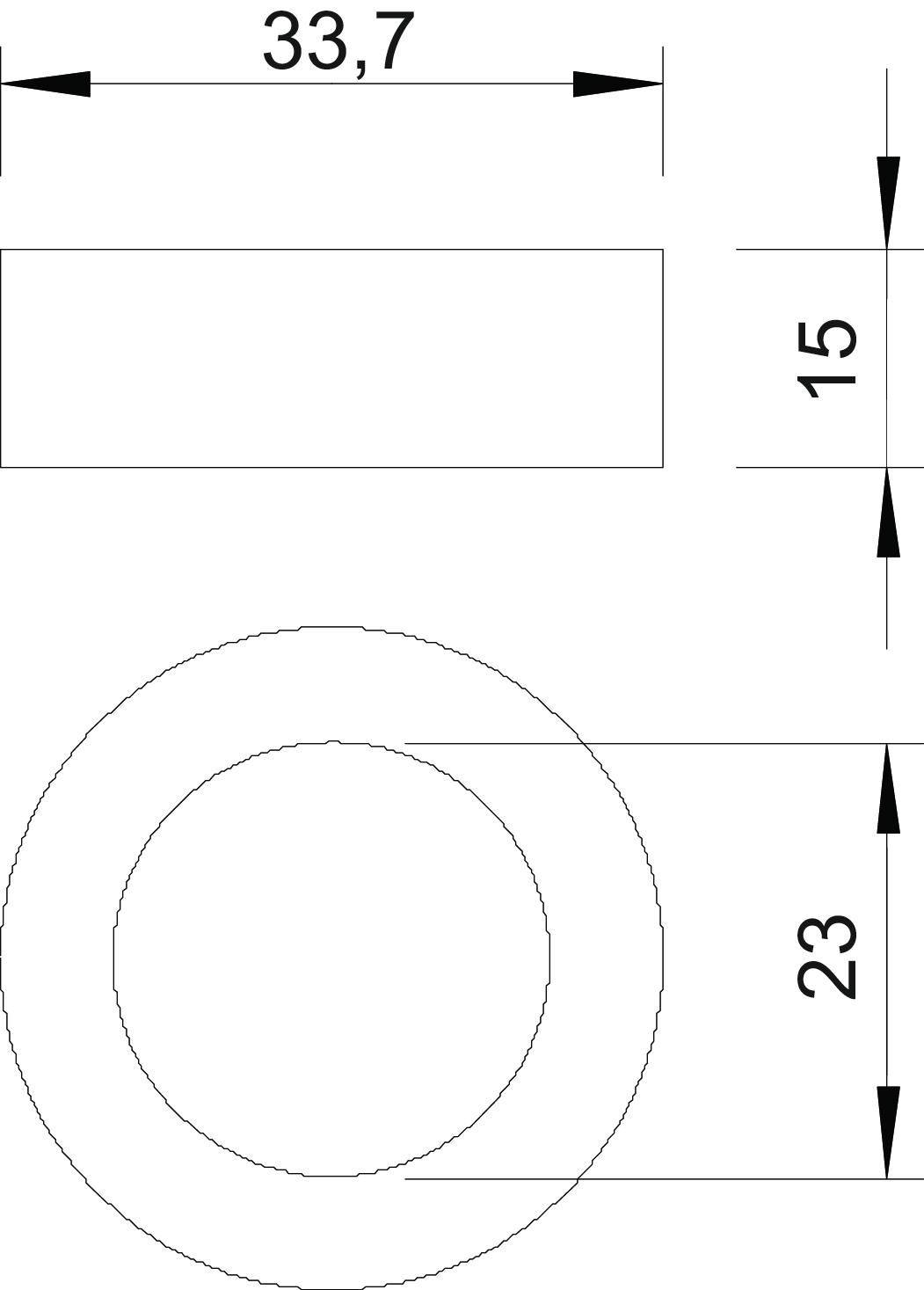

Scale drawing 107CR VM 40 / 2029575, 50.04 kB, jpg

107CR VM 40 / 2029575
