Reducer / stop-end FS 50 | 35
morepic-1 morepic-2 video-1

Reducer / stop-end FS

Item no. 7108052 | EAN 4012196241392

35 mm
Product description
Product description

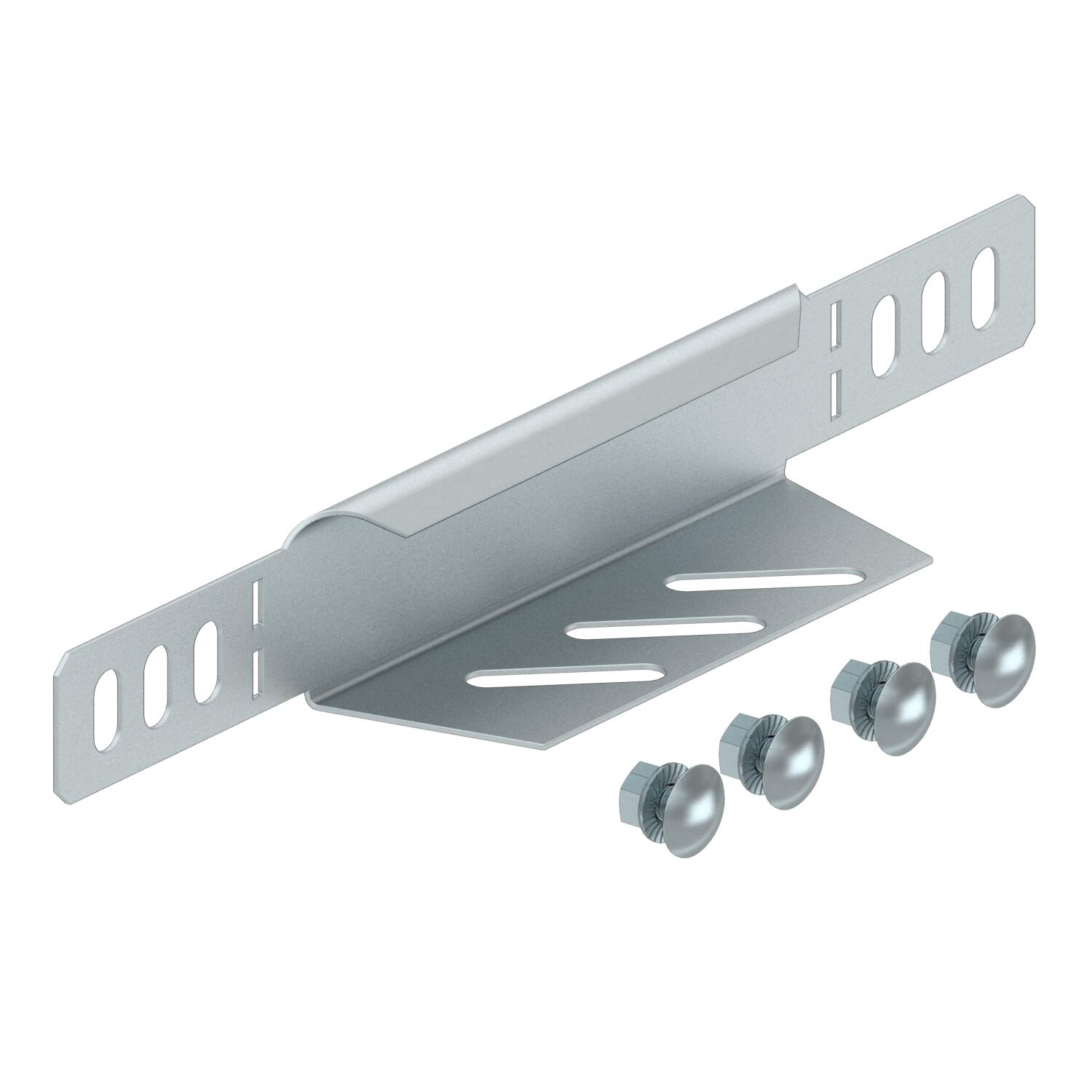

Reducer/stop-end for cable trays with side height 35 mm.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Cable tray, side height 35 mm
Technical data

Technical data

Colour zinc
Dimension 35x50
Dimension B 50 mm
Height 1 in
Height 35 mm
Maintain electrical functions no
Material Steel
Plate thickness 1 mm
Rustproof steel, pickled no
Surface Strip galvanized
Wide-span version no
Width 2 in
Width 50 mm
All types

All types

Types Width Height Item no. Quantity SSU
RWEB 305 FS 50 mm 35 mm 7108052
1 piece
RWEB 310 FS 100 mm 35 mm 7108109
1 piece
RWEB 320 FS 200 mm 35 mm 7108206
1 piece
RWEB 330 FS 300 mm 35 mm 7108311
1 piece
