Reducer / stop-end FS 100 | 85
morepic-1 morepic-2

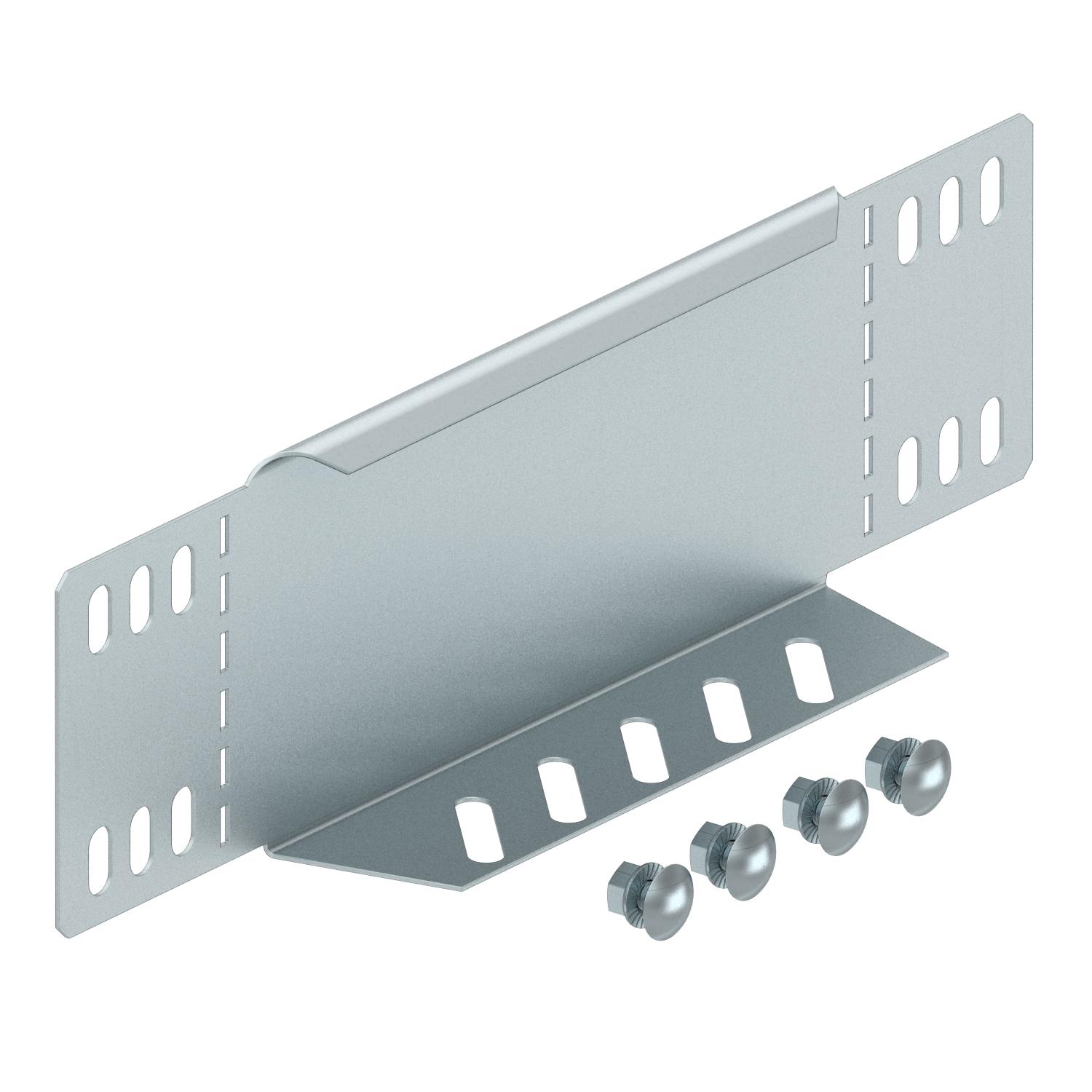

Reducer / stop-end FS

Item no. 7110103 | EAN 4012196242412

85 mm
Product description

Product description

Reducer/stop-end for cable trays with side height 85 mm.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Cable tray, side height 85 mm
Technical data

Technical data

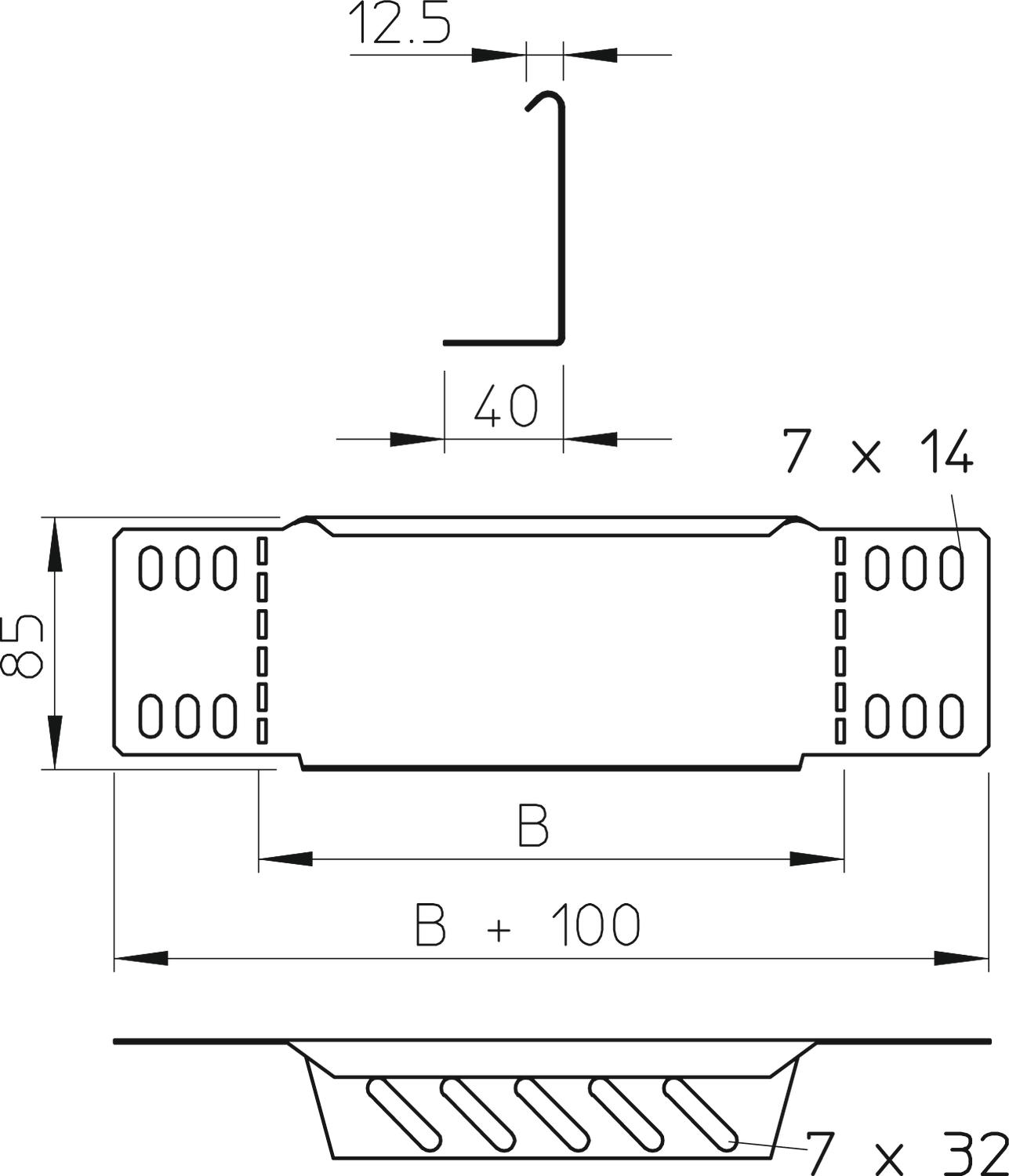

Dimension 85x100
Dimension B 100 mm
Height 85 mm
Height 3 in
Maintain electrical functions no
Material Steel
Plate thickness 1 mm
Rustproof steel, pickled no
Surface Strip galvanized
Width 100 mm
Width 4 in
All types

All types

Types Width Height Item no. Quantity SSU
RWEB 810 FS 100 mm 85 mm 7110103
1 piece
RWEB 820 FS 200 mm 85 mm 7110200
1 piece
RWEB 830 FS 300 mm 85 mm 7110308
1 piece
RWEB 840 FS 400 mm 85 mm 7110405
1 piece
RWEB 850 FS 500 mm 85 mm 7110502
1 piece
RWEB 860 FS 600 mm 85 mm 7110618
1 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F Truss-head bolt with flange nut F FRSB 6x12 F 6406122
100 piece
Downloads

Download

Download
Download

Declaration of conformity RWEB 810 FS / 7110103 , 0.11MB , pdf
Download
REACH Declaration of conformity RWEB 810 FS / 7110103 , 0.12MB , pdf
Download
RoHS Declaration of conformity RWEB 810 FS / 7110103 , 0.12MB , pdf
Download

Download
Download
Download

RWEB 810 FS / 7110103
