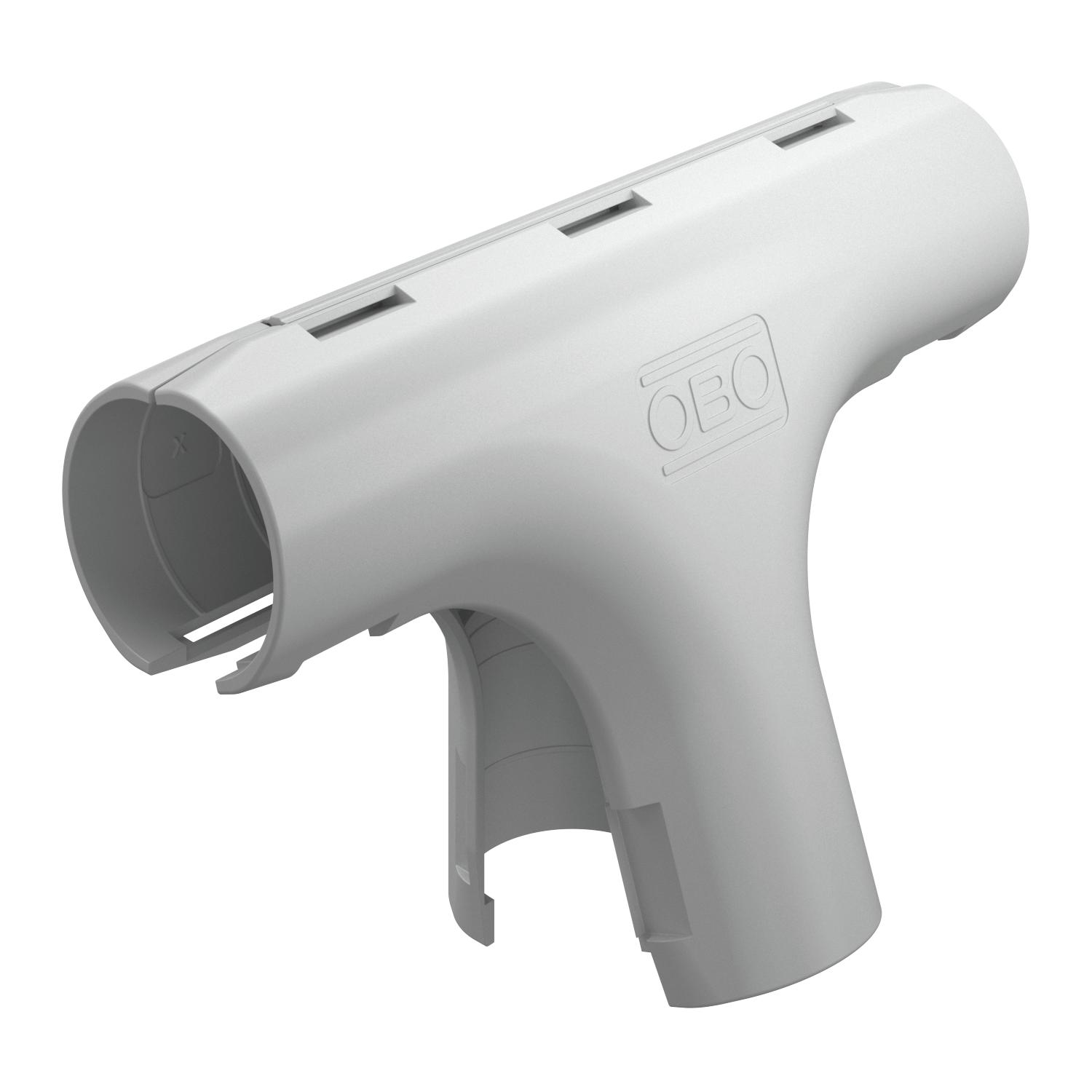

Quick pipe T piece, light grey
Item no. 2153843 | EAN 4012196868551
- Product description
-
Product description
Fitting for plastic electrical installation pipes to create T branches. Suitable for Quick pipe pipes or corrugated pipes. Toolless closing and opening. Can be used in a temperature range of –25 to +60 °C.
-
- Technical data
-
Technical data

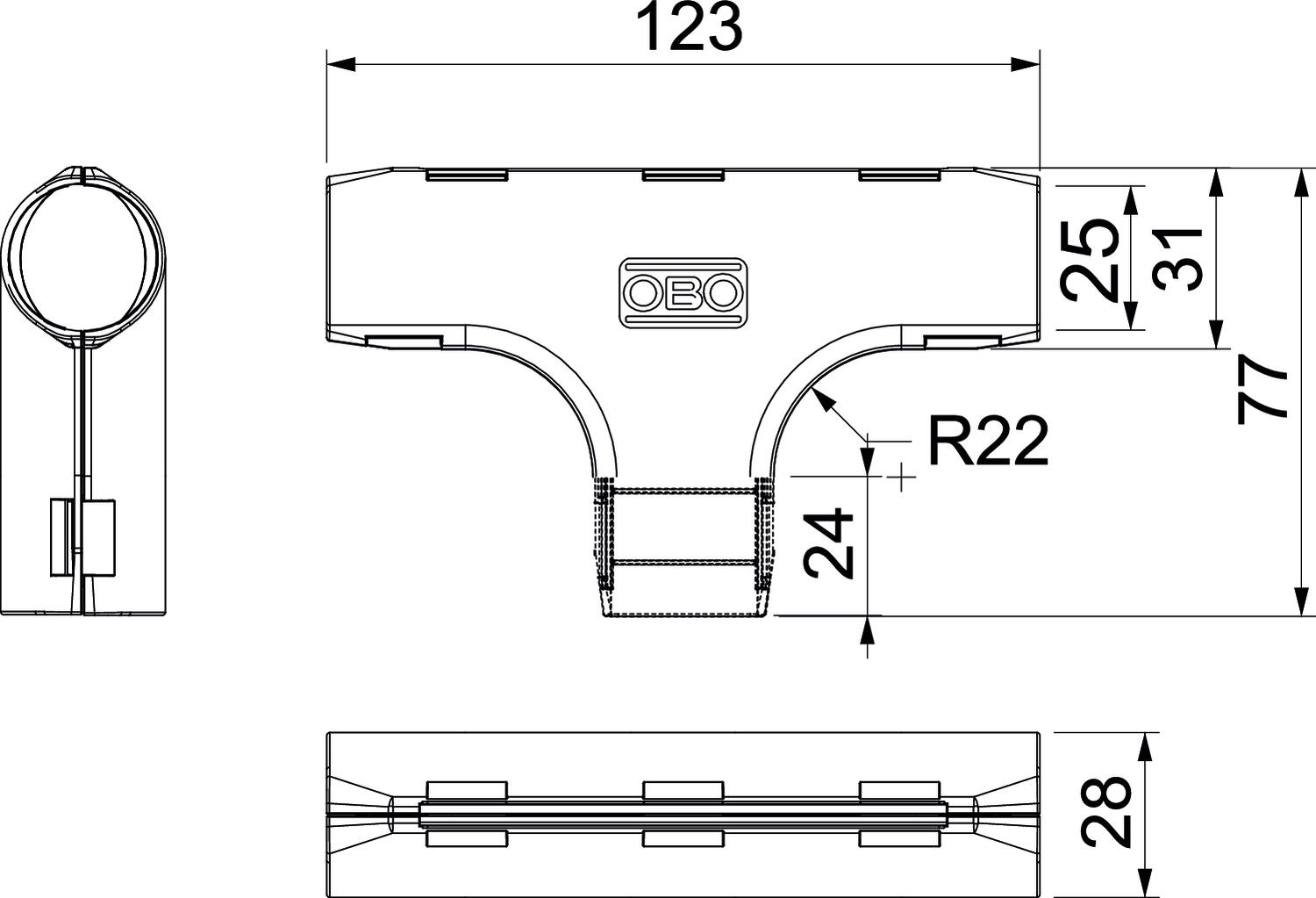

Brushed surface no Colour Light grey; RAL 7035 Dimension M25 Dimension B 31 mm Dimension B2 123 mm Dimension d 25 mm Dimension L 77 mm Dimension L1 24 mm Dimension R 22 mm Halogen-free yes Material Polypropylene Permitted temperature range, max. 60 °C Polished surface no Shape T piece Size M25 Version for Connector With sleeve no - All types
- Downloads
-
Data sheet 3000 TMS M25 LGR / 2153843 , 0.20MB , pdfBrochure Quick Pipe , 1.41MB , pdfREACH Declaration of conformity 3000 TMS M25 LGR / 2153843 , 0.12MB , pdfRoHS Declaration of conformity 3000 TMS M25 LGR / 2153843 , 0.13MB , pdf
