Note: This article is discontinued. You can find the current article here: 2153841 / Quick pipe T piece, light grey

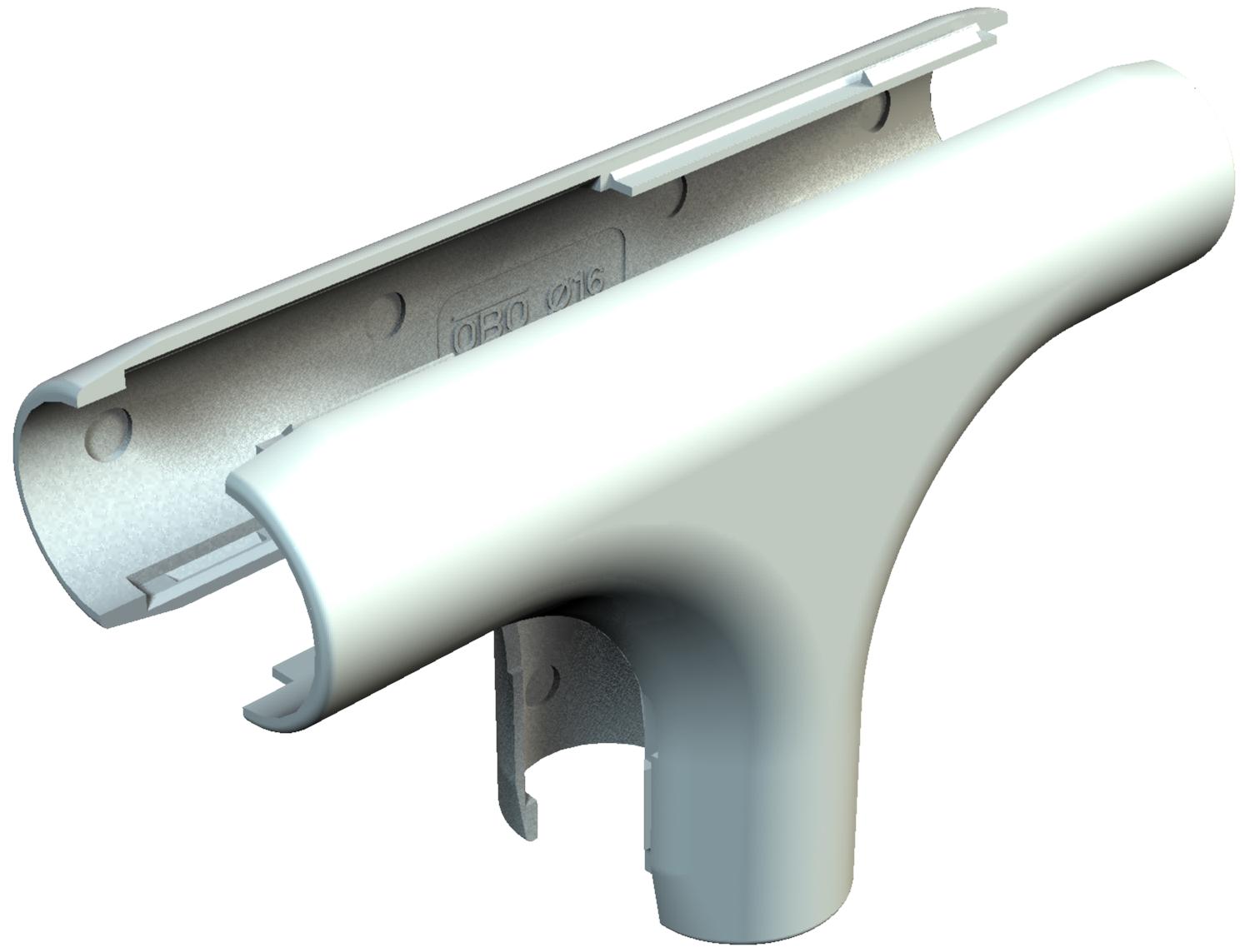

Quick pipe T piece, light grey

Item no. 2153874 | EAN 4012195469575

Product description

Product description

Fitting for plastic electrical installation pipes to create T branches. Suitable for Quick pipe pipes or corrugated pipes. Toolless closing and opening. Can be used in a temperature range of –25 to +60 °C.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 44
  • Thread metric
Technical data

Technical data

Brushed surface no
Colour Light grey; RAL 7035
Dimension M20
Dimension B 25,5 mm
Dimension B2 109,5 mm
Dimension L 67,5 mm
Dimension R 22 mm
Halogen-free no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Polished surface no
Size M20
Version for Connector
With sleeve no
All types

All types

Types Dimension L Size Item no. Quantity SSU
2953 T M20 LGR 67.5 mm M20 2153874
5 piece
2953 T M25 LGR 77.2 mm M25 2153876
5 piece
