- Product description
-
Product description

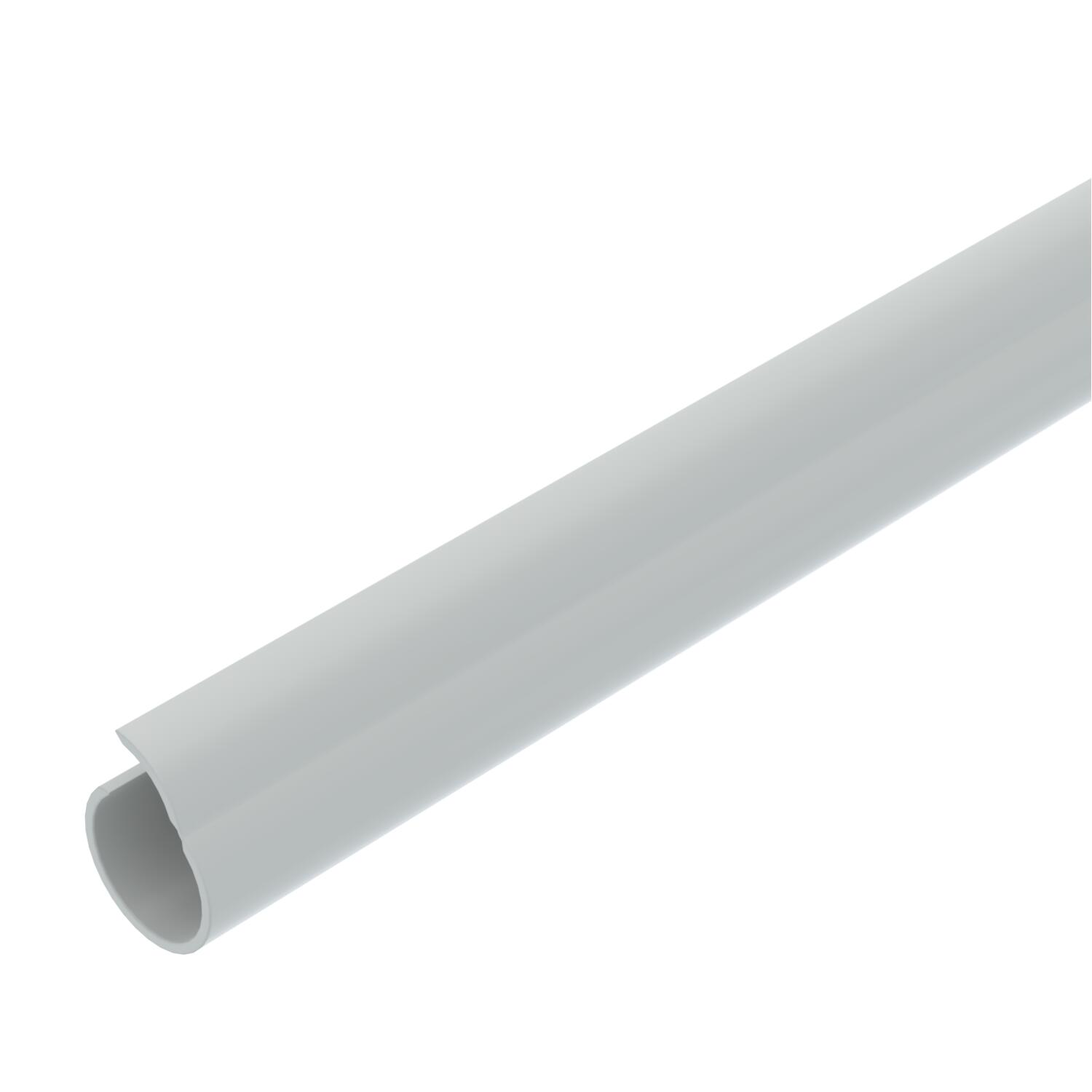

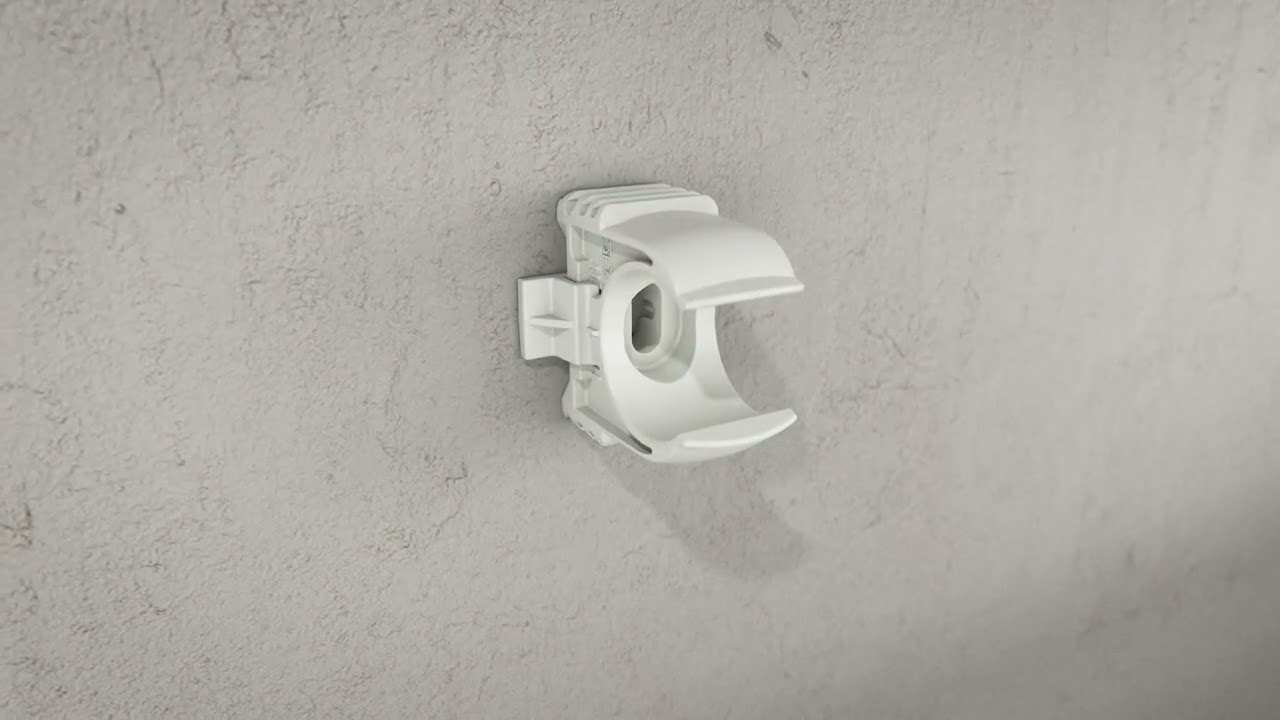

Open plastic Quick pipe pipe for surface-mounted routing of cables in interiors and protected outdoor areas. Mounting on wall and ceiling with Quick clip, starQuick clip and Multi-Quick clip. Toolless closing and opening through turning in the clip. Can be used in a temperature range of –25 to +60 °C.
- Technical data
-
Technical data

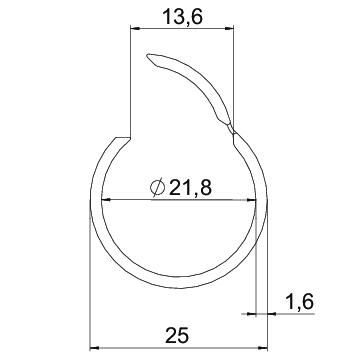

Colour Light grey; RAL 7035 Concealed no Concrete installation no Dimension M25 Dimension C 13.6 mm Dimension D 25 mm Dimension m (mm) 21,8 Dimension t 1,6 mm Flame-resistant version no Halogen-free no Installation in the earth no Installation on wood yes Installation outdoors no Length 2000 mm Machines and system installation yes Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -25 °C Size M25 Surface-mounted yes Underfloor installation (screed) no With sleeve no - All types
- Downloads
-
Data sheet 2953 M25 LGR / 2153920 , 0.22MB , pdfBrochure Quick Pipe , 1.41MB , pdfREACH Declaration of conformity 2953 M25 LGR / 2153920 , 0.12MB , pdfRoHS Declaration of conformity 2953 M25 LGR / 2153920 , 0.12MB , pdf
