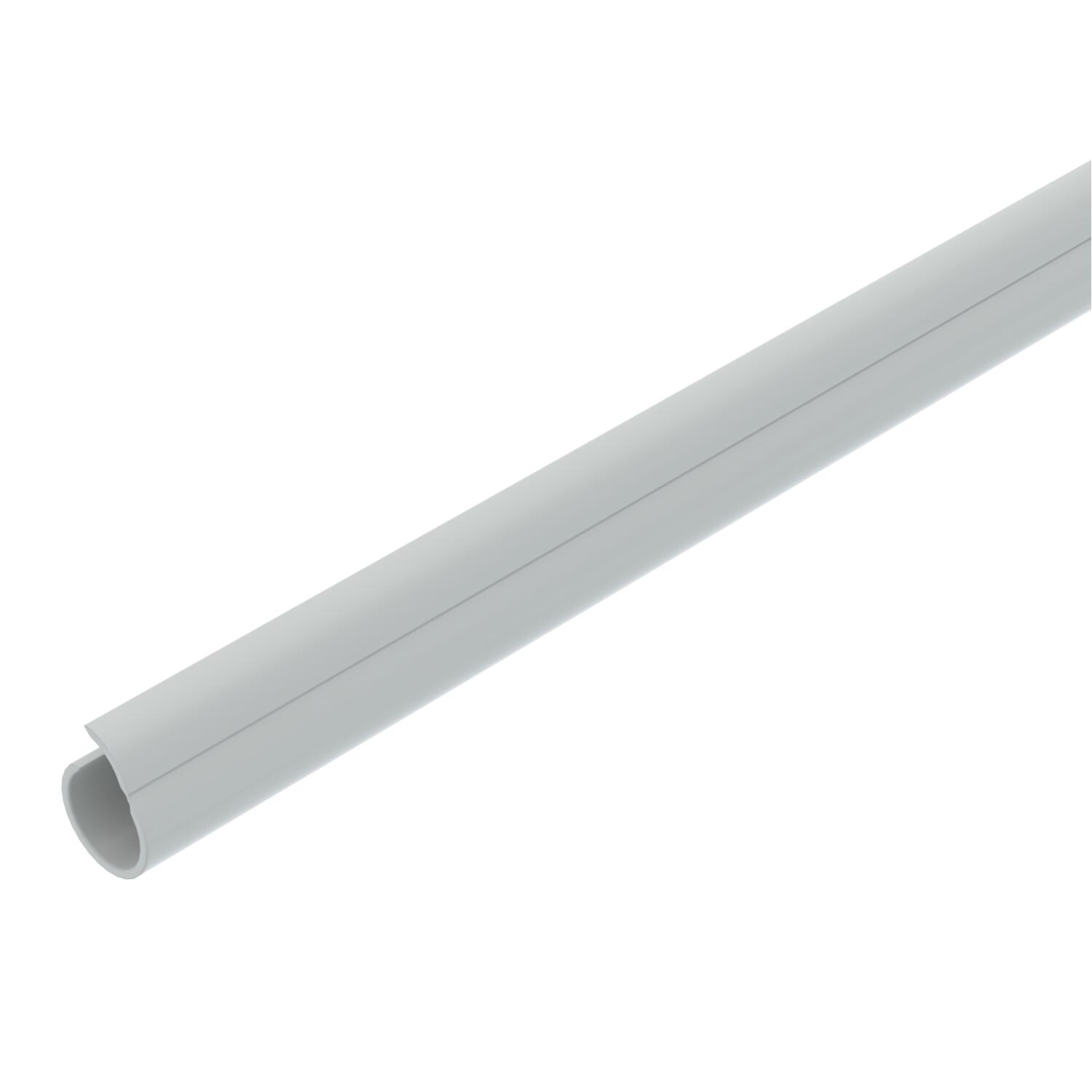

Quick pipe, light grey
Item no. 2153904 | EAN 4012195028093
- Product description
-
Product description
Open plastic Quick pipe pipe for surface-mounted routing of cables in interiors and protected outdoor areas. Mounting on wall and ceiling with Quick clip, starQuick clip and Multi-Quick clip. Toolless closing and opening through turning in the clip. Can be used in a temperature range of –25 to +60 °C.
-
- Technical data
-
Technical data
Colour Light grey; RAL 7035 Concealed no Concrete installation no Dimension M16 Flame-resistant version no Halogen-free no Installation in the earth no Installation on wood yes Installation outdoors no Machines and system installation yes Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -25 °C Size M16 Surface-mounted yes Underfloor installation (screed) no With sleeve no Dimensions

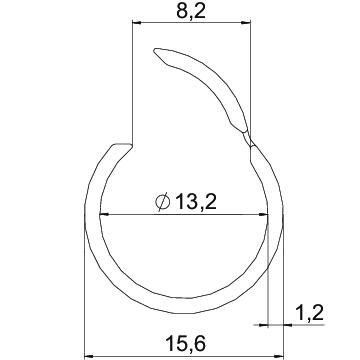

Dimension C 8.2 mm Dimension D 15,6 mm Dimension m (mm) 13,2 Dimension t 1,2 mm Length 2000 mm - All types
-
System accessories
Products Types Item no. Quantity SSU

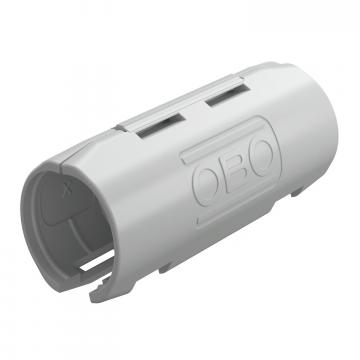

Quick pipe connecting sleeve, light grey
3000 MMS M16 LGR 2154081 10 piece

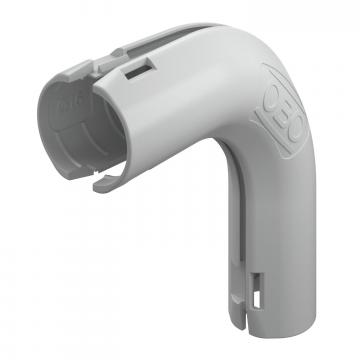

90° Quick pipe bend, light grey
3000 BMS M16 LGR 2154052 10 piece Mounting accessories
Products Types Item no. Quantity SSU
Pipe end cap, splittable, metric, light grey
129 TB M16 2047812 50 piece

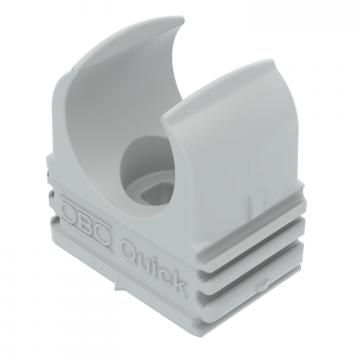

Quick clip, light grey
2955 M16 2149004 100 piece - Downloads
-
Data sheet 2953 M16 LGR / 2153904 , 0.27MB , pdfBrochure Quick Pipe , 1.41MB , pdfDeclaration of conformity 2953 M16 LGR / 2153904 , 0.05MB , pdfREACH Declaration of conformity 2953 M16 LGR / 2153904 , 0.12MB , pdfRoHS Declaration of conformity 2953 M16 LGR / 2153904 , 0.12MB , pdf
