- Product description
-

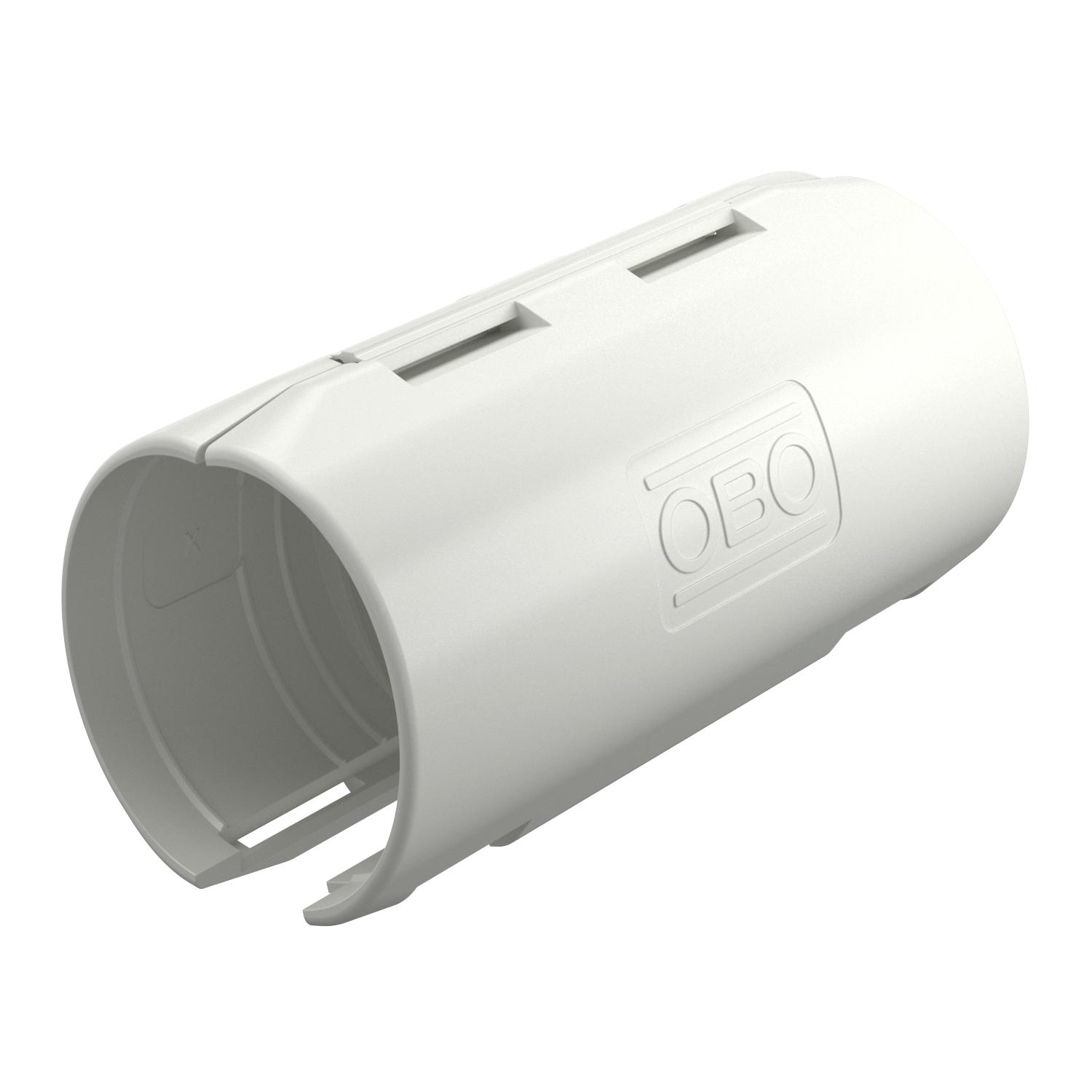

Product descriptionConnection sleeve for plastic electrical installation pipes to create straight connections. Suitable for Quick pipe pipes or corrugated pipes. Toolless closing and opening. Can be used in a temperature range of –25 to +60 °C.
- Technical data
-
Technical data

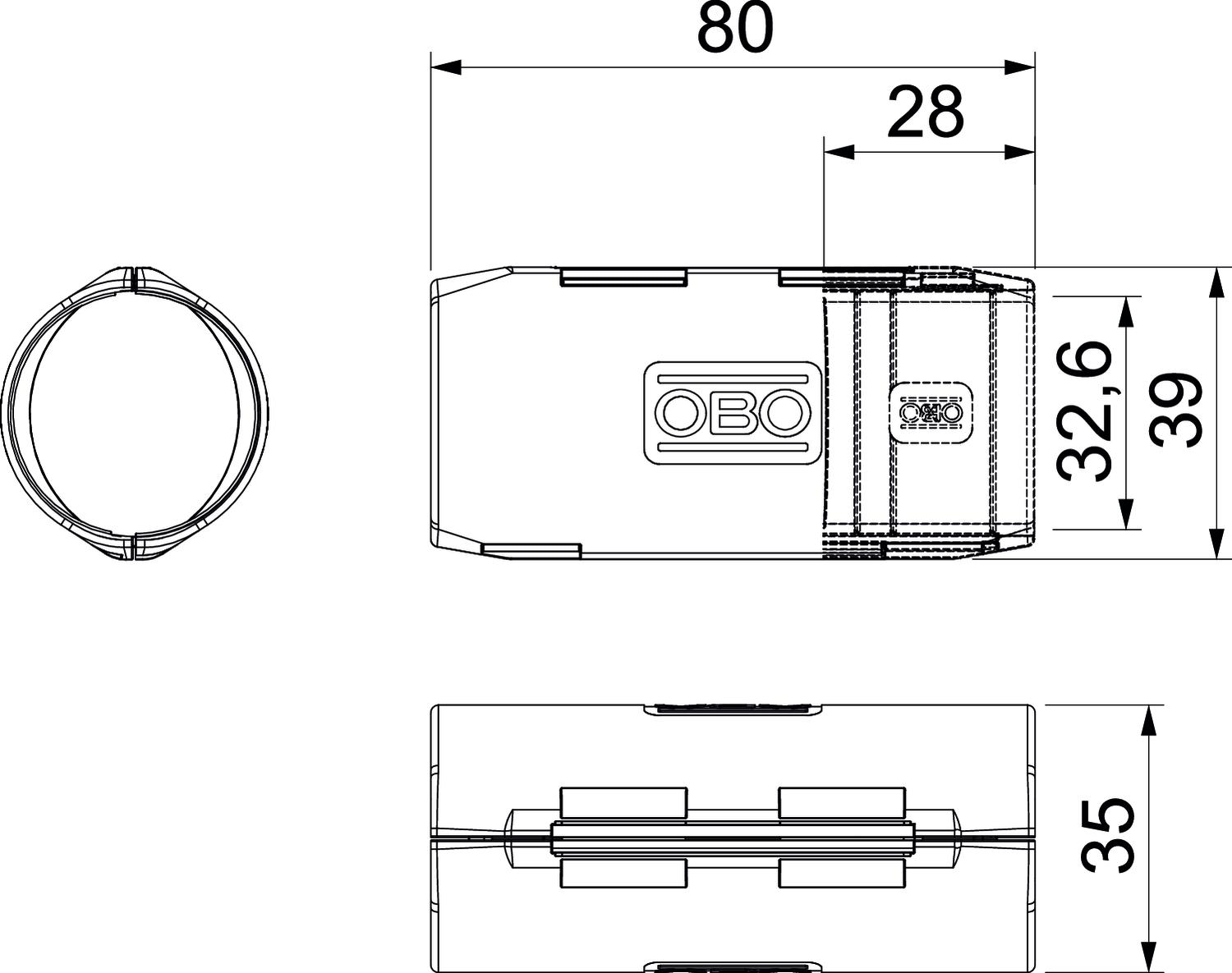

Colour Pure white; RAL 9010 Dimension M32 Dimension B 39 mm Dimension d 32,6 mm Dimension L 80 mm Dimension L1 28 mm Halogen-free yes Material Polypropylene Permitted temperature range, max. 60 °C Polished surface no Size M32 - All types
- Downloads
-
Data sheet 3000 MMS M32 RW / 2154097 , 0.20MB , pdfBrochure Quick Pipe , 1.41MB , pdfREACH Declaration of conformity 3000 MMS M32 RW / 2154097 , 0.12MB , pdfRoHS Declaration of conformity 3000 MMS M32 RW / 2154097 , 0.12MB , pdf
