Quick pipe connecting sleeve, pure white
morepic-1 morepic-2

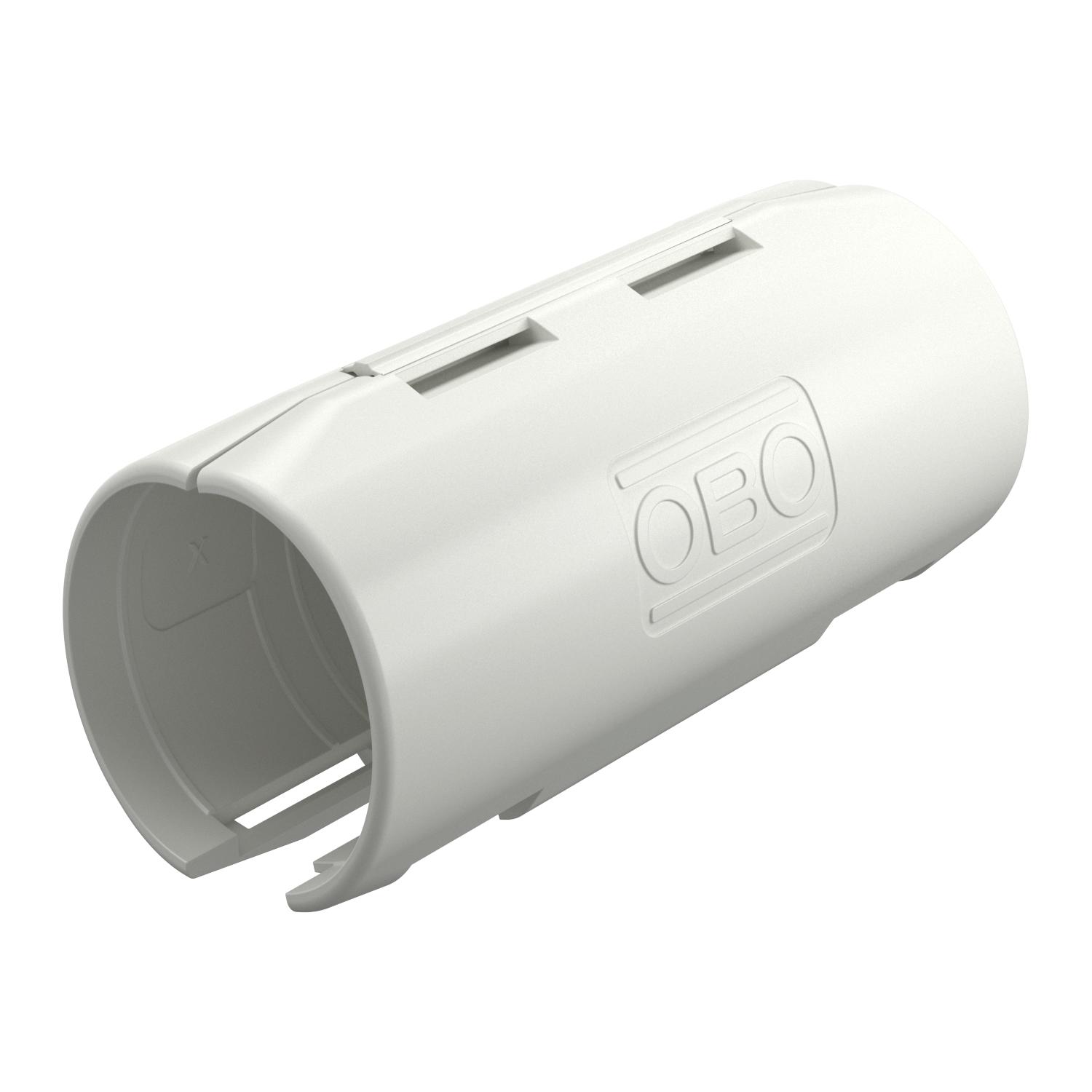

Quick pipe connecting sleeve, pure white

Item no. 2154095 | EAN 4012196870158

Product description
Product description
Connection sleeve for plastic electrical installation pipes to create straight connections. Suitable for Quick pipe pipes or corrugated pipes. Toolless closing and opening. Can be used in a temperature range of –25 to +60 °C.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 44
  • Thread metric
Technical data

Technical data

Colour Pure white; RAL 9010

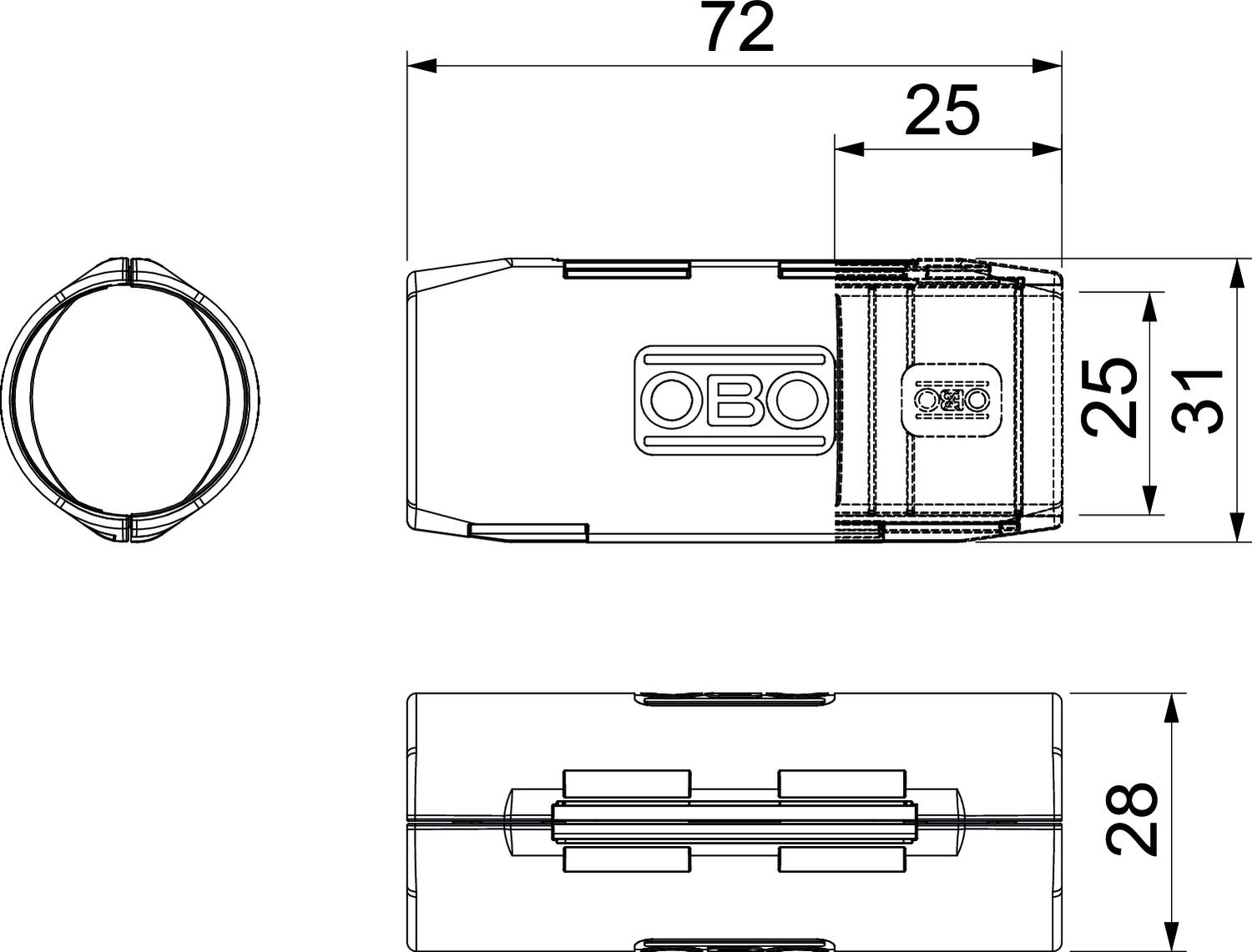

Dimension M25
Dimension B 31 mm
Dimension d 25 mm
Dimension L 72 mm
Dimension L1 25 mm
Halogen-free yes
Material Polypropylene
Permitted temperature range, max. 60 °C
Polished surface no
Size M25
All types

All types

Types Thread Item no. Quantity SSU
3000 MMS M16 RW 2154091
10 piece
3000 MMS M20 RW 2154093
10 piece
3000 MMS M25 RW 2154095
10 piece
3000 MMS M32 RW 2154097
10 piece
Downloads

Download

Download
Download

REACH Declaration of conformity 3000 MMS M25 RW / 2154095 , 0.12MB , pdf
Download
RoHS Declaration of conformity 3000 MMS M25 RW / 2154095 , 0.12MB , pdf
Download

Download

3000 MMS M25 RW / 2154095
