Note: This article is discontinued. You can find the current article here: 2154083 / Quick pipe connecting sleeve, light grey
Quick pipe connecting sleeve, light grey M20
morepic-1 morepic-2 video-1

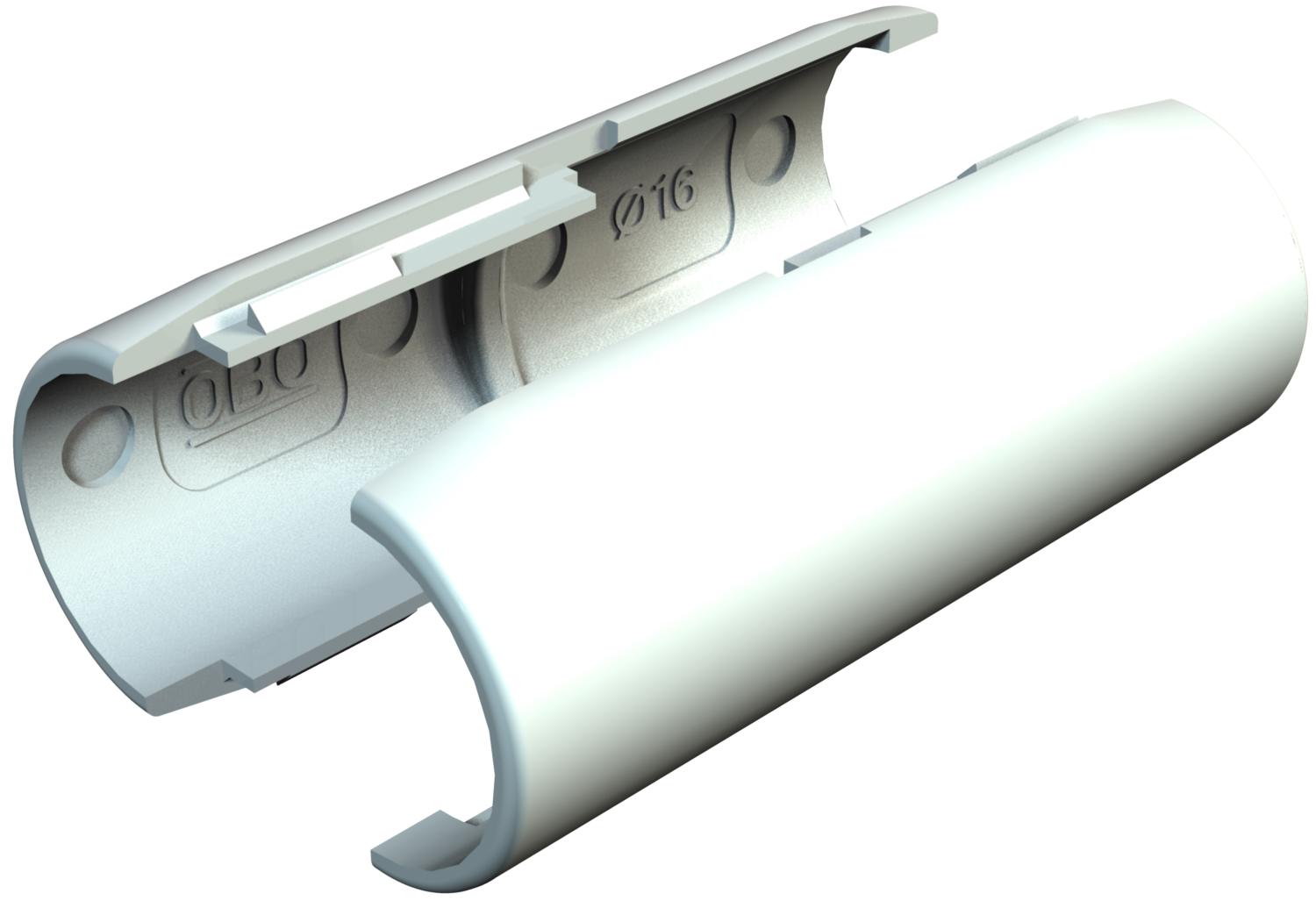

Quick pipe connecting sleeve, light grey

Item no. 2153831 | EAN 4012195469391

Product description
Product description
Connection sleeve for plastic electrical installation pipes to create straight connections. Suitable for Quick pipe pipes or corrugated pipes. Toolless closing and opening. Can be used in a temperature range of –25 to +60 °C.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 44
  • Thread metric
Technical data

Technical data

Colour Light grey; RAL 7035
CO₂ Footprint (GWP) Cradle-to-Gate 0,047 kg CO₂e / 1 Piece
Dimension M20

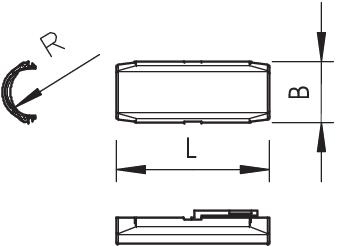

Dimension B 25,5 mm
Dimension L 65 mm
Dimension R 10,1 mm
Halogen-free no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Polished surface no
Size M20
Thread M20
All types

All types

Types Thread Item no. Quantity SSU
2953 M M20 LGR M20 2153831
10 piece
2953 M M25 LGR M25 2153833
10 piece
Downloads

Download

Download
Download

REACH Declaration of conformity 2953 M M20 LGR / 2153831 , 0.12MB , pdf
Download
RoHS Declaration of conformity 2953 M M20 LGR / 2153831 , 0.12MB , pdf
Download

Download

2953 M M20 LGR / 2153831
