Quick pipe connecting sleeve, light grey
morepic-1 morepic-2

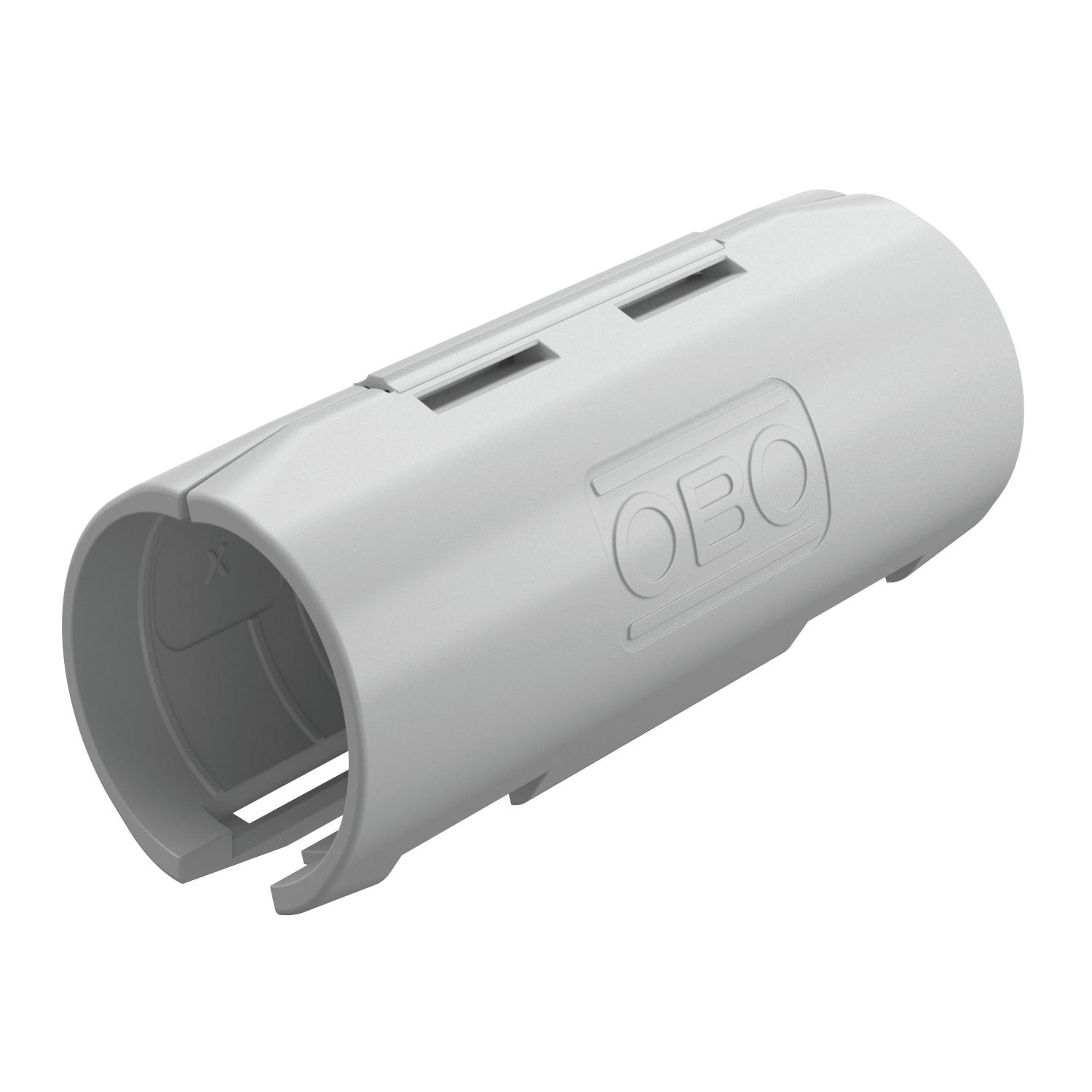

Quick pipe connecting sleeve, light grey

Item no. 2154083 | EAN 4012196870080

Product description
Product description
Connection sleeve for plastic electrical installation pipes to create straight connections. Suitable for Quick pipe pipes or corrugated pipes. Toolless closing and opening. Can be used in a temperature range of –25 to +60 °C.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 44
  • Thread metric
Technical data

Technical data

Colour Light grey; RAL 7035

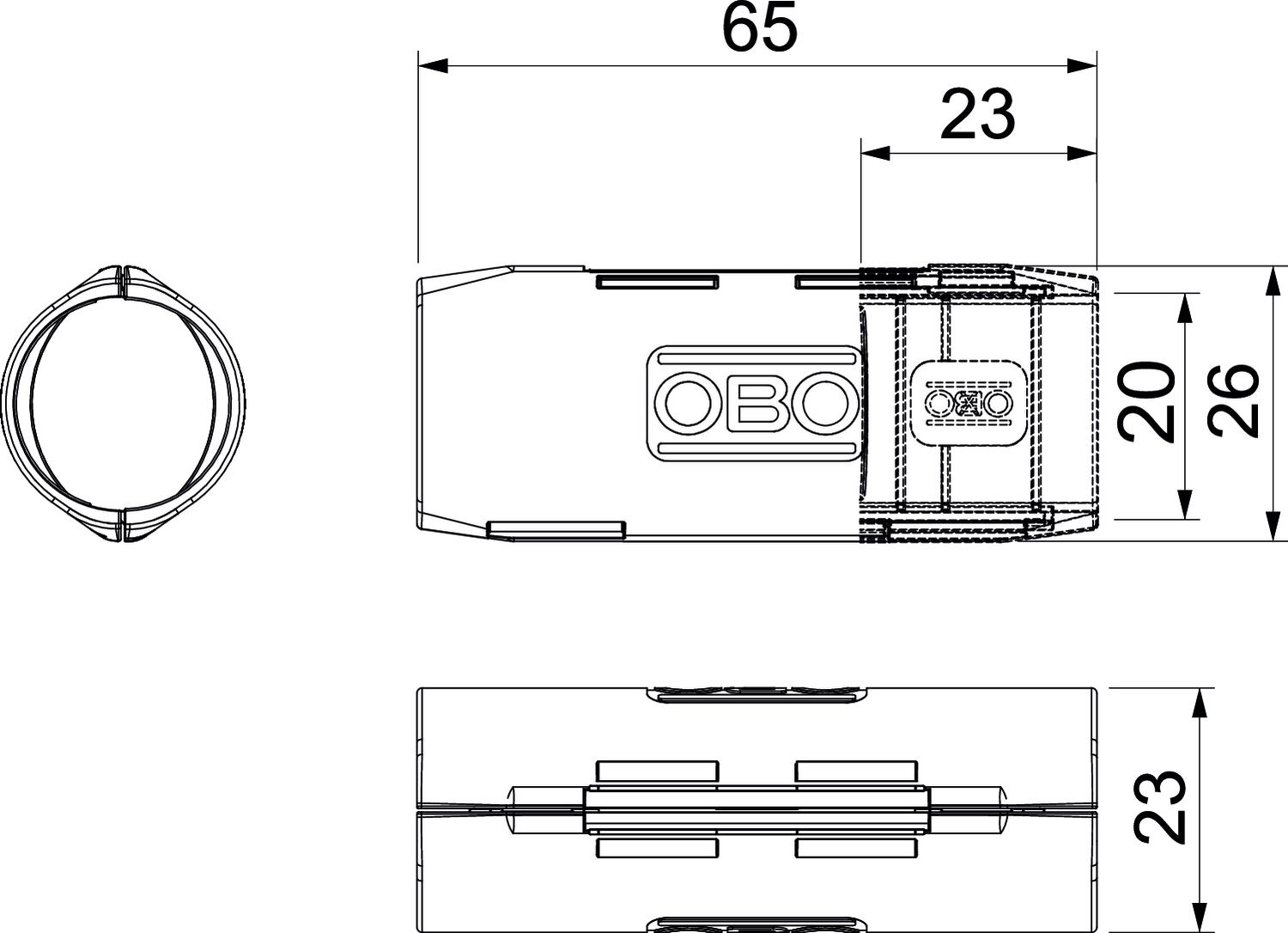

Dimension M20
Dimension B 26 mm
Dimension d 20 mm
Dimension L 65 mm
Dimension L1 23 mm
Halogen-free yes
Material Polypropylene
Permitted temperature range, max. 60 °C
Polished surface no
Size M20
All types

All types

Types Thread Item no. Quantity SSU
3000 MMS M16 LGR 2154081
10 piece
3000 MMS M20 LGR 2154083
10 piece
3000 MMS M25 LGR 2154085
10 piece
3000 MMS M32 LGR 2154087
10 piece
