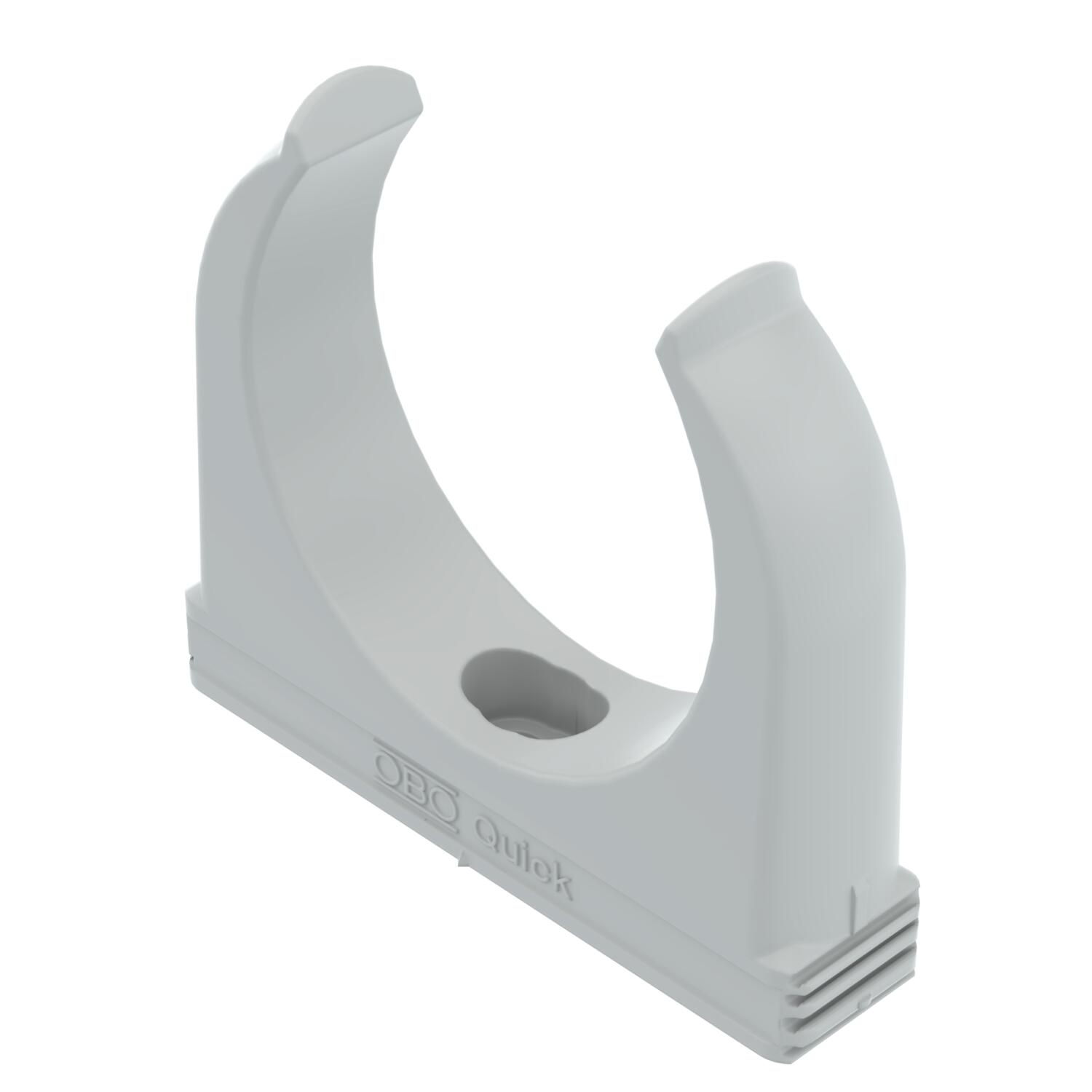

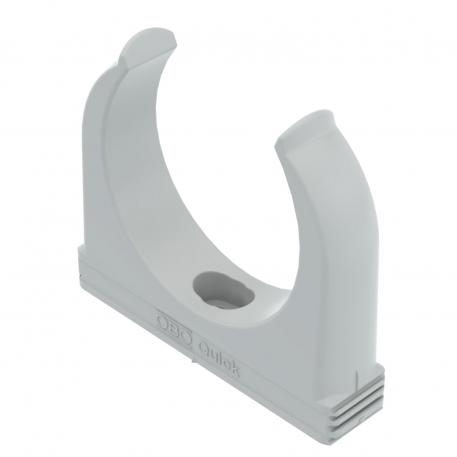

Quick clip, light grey
Item no. 2149040 | EAN 4012195588252
- Product description
-
Product description
Flush-mounted clip to accept metric steel armoured pipes and heavy-duty insulating pipes, as well as Quick Pipe electrical installation pipes. Universal fastening options on walls and ceilings, both in indoor and protected outdoor areas. With slot for side alignment during mounting with wood screw or knock-in anchor. Toolless pipe mounting. Can also be arranged with OBO Multi-Quick or starQuick clip. M16 - M32 size can be screwed onto M6 thread. Recommended fastening spacing 50–60 cm, for max. extraction values F at a room temperature of 20 °C, see the table.
-
- Technical data
-
Technical data

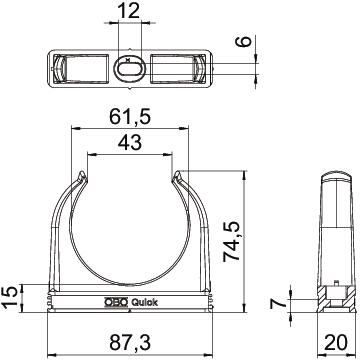

Breaking load 0,23 kN Clamping range D, max. 63 mm Clamping range D, min. 63 mm Closed no Colour Light grey; RAL 7035 Dimension M63 Dimension A 87,3 mm Dimension B 20 mm Dimension C 43 mm Dimension D 61,5 mm Dimension E 12 mm Dimension F 6 mm Dimension h 15 mm Dimension H 74,5 mm Expandable yes Fastening type Screw hole Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C Halogen-free yes Material Polypropylene Nominal size/text M63 Number of cables/pipes 1 Pull-out value 175 N UV-resistant no With inlay no - All types
