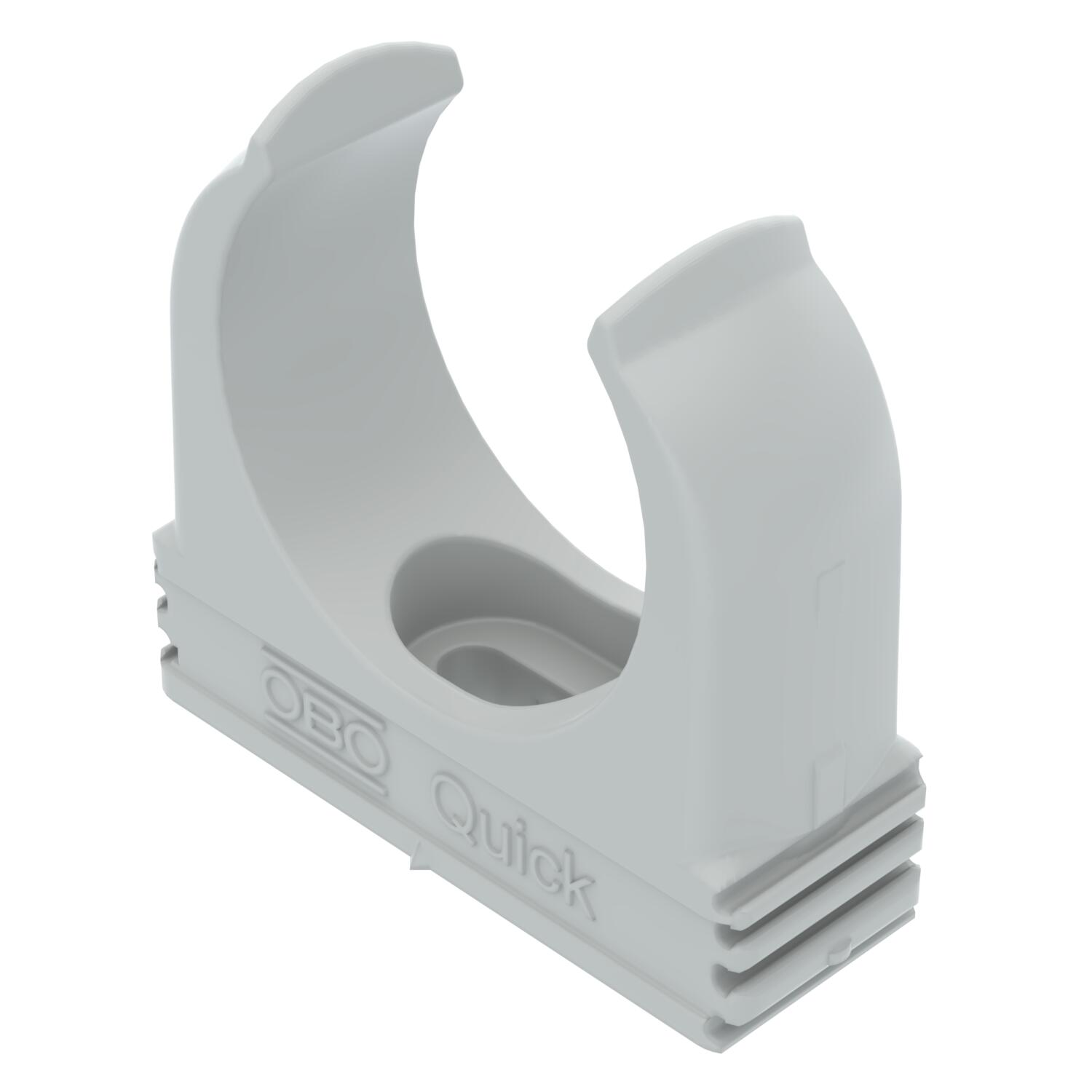

Quick clip, light grey
Item no. 2149022 | EAN 4012195584056
- Product description
-
Product descriptionFlush-mounted clip to accept metric steel armoured pipes and heavy-duty insulating pipes, as well as Quick-Pipe® electrical installation pipes. Universal fastening options on walls and ceilings, both in indoor and protected outdoor areas. With slot for side alignment during mounting with wood screw or knock-in anchor. Toolless pipe mounting. Can also be arranged with OBO Multi-Quick or proQuick clip. M16 - M32 size can be screwed onto M6 thread. Recommended fastening spacing 50–60 cm, for max. extraction values F at a room temperature of 20 °C, see the table.
-
- Technical data
-
Technical data

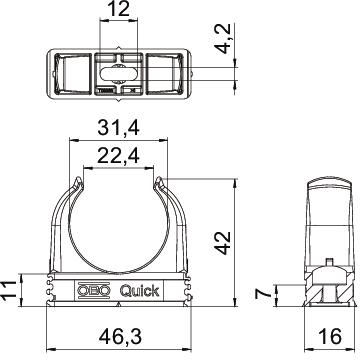

Breaking load 0,12 kN Clamping range D, max. 32 mm Clamping range D, min. 32 mm Closed no Colour Light grey; RAL 7035 Dimension M32 Dimension A 46,3 mm Dimension B 16 mm Dimension C 22,4 mm Dimension D 31,4 mm Dimension E 12 mm Dimension F 4,2 mm Dimension H 42 mm Dimension h 11 mm Expandable yes Fastening type Screw hole Halogen-free yes Material Polypropylene Nominal size M32 Number of cables/pipes 1 Pull-out value 100 N UV-resistant no With inlay no - All types
- Downloads
-
Data sheet 2955 M32 / 2149022 , 0.21MB , pdfBrochure Quick Pipe , 1.41MB , pdfEU declaration of conformity 2955 M32 / 2149022 , 0.10MB , pdfUK Declaration of Conformity 2955 M32 / 2149022 , 0.09MB , pdfREACH Declaration of conformity 2955 M32 / 2149022 , 0.12MB , pdfRoHS Declaration of conformity 2955 M32 / 2149022 , 0.13MB , pdfLabel approval VDE symbol approval, Quick clip , 0.48MB , pdf
