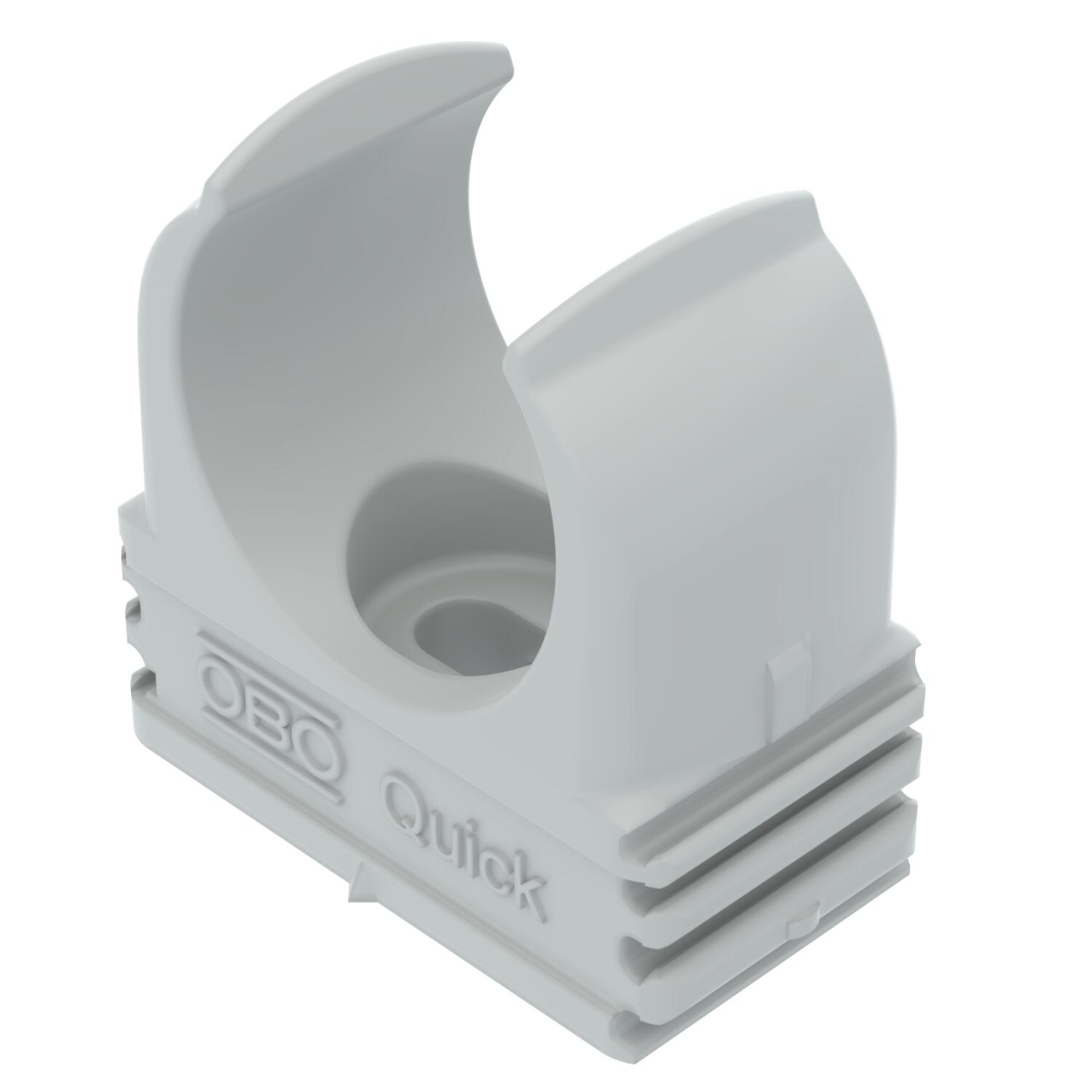

Quick clip, light grey
Item no. 2149010 | EAN 4012195583936
- Product description
-
Product descriptionFlush-mounted clip to accept metric steel armoured pipes and heavy-duty insulating pipes, as well as Quick-Pipe® electrical installation pipes. Universal fastening options on walls and ceilings, both in indoor and protected outdoor areas. With slot for side alignment during mounting with wood screw or knock-in anchor. Toolless pipe mounting. Can also be arranged with OBO Multi-Quick or proQuick clip. M16 - M32 size can be screwed onto M6 thread. Recommended fastening spacing 50–60 cm, for max. extraction values F at a room temperature of 20 °C, see the table.
-
- Technical data
-
Technical data

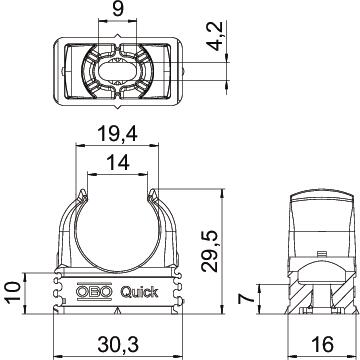

Breaking load 0,09 kN Clamping range D, max. 20 mm Clamping range D, min. 20 mm Closed no Colour Light grey; RAL 7035 Dimension M20 Dimension A 30,3 mm Dimension B 16 mm Dimension C 14 mm Dimension D 19,4 mm Dimension E 9 mm Dimension F 4,2 mm Dimension H 29,5 mm Dimension h 10 mm Expandable yes Fastening type Screw hole Halogen-free yes Material Polypropylene Nominal size M20 Number of cables/pipes 1 Pull-out value 75 N UV-resistant no With inlay no - All types
- Downloads
-
Data sheet 2955 M20 / 2149010 , 0.27MB , pdfBrochure Quick Pipe , 1.41MB , pdfEU declaration of conformity 2955 M20 / 2149010 , 0.10MB , pdfUK Declaration of Conformity 2955 M20 / 2149010 , 0.09MB , pdfREACH Declaration of conformity 2955 M20 / 2149010 , 0.12MB , pdfRoHS Declaration of conformity 2955 M20 / 2149010 , 0.13MB , pdfLabel approval VDE symbol approval, Quick clip , 0.48MB , pdf
