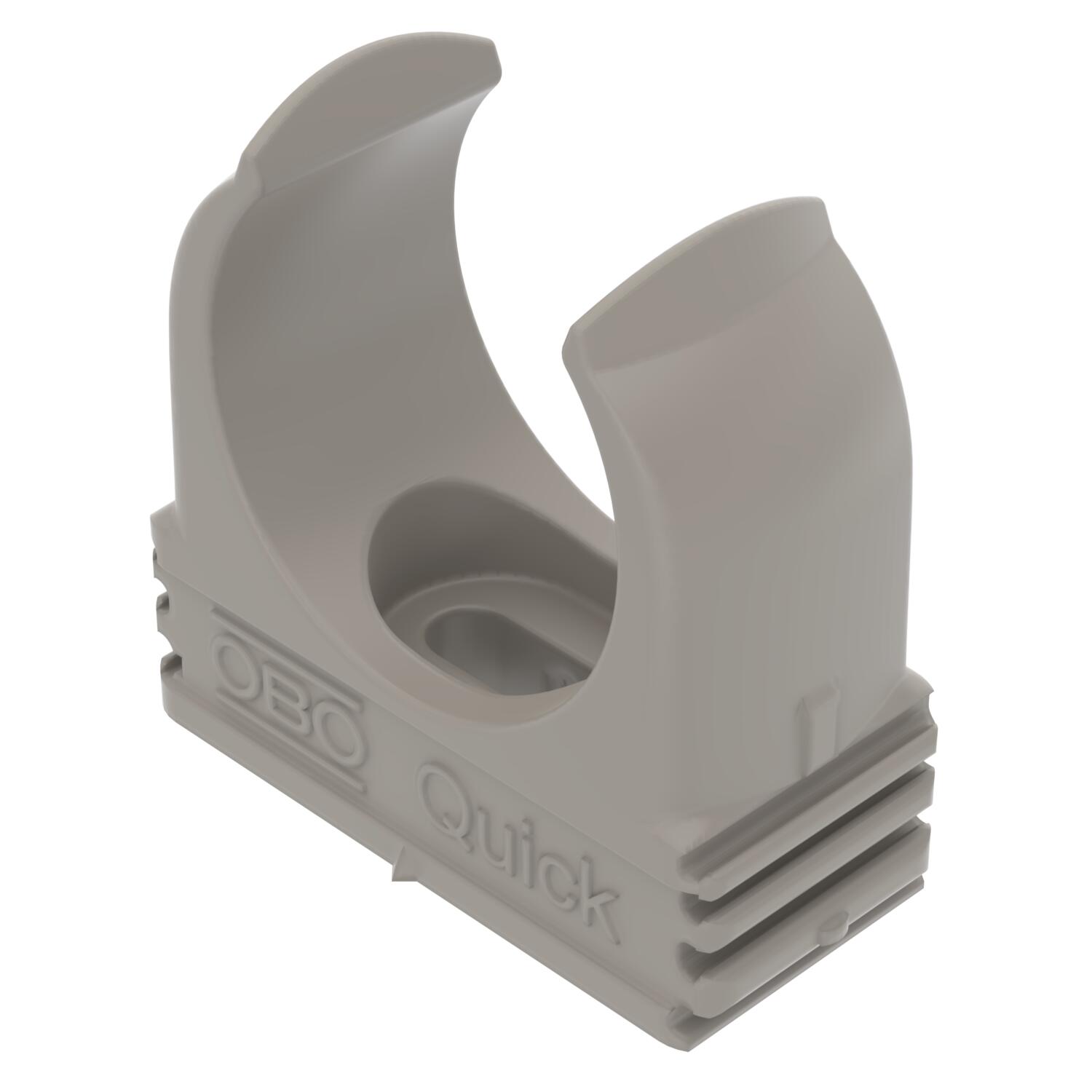

Quick Clip, flame-resistant, stone grey

Item no. 2149315 | EAN 4012195585312

Product description

Product description

Flame-resistant, flush-mounted clip to accept metric steel armoured pipes and heavy-duty insulating pipes, as well as Quick Pipe electrical installation pipes. Universal fastening options on walls and ceilings, both in indoor and protected outdoor areas. With slot for side alignment during mounting with wood screw or knock-in anchor. Toolless pipe mounting. Can also be arranged with OBO Multi-Quick or starQuick clip. M16 - M32 size can be screwed onto M6 thread. Recommended fastening spacing 50–60 cm, for max. extraction values F at a room temperature of 20 °C, see the table.
  • Indication of metric products
  • Thread metric
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 960 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Closed no
Colour Stone grey; RAL 7030

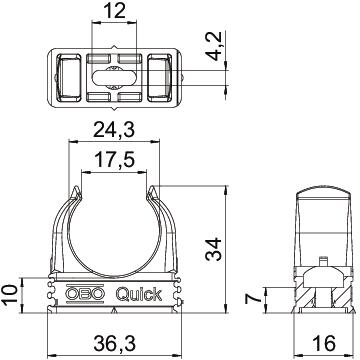

Dimension M25
Dimension A 36,3 mm
Dimension B 16 mm
Dimension C 17,5 mm
Dimension D 24,3 mm
Dimension E 12 mm
Dimension F 4,2 mm
Dimension H 34 mm
Dimension h 10 mm
Expandable yes
Fastening type Screw hole
Flame-resistant Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 750°C
Halogen-free yes
Material Polypropylene
Nominal size/text M25
Number of cables/pipes 1
Pull-out value 90 N
UV-resistant no
With inlay no
All types

All types

Types Nominal size/text Item no. Quantity SSU
2955 F M16 STGR M16 2149303
100 piece
2955 F M20 STGR M20 2149309
100 piece
2955 F M25 STGR M25 2149315
100 piece
2955 F M32 STGR M32 2149321
50 piece
2955 F M40 STGR M40 2149327
50 piece
2955 F M50 STGR M50 2149333
25 piece
2955 F M63 STGR M63 2149339
20 piece
