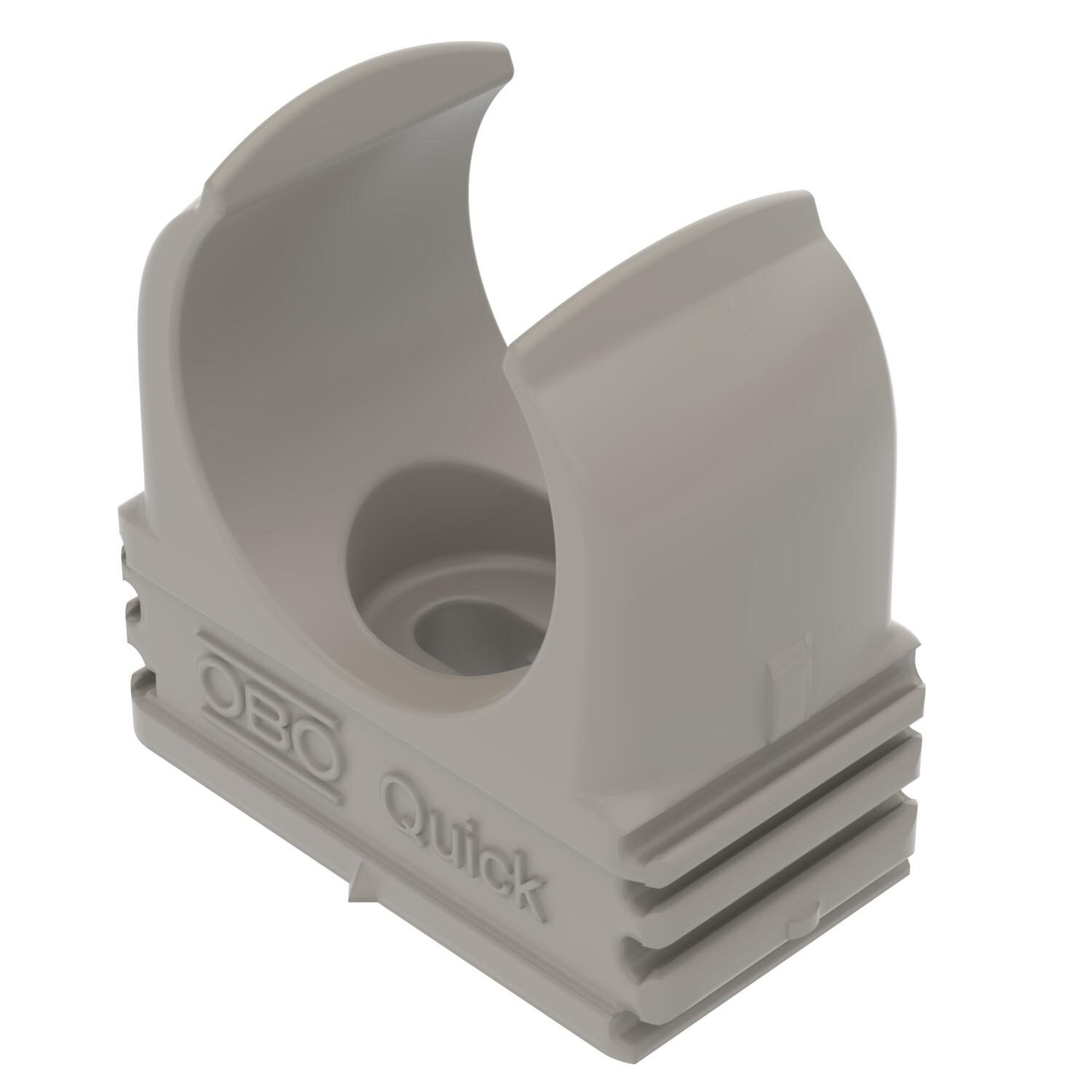

Quick Clip, flame-resistant, stone grey
Item no. 2149309 | EAN 4012195585251
- Product description
-
Product descriptionFlame-resistant, flush-mounted clip to accept metric steel armoured pipes and heavy-duty insulating pipes, as well as Quick-Pipe® electrical installation pipes. Universal fastening options on walls and ceilings, both in indoor and protected outdoor areas. With slot for side alignment during mounting with wood screw or knock-in anchor. Toolless pipe mounting. Can also be arranged with OBO Multi-Quick or proQuick clip. M16 - M32 size can be screwed onto M6 thread. Recommended fastening spacing 50–60 cm, for max. extraction values F at a room temperature of 20 °C, see the table.
-
- Technical data
-
Technical data

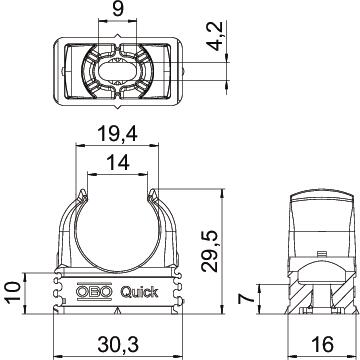

Closed no Colour Stone grey; RAL 7030 CO₂ Footprint (GWP) Cradle-to-Gate 0,0119 kg CO₂e / 1 Piece Dimension M20 Dimension A 30,3 mm Dimension B 16 mm Dimension C 14 mm Dimension D 19,4 mm Dimension E 9 mm Dimension F 4,2 mm Dimension h 10 mm Dimension H 29,5 mm Expandable yes Fastening type Screw hole Flame-resistant Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 750°C Halogen-free yes Material Polypropylene Nominal size M20 Number of cables/pipes 1 Pull-out value 75 N UV-resistant no With inlay no - All types
