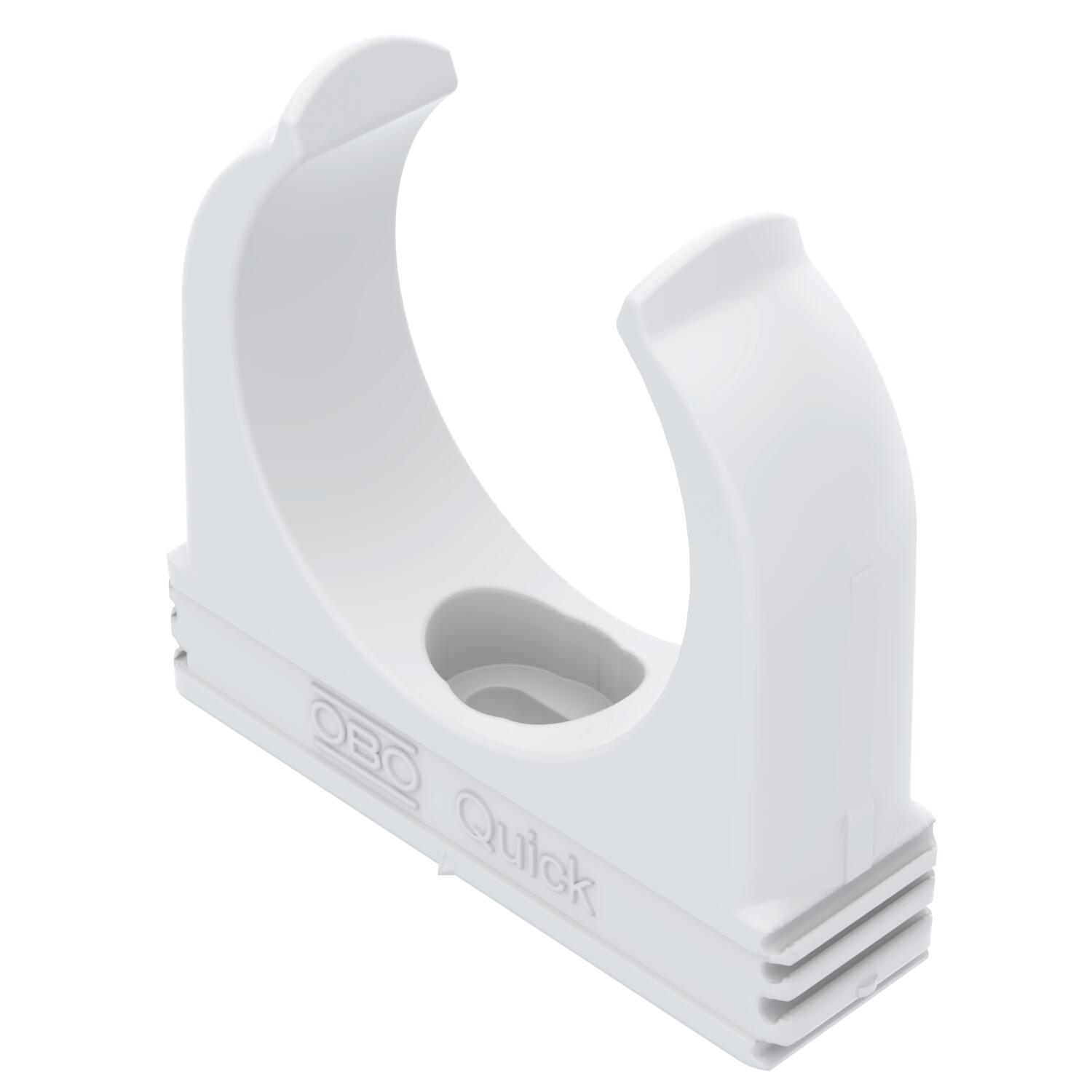

Quick clip, flame-resistant, pure white
Item no. 2149375 | EAN 4012195586456
- Product description
-
Product descriptionFlame-resistant, flush-mounted clip to accept metric steel armoured pipes and heavy-duty insulating pipes, as well as Quick-Pipe® electrical installation pipes. Universal fastening options on walls and ceilings, both in indoor and protected outdoor areas. With slot for side alignment during mounting with wood screw or knock-in anchor. Toolless pipe mounting. Can also be arranged with OBO Multi-Quick or proQuick clip. M16 - M32 size can be screwed onto M6 thread. Recommended fastening spacing 50–60 cm, for max. extraction values F at a room temperature of 20 °C, see the table.
-
- Technical data
-
Technical data

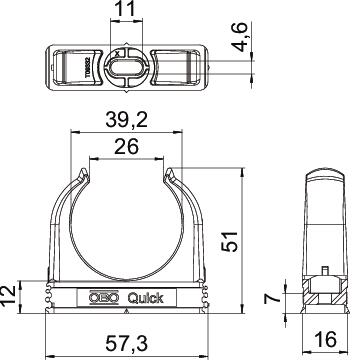

Clamping range D, max. 40 mm Clamping range D, min. 40 mm Closed no Colour Pure white; RAL 9010 Dimension M40 Dimension A 57,3 mm Dimension B 16 mm Dimension C 26,0 mm Dimension D 39,2 mm Dimension E 11 mm Dimension F 4,6 mm Dimension h 12 mm Dimension H 51 mm Expandable yes Fastening type Screw hole Flame-resistant Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 750°C Halogen-free yes Material Polypropylene Nominal size M40 Number of cables/pipes 1 Pull-out value 110 N UV-resistant no With inlay no - All types
