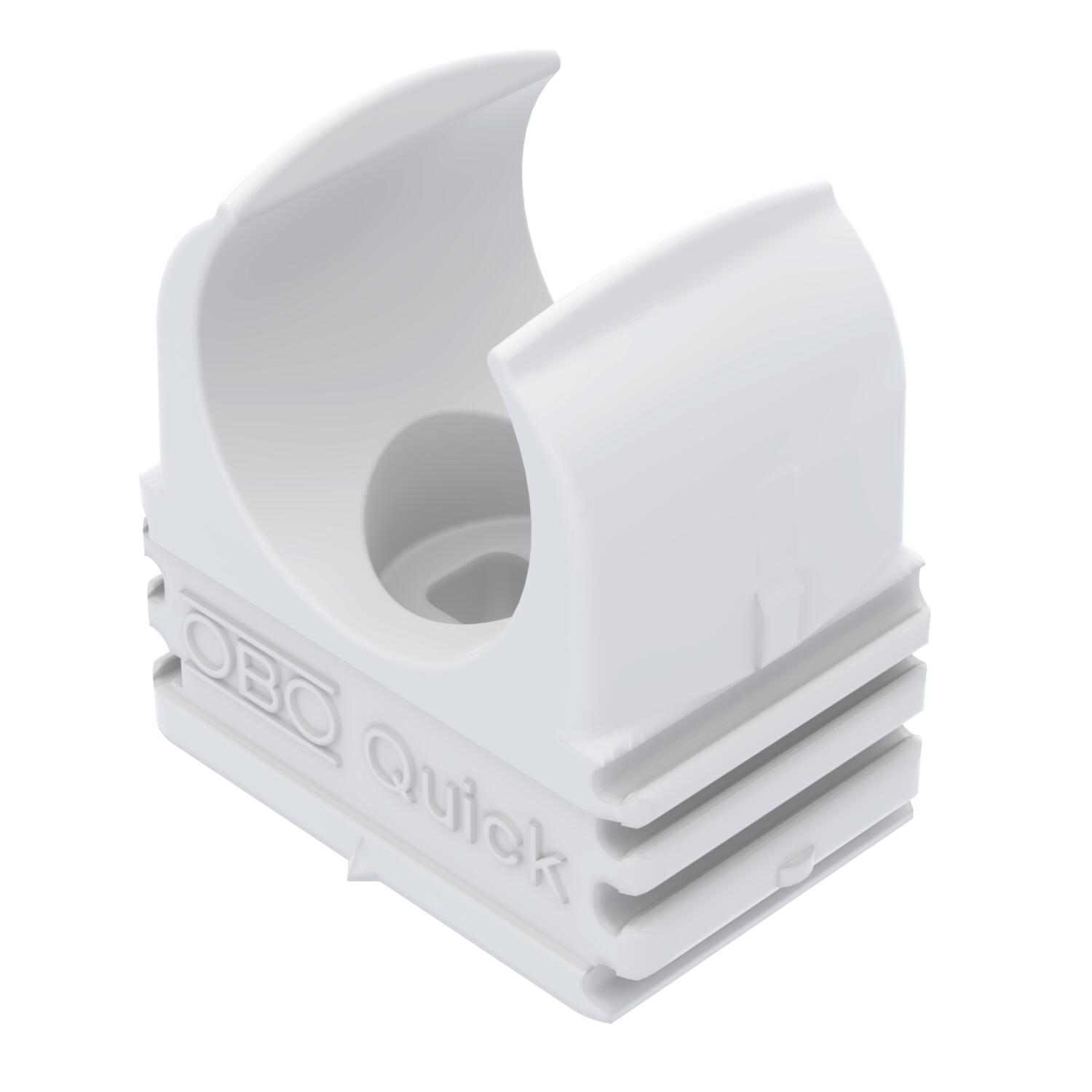

Quick clip, flame-resistant, pure white

Item no. 2149351 | EAN 4012195585671

Product description

Product description

Flame-resistant, flush-mounted clip to accept metric steel armoured pipes and heavy-duty insulating pipes, as well as Quick Pipe electrical installation pipes. Universal fastening options on walls and ceilings, both in indoor and protected outdoor areas. With slot for side alignment during mounting with wood screw or knock-in anchor. Toolless pipe mounting. Can also be arranged with OBO Multi-Quick or starQuick clip. M16 - M32 size can be screwed onto M6 thread. Recommended fastening spacing 50–60 cm, for max. extraction values F at a room temperature of 20 °C, see the table.
  • Indication of metric products
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 750 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread metric
Technical data

Technical data

Clamping range D, max. 16 mm
Clamping range D, min. 16 mm
Closed no
Colour Pure white; RAL 9010

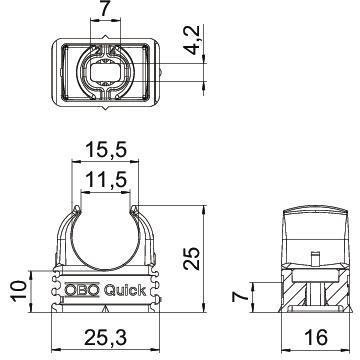

Dimension M16
Dimension A 25,3 mm
Dimension B 16 mm
Dimension C 11,5 mm
Dimension D 15,5 mm
Dimension E 7 mm
Dimension F 4,2 mm
Dimension h 10 mm
Dimension H 25 mm
Expandable yes
Fastening type Screw hole
Flame-resistant Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 750°C
Halogen-free yes
Material Polypropylene
Nominal size/text M16
Number of cables/pipes 1
Pull-out value 65 N
UV-resistant no
With inlay no
All types

All types

Types Nominal size/text Item no. Quantity SSU
2955 F M16 RW M16 2149351
100 piece
2955 F M20 RW M20 2149357
100 piece
2955 F M25 RW M25 2149363
100 piece
2955 F M32 RW M32 2149369
50 piece
2955 F M40 RW M40 2149375
50 piece
