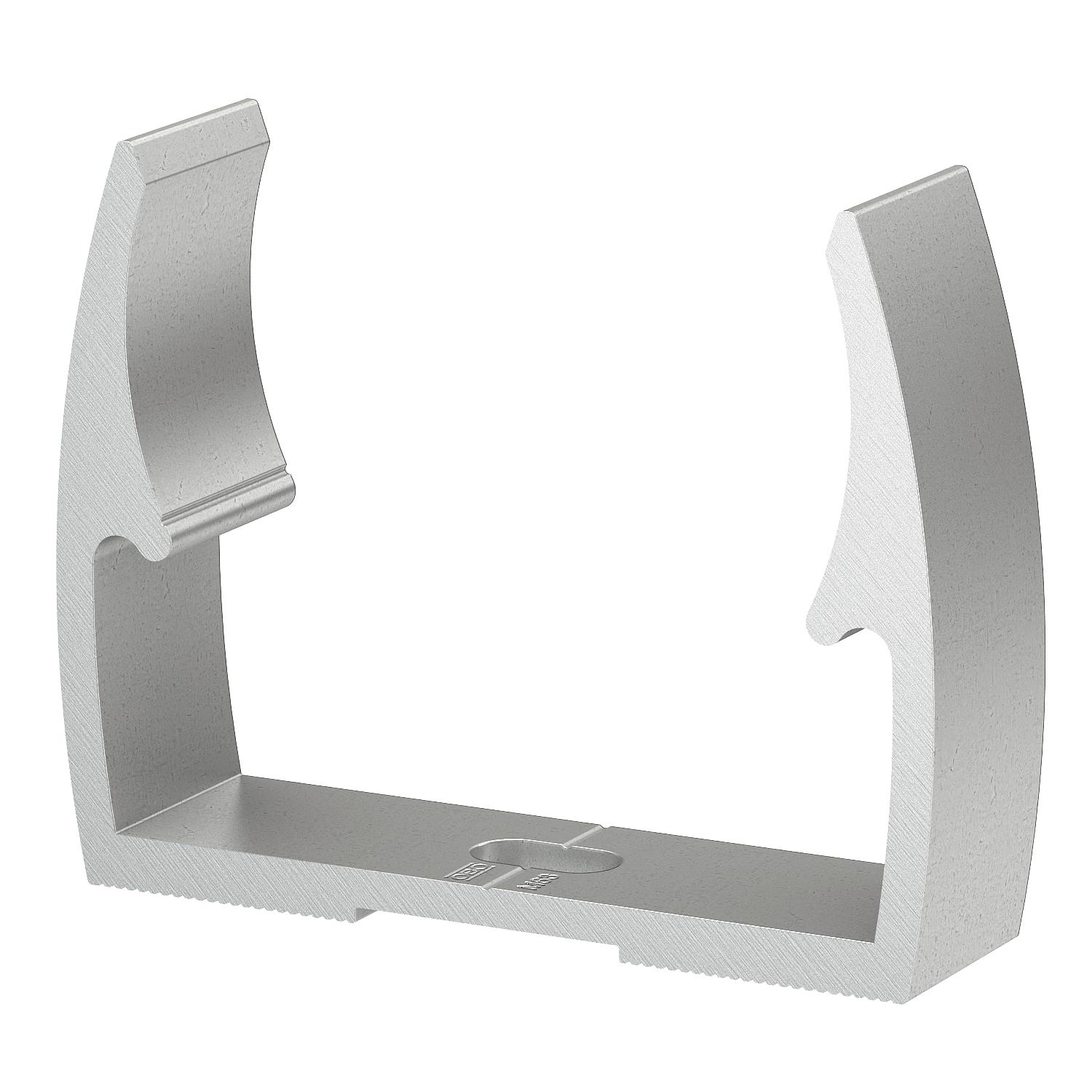

Quick clip, aluminium

Item no. 2149940 | EAN 4012196409273

Item no. / Types

Nominal size/text

Product description

Product description

OBO Quick clip, type ALQ M, for all metric ALU pipe systems, as well as light-duty and heavy-duty insulation pipes. Suitable for mounting the OBO pipe system, material: aluminium. Pipe centring aids allow optimal attachment of the pipe and automatically turn the clip into the correct position.

Slot for side alignment during mounting with wood screw or knock-in anchor.

Recommended fastening spacing 50−60 cm.

Technical data

Technical data

Clamping range D, max.	40 mm
Clamping range D, min.	40 mm
Closed	no
Dimension	M40
Expandable	no
Fastening type	Screw hole

Halogen-free	no
Material	Aluminium
Nominal size/text	40
Number of cables/pipes	1
UV-resistant	yes
With inlay	no

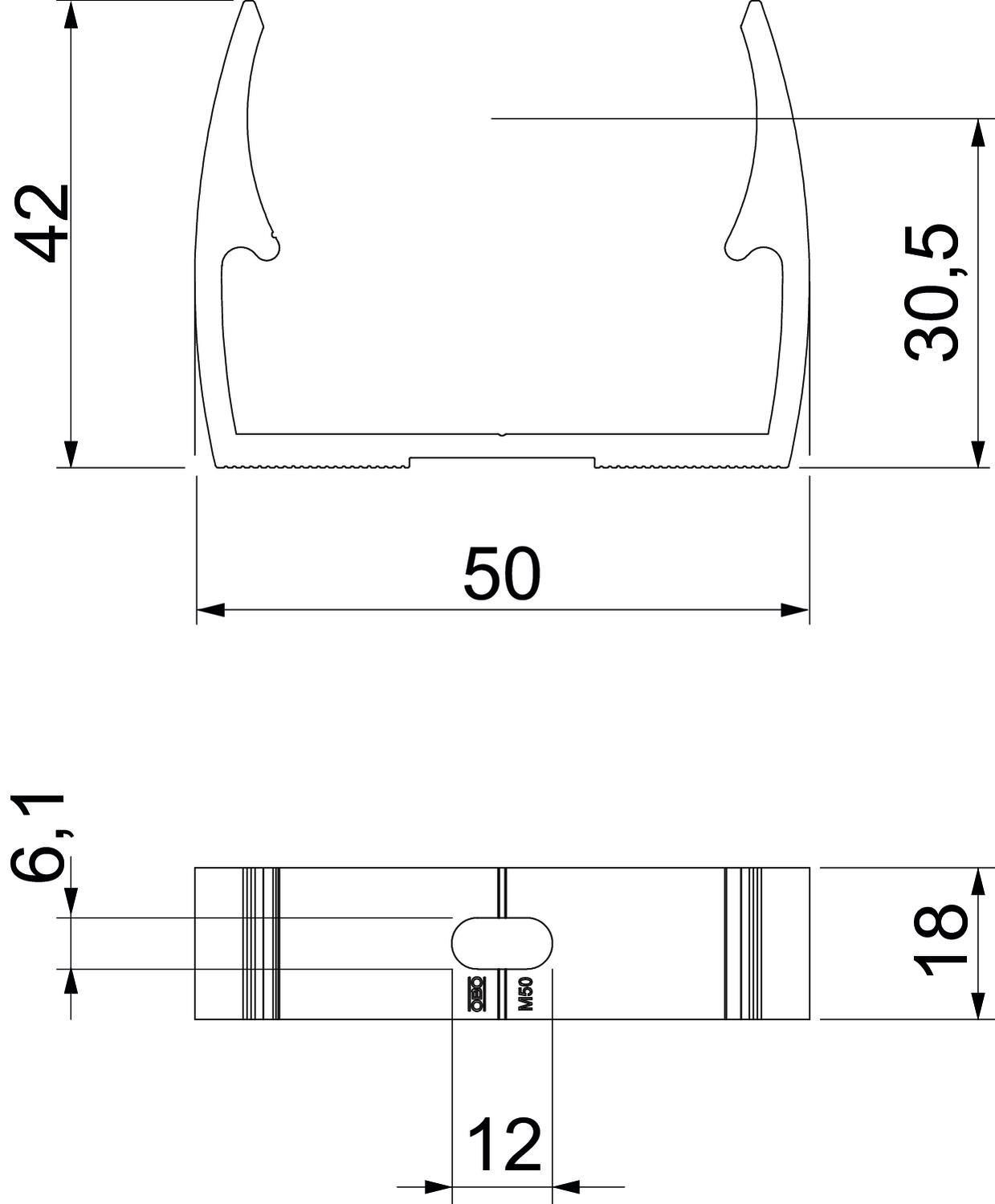

Dimensions

Dimension A	50 mm
Dimension B	18 mm
Dimension E	6,1 mm

Dimension F	12 mm
Dimension H	42 mm
Dimension h	30,5 mm

All types

All types

Types	Nominal size/text	Item no.	Quantity	SSU
ALQ M16	16	2149916	piece	100 piece
ALQ M20	20	2149920	piece	100 piece
ALQ M25	25	2149925	piece	100 piece
ALQ M32	32	2149932	piece	50 piece
ALQ M40	40	2149940	piece	50 piece
ALQ M50	50	2149950	piece	25 piece
ALQ M63	63	2149963	piece	20 piece
