PYROPLUG® Shell drill crown insulation 78 | 100 | 100

PYROPLUG® Shell drill crown insulation

Item no. 7202624 | EAN 4012196142811

Item no. / Types

For opening, min.	78 mm

For opening, max.	100 mm

Dimension L

Product description

Product description

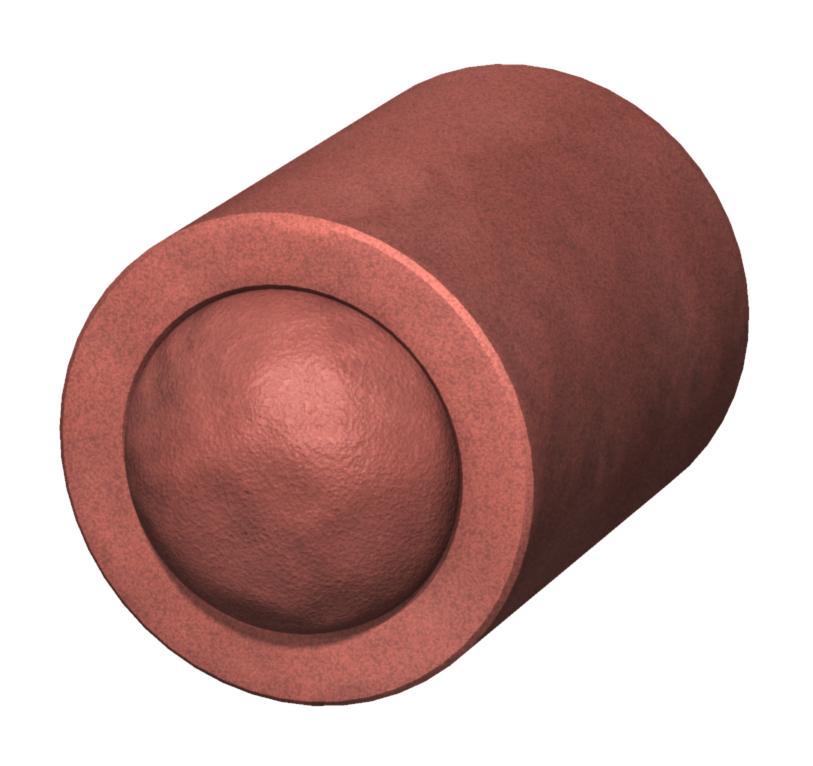

Pipe shell for cable insulation.

Consisting of a one-part, hard pipe sleeve and two soft plugs of 50 mm diameter. Protect the pipe sleeves and plugs against water in order to guarantee safe foaming in case of fire. For interior application.

Technical data

Technical data

Accessories required	yes
Colour	Red

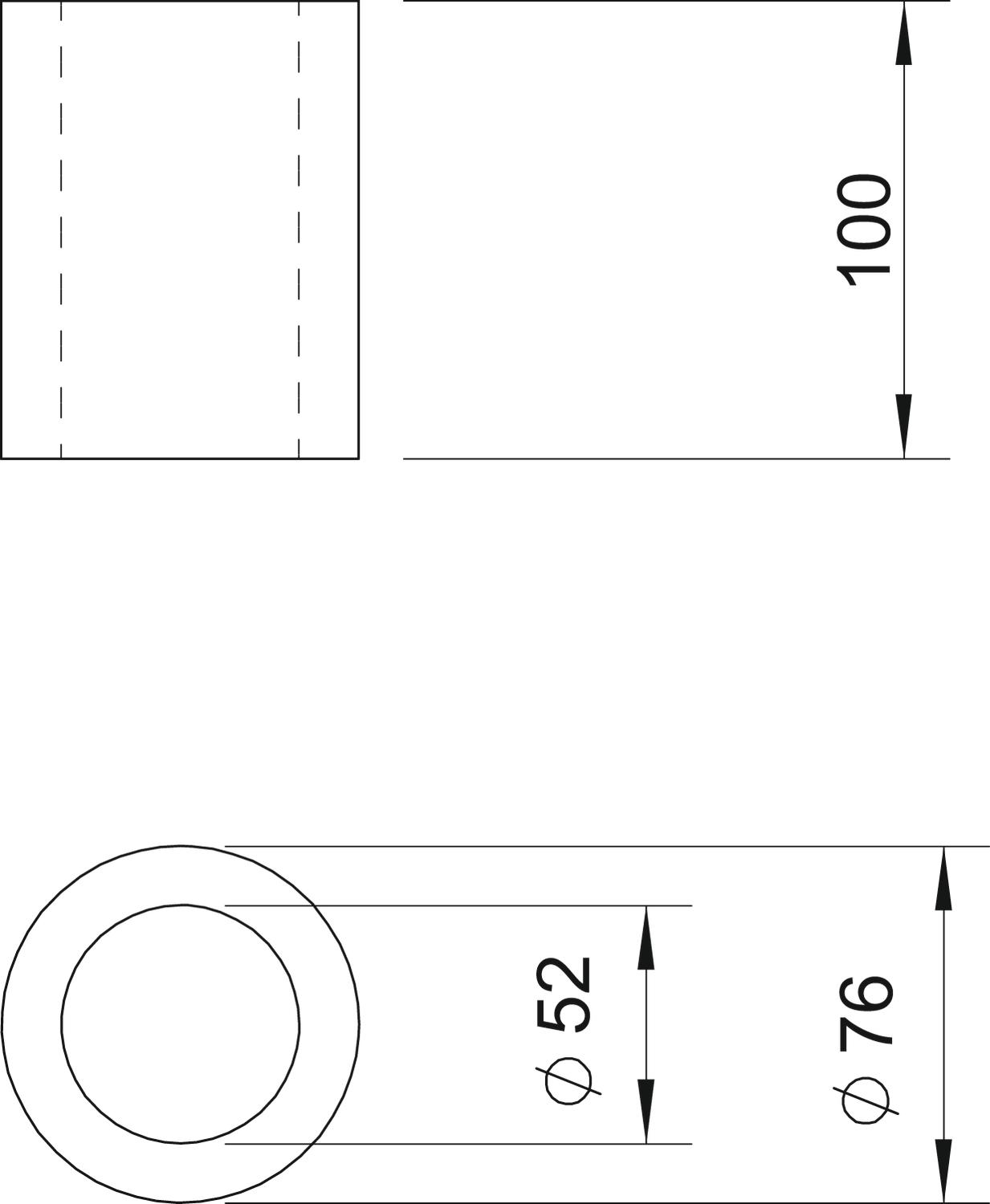

Diameter	76 mm
Dimension	Ø78x100mm
Dimension L	100 mm
Fire protection version	Box body

For opening, max.	100 mm
For opening, min.	78 mm
Length	100 mm
Material	Permanently elastic, closed-pore foam
Shape	Round
Width	78 mm

All types

All types

Types	For opening, min.	For opening, max.	Dimension L	Item no.	Quantity	SSU
FBA-D100	78 mm	100 mm	100 mm	7202624	piece	1 piece
FBA-D150	78 mm	100 mm	150 mm	7202628	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
PYROPLUG® screed filler	FBA-SP	7202322	piece	1 piece
Empty mini pipe shell	FBA-DR100	7202613	piece	1 piece
Calcium silicate plate	KSI-P1	7202283	piece	1 piece
Calcium silicate plate	KSI-P2	7202904	piece	1 piece
Calcium silicate plate	KSI-P3	7202912	piece	1 piece
Identification plate DE	KS-S DE	7205425	piece	1 piece
