- Product description
-

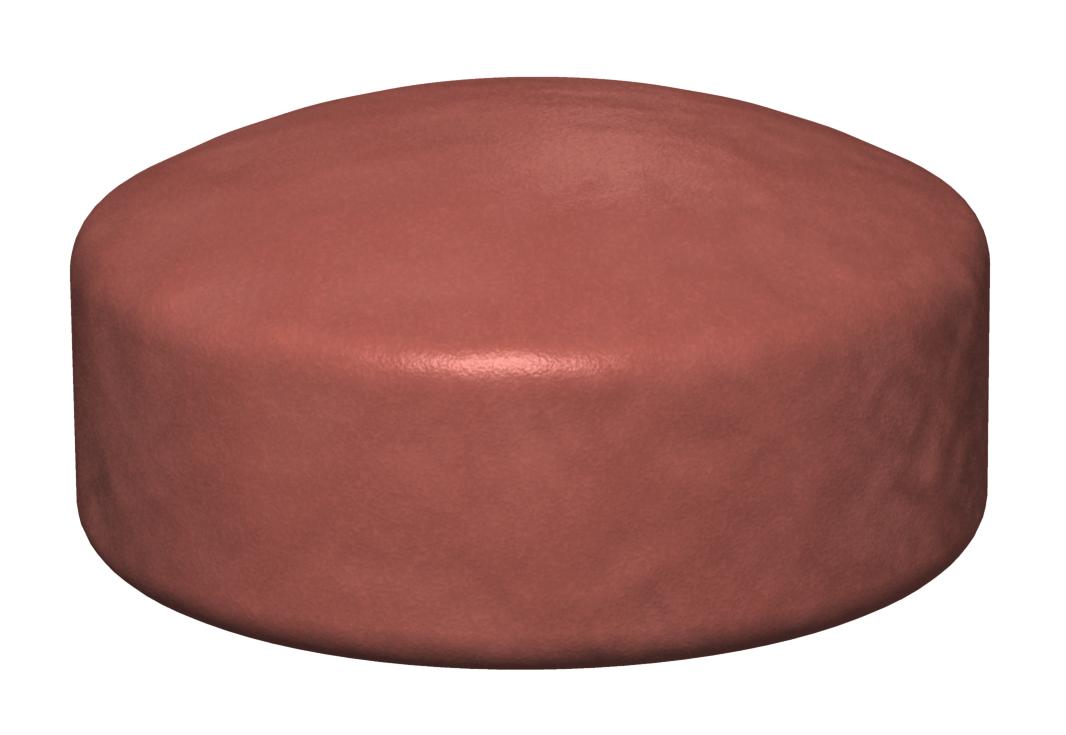

Product descriptionPlug for cable insulation.
Protect the FBA plugs against water in order to guarantee safe foaming in case of fire.
- Technical data
-
Technical data

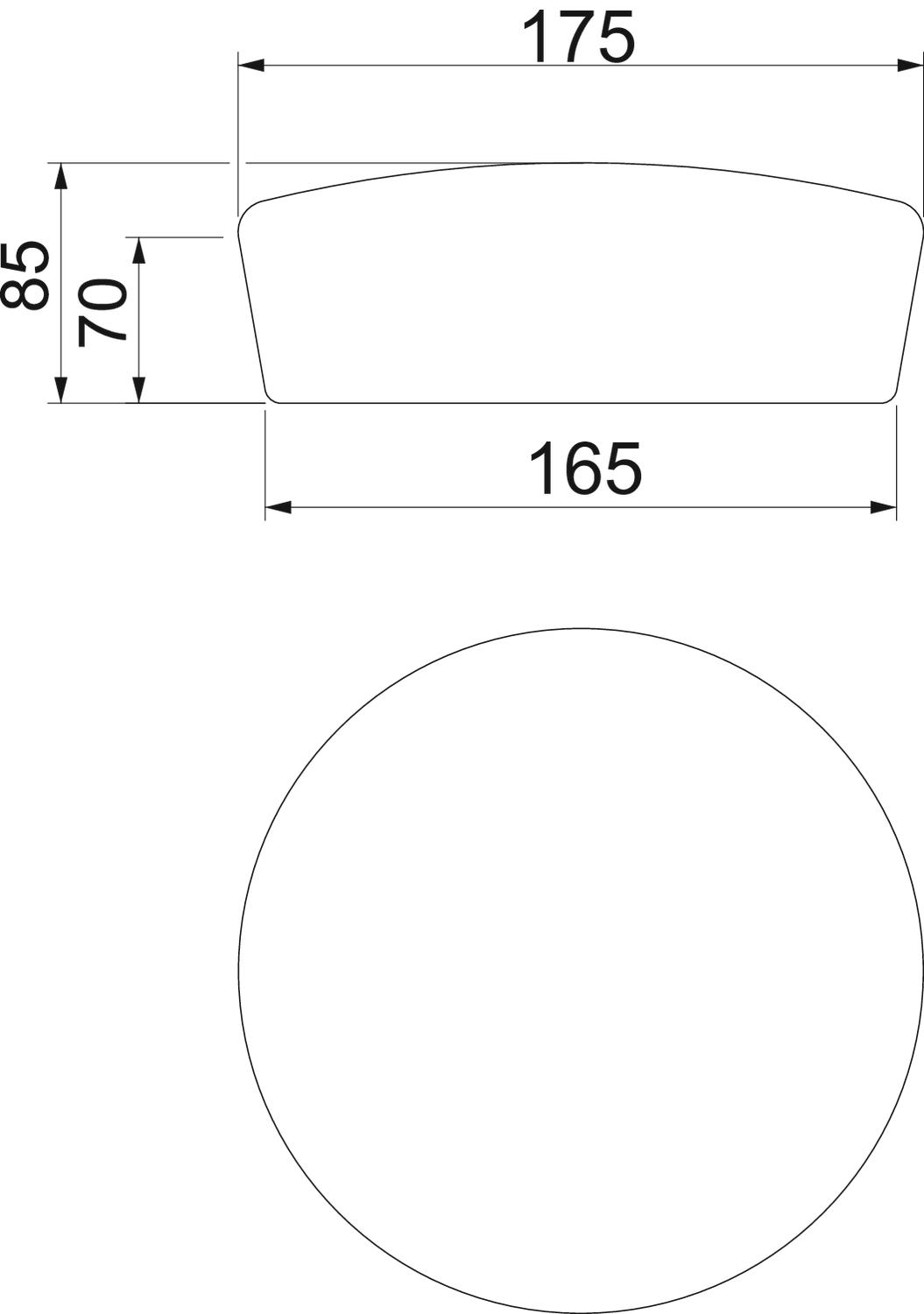

Accessories required yes Colour Brown Diameter 165 mm Dimension Ø165x70mm Dimension d 165 mm Dimension d min. 175 mm Fire protection version Foam plug For opening, max. 165 mm For opening, min. 155 mm Height 70 mm Material Permanently elastic, closed-pore foam Shape Round - All types
-
All types
- Downloads
-
Data sheet FBA-SN165 / 7202573 , 0.14MB , pdfBrochure Brochure The Experts , 2.10MB , pdfEU declaration of conformity FBA-SN165 / 7202573 , 0.11MB , pdfDeclaration of performance FBA-SN165 / 7202573 , 0.71MB , pdfREACH Declaration of conformity FBA-SN165 / 7202573 , 0.12MB , pdfRoHS Declaration of conformity FBA-SN165 / 7202573 , 0.12MB , pdfApproval certificate European technical approval ETA, PYROPLUG® Peg , 0.11MB , pdfSelection aid Selection aid, insulation , 0.86MB , pdfMounting instructions Mounting instructions, PYROPLUG® Peg foam plug , 0.12MB , pdfSafety data sheet Safety data sheet, PYROPLUG® fire insulation , 0.11MB , pdf
