- Product description
-
Product description

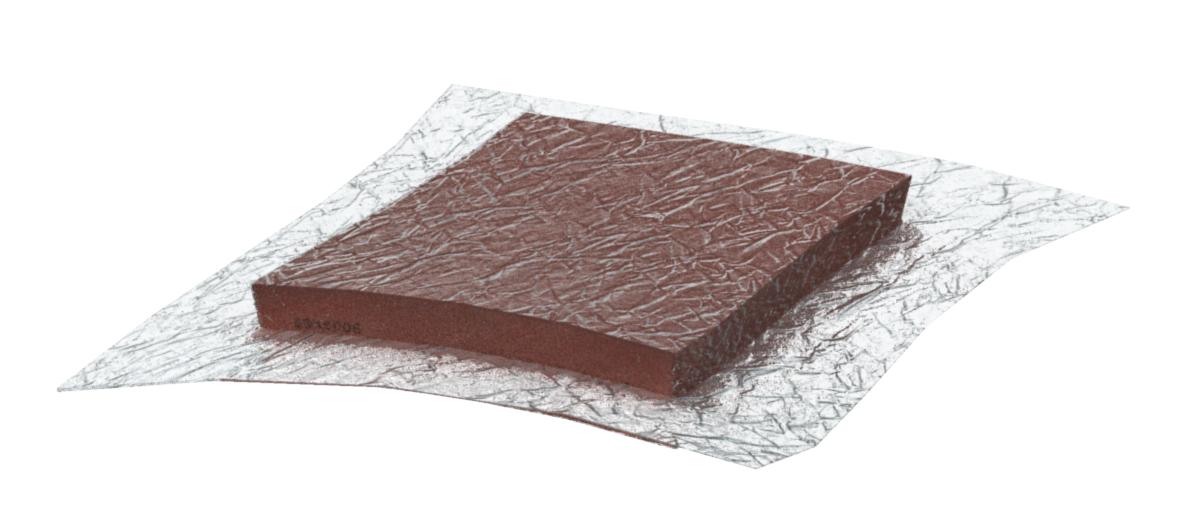

Vacuum-packed version of the FBA-B200-14 foam block for the simple closure of the residual gap in the PYROPLUG® Block combination insulation. After mounting has been completed, the film is cut and the block expands to its original size again. The film can remain in the insulation. For interior application.
- Technical data
-
Technical data

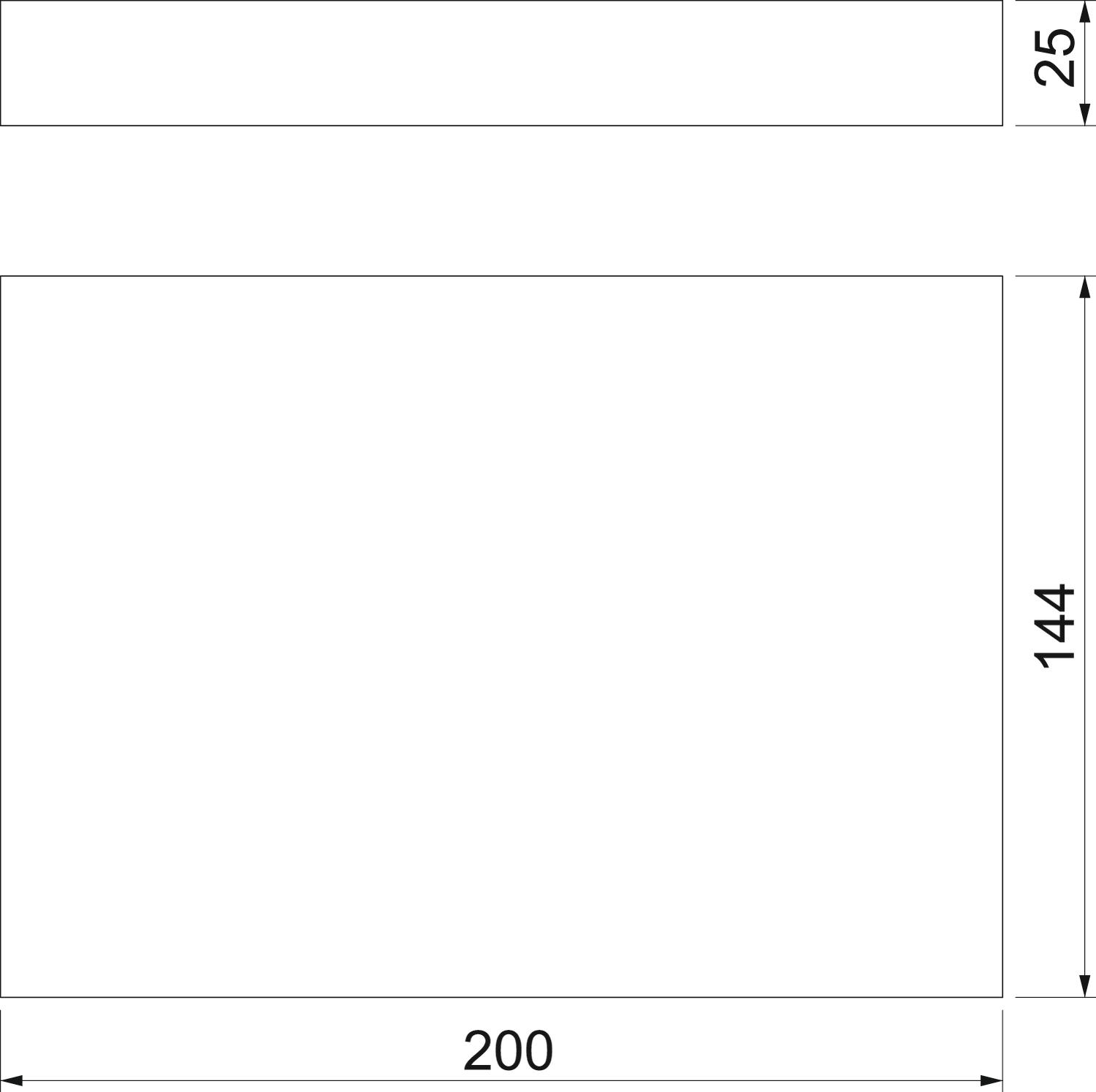

Accessories required yes Colour Brown Dimension 200x144x25mm Fire protection version Foam blocks Height 25 mm Length 200 mm Material Permanently elastic, closed-pore foam Shape Rectangular Width 144 mm - All types
- Downloads
-
Data sheet FBA-BV200-14 / 7202515 , 0.10MB , pdfDeclaration of conformity FBA-BV200-14 / 7202515 , 0.11MB , pdfREACH Declaration of conformity FBA-BV200-14 / 7202515 , 0.12MB , pdfRoHS Declaration of conformity FBA-BV200-14 / 7202515 , 0.12MB , pdfApproval certificate European Technical Approval ETA PYROPLUG® Block , 0.16MB , pdfSelection aid Selection aid, insulation , 0.86MB , pdfMounting instructions Mounting instructions, PYROPLUG® BLOCK , 0.11MB , pdfSafety data sheet Safety data sheet, PYROPLUG® fire insulation , 0.11MB , pdf
