- Product description
-

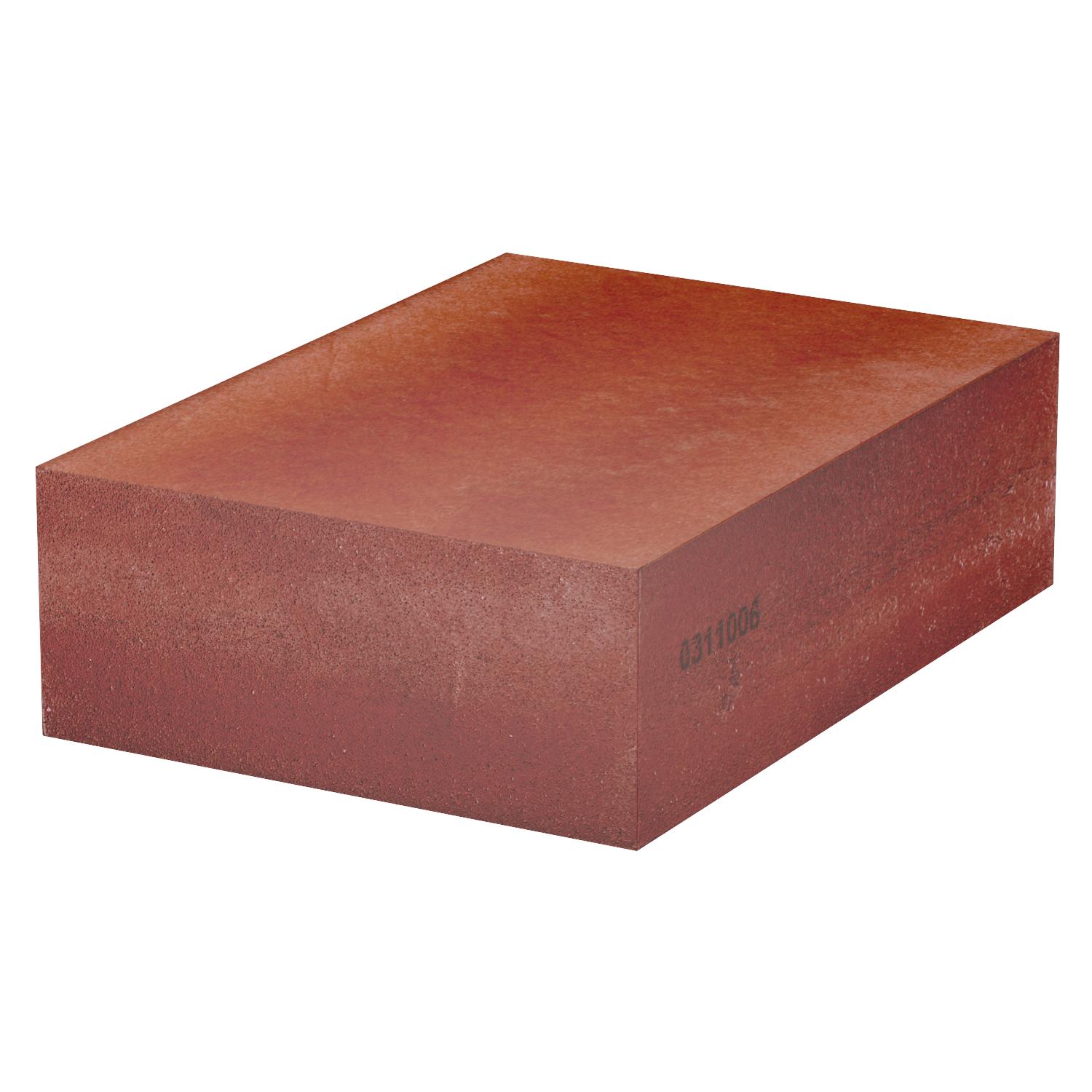

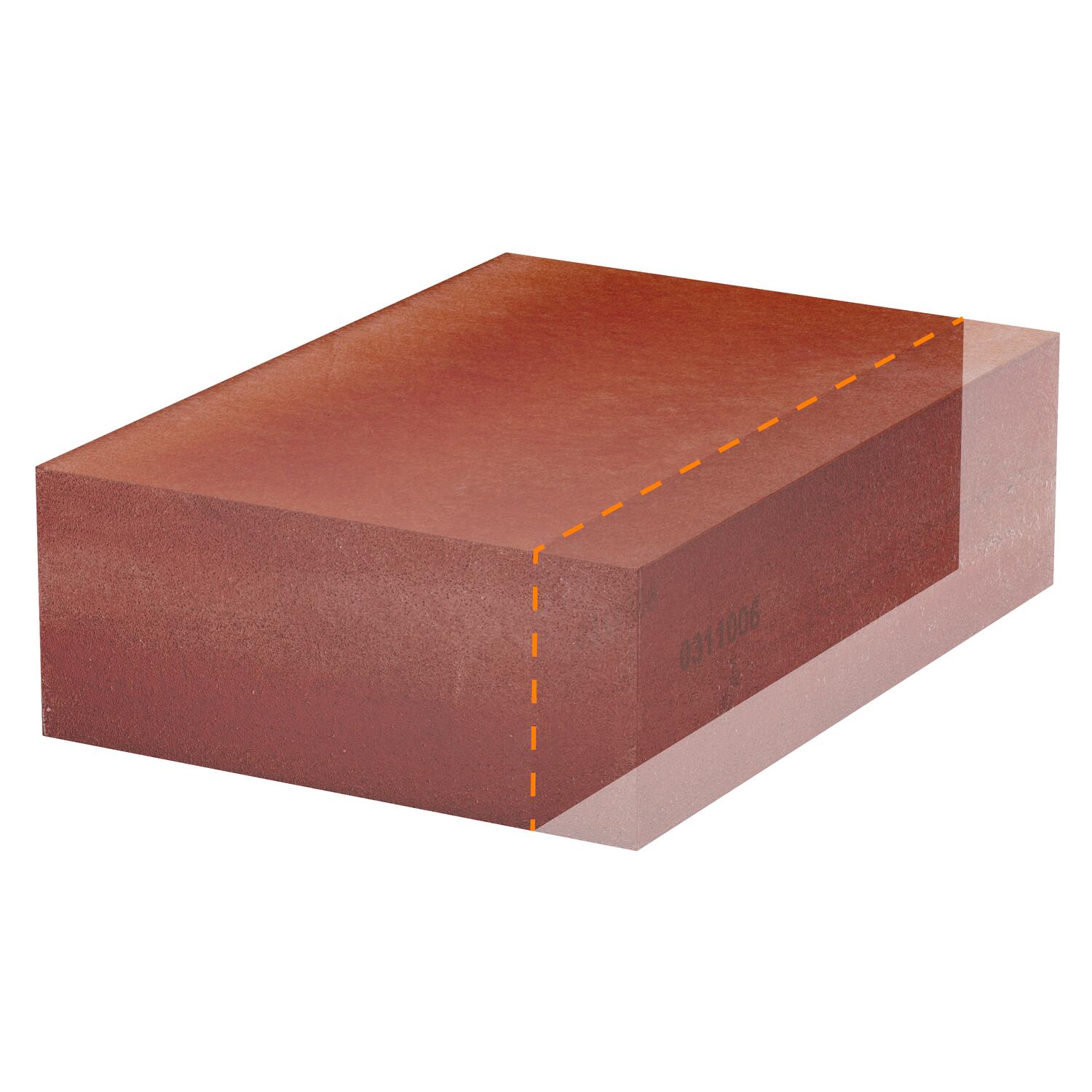

Product descriptionSoft, permanently elastic foam block for cable and combination insulation. Vertical and transverse installation to achieve different fire resistance classes. Can be combined with the two-component fire protection foam PYROSIT® NG. Can be used in solid ceilings and walls and in light-duty partitions and is approved for many installations. For interior application. CE-labelled construction product according to ETA-15/0803 for applications with fire resistance periods of up to 120 minutes.
Details on the applications can be found in the approval documents.
Protect the surface of the foam insulation against water in order to guarantee safe expansion in the event of fire. Coating with standard silicone is approved.
- Technical data
-
Technical data

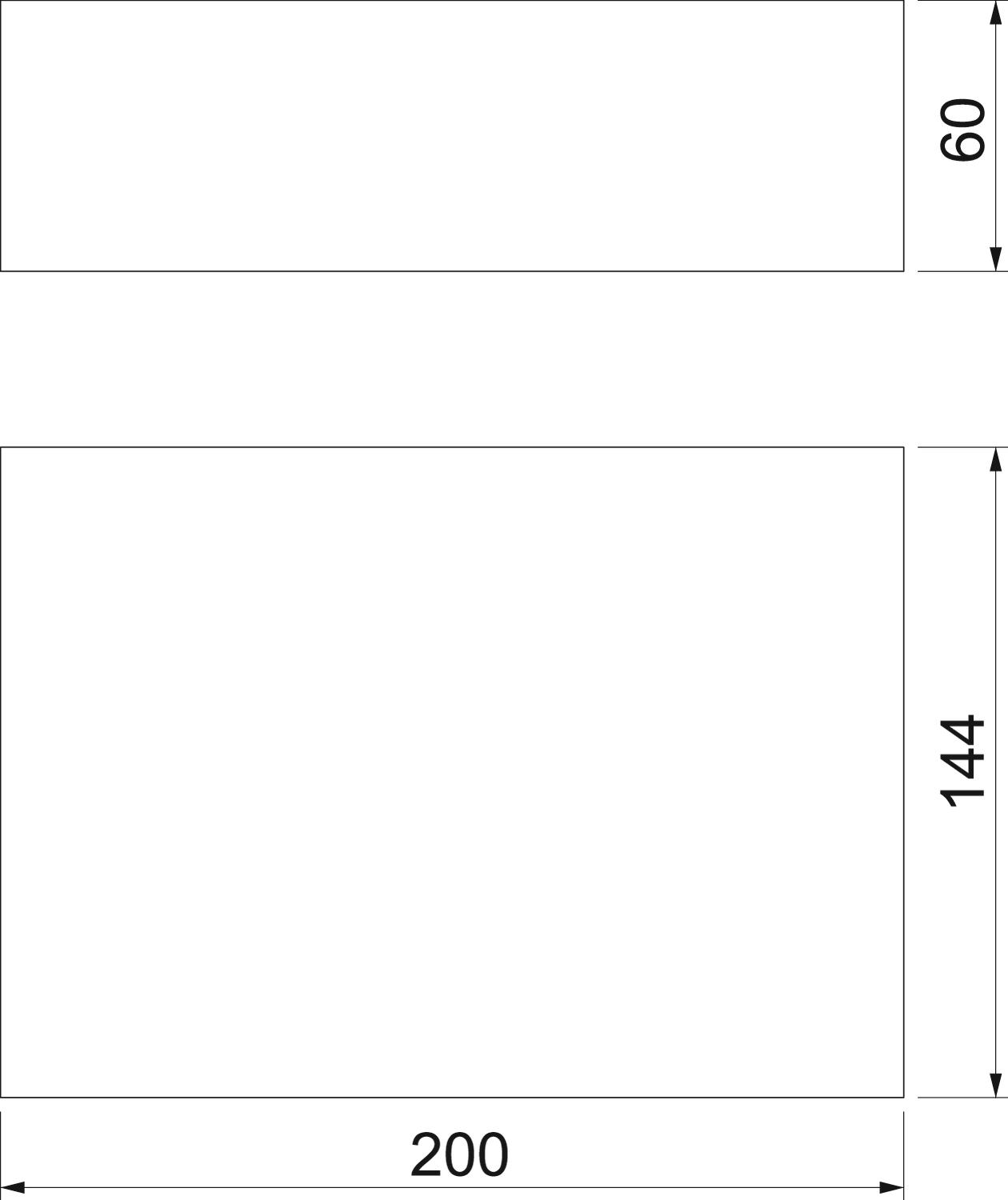

Accessories required yes Colour Brown Dimension 200x144x60mm Fire protection version Foam blocks Height 60 mm Length 200 mm Material Permanently elastic, closed-pore foam Shape Rectangular Width 144 mm - All types
- Downloads
-
Data sheet FBA-B200-14 / 7202505 , 0.17MB , pdfBrochure Brochure The Experts , 2.10MB , pdfEU declaration of conformity FBA-B200-14 / 7202505 , 0.11MB , pdfDeclaration of performance FBA-B200-14 / 7202505 , 0.74MB , pdfREACH Declaration of conformity FBA-B200-14 / 7202505 , 0.12MB , pdfRoHS Declaration of conformity FBA-B200-14 / 7202505 , 0.12MB , pdfApproval certificate European Technical Approval ETA PYROPLUG® Block , 0.16MB , pdfSelection aid Selection aid, insulation , 0.86MB , pdfMounting instructions Mounting instructions, PYROPLUG® BLOCK , 0.11MB , pdfMounting instructions Mounting instructions, ZSE90 strain relief , 0.07MB , pdfSafety data sheet Safety data sheet, PYROPLUG® fire insulation , 0.11MB , pdf
