Note: This article is discontinued.

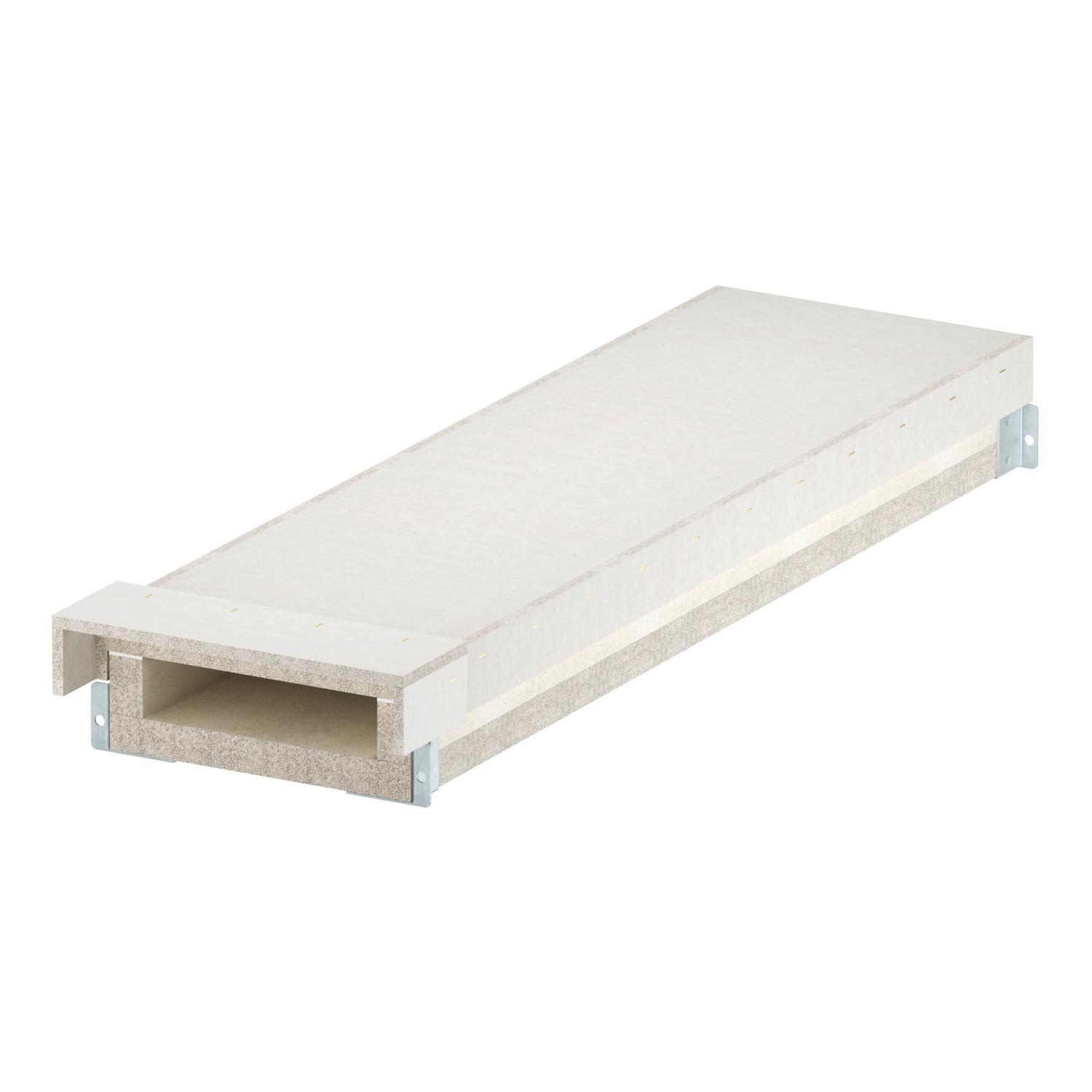

PYROLINE® Con S BSK I90/E30 protection duct

Item no. 7215182 | EAN 4012196461516

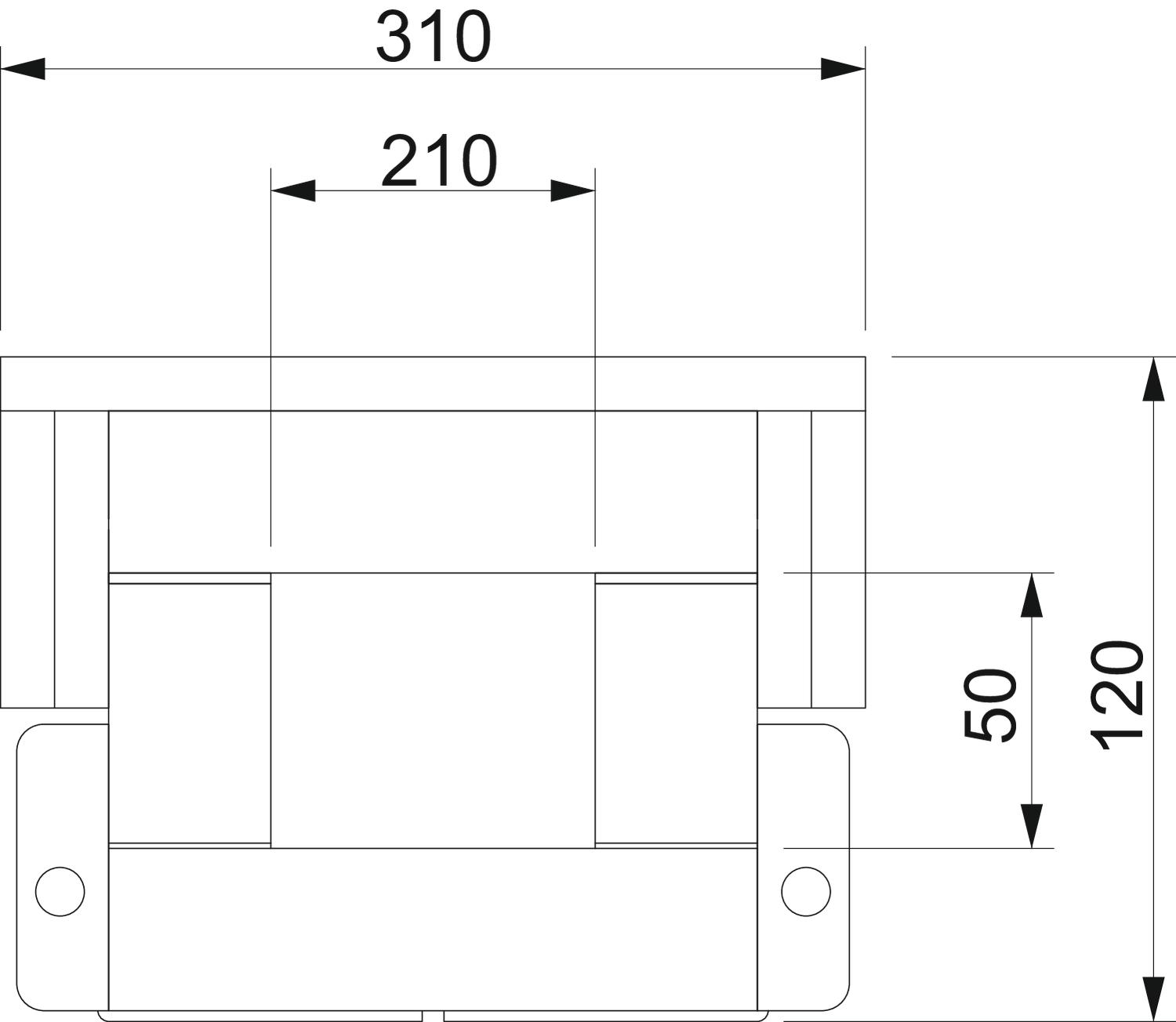

7215182 / BSKH 090521
1000 mm
310 mm
210 mm
120 mm
50 mm
Product description
Product description
Fire protection duct made from water and frost-proof fibreglass light concrete of building material class A1 according to EN 13501-1 for fireproof laying of cables in rescue and emergency routes, and for the maintenance of electrical functionality of safety-relevant systems. Classification I90 as I duct according to DIN 4102 Part 11 and classification E30 as E duct according to DIN 4102 Part 12.

Mounting of the duct on wall brackets or as ceiling mounting with suspended supports and brackets or on a U transverse profile suspended with threaded rods. Mounted connectors ensure quick mounting in situ, whilst loosely placed covers ensure quick inspection and reassignment.

Fire protection duct with cover and pre-mounted connection fittings, connection crews and sealing strips.
  • Suspended fire protection duct, ceiling mounting I90
  • Suspended fire protection duct, ceiling mounting E30
  • Suspended fire protection duct, wall mounting I90
  • Suspended fire protection duct, wall mounting E30
  • Fire resistance class I90
  • Function maintenance class E30
Technical data

Technical data

Colour Grey
Cover fastening Loose
Dimension 50x210
Dimension B 310 mm
Dimension b 210 mm
Dimension h 50 mm
Dimension H 120 mm
Fire resistance class E − function maintenance 30
Fire resistance class I − installation duct 90
Jacketing Without
Length 1000 mm
Material Fibreglass lightweight concrete
Material of the insulation Glass-fibre lightweight concrete
Number of flammable sides 4
Partitions possible yes
With perforation no
All types

All types

Types Length Dimension B Dimension b Dimension H Dimension h Item no. Quantity SSU
BSKH 090521 1000 mm 310 mm 210 mm 120 mm 50 mm 7215182
1 m
Accessories

System accessories

Products Types Item no. Quantity SSU
End piece for PYROLINE® Con S BSK I90/E30 fire protection duct End piece for PYROLINE® Con S BSK I90/E30 fire protection duct BSKH-E090521 7215594
1 piece
Doubler for PYROLINE® Con fire protection duct Doubler for PYROLINE® Con fire protection duct KAD-8040 7215464
1 piece
Doubler for PYROLINE® Con fire protection duct Doubler for PYROLINE® Con fire protection duct KAD-10040 7215462
1 piece
Fire protection duct mortar Fire protection duct mortar KTM 7215500
1 piece

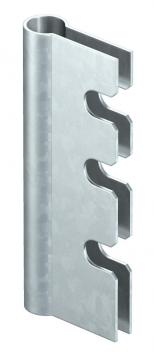

Threaded rod adapter E30 Threaded rod adapter E30 KGA 7215395
1 piece
Separating retainer 45 FS Separating retainer 45 FS TSG 45 FS 6062033
3 m
Bolt for separating retainer fastening, KRS 6x30 Bolt for separating retainer fastening, KRS 6x30 KRS 6x30 3498100
200 piece

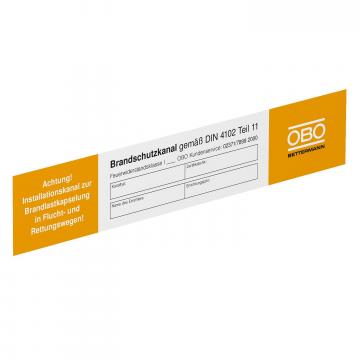

Identification plate Identification plate KS-K DE 7214734
10 piece
Identification plate for maintenance of electrical function Identification plate for maintenance of electrical function KS-E DE 7205423
10 piece
