PYROLINE® Con D fire protection duct EI30 - EI60 1000 | 160 | 100 | 125 | 80

PYROLINE® Con D fire protection duct EI30 - EI60

Item no. 7215800 | EAN 4012196836390

Item no. / Types

Length	1000 mm

Dimension B

Dimension b

Dimension H

Dimension h

Product description

Product description

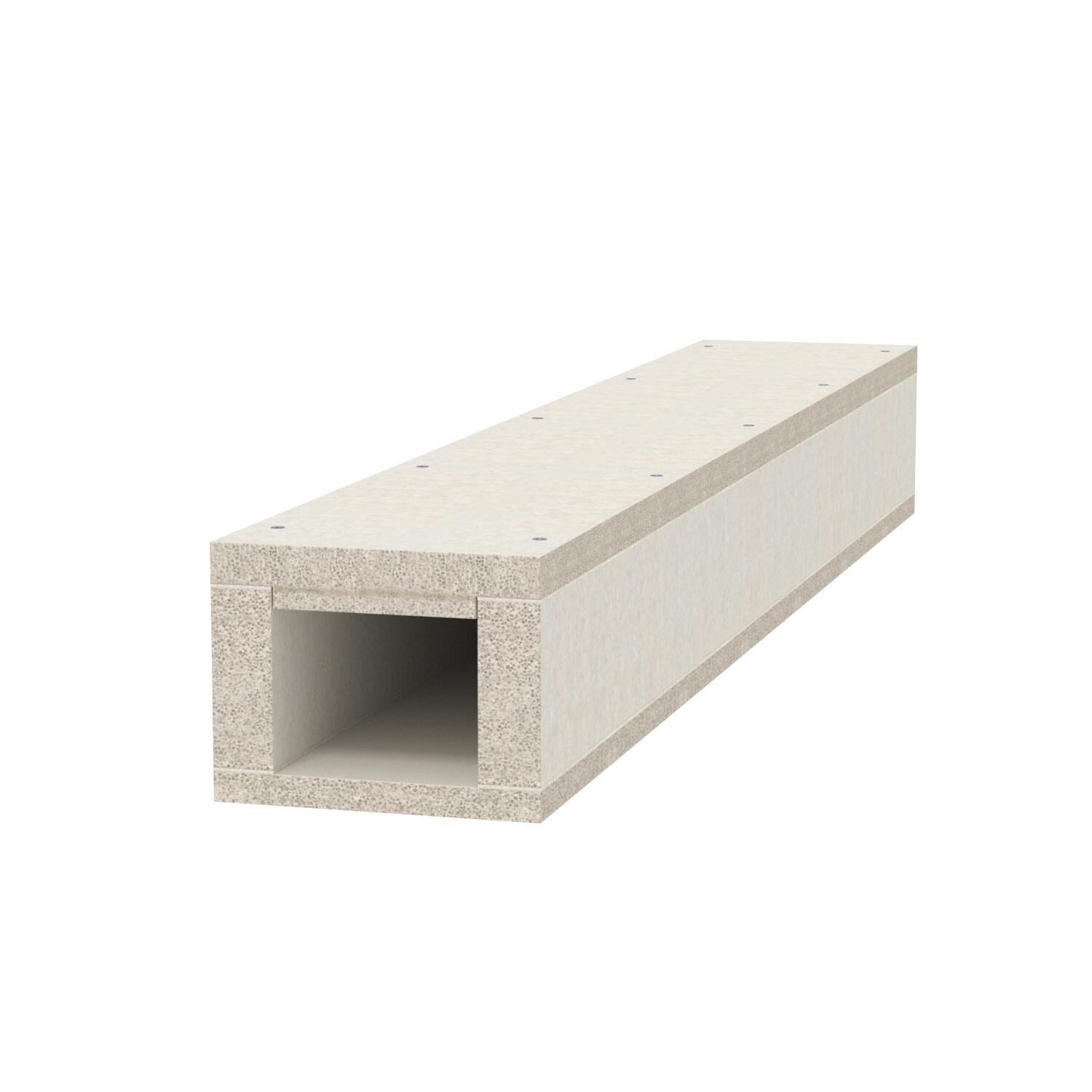

Fire protection duct made of water and frost-resistant fibreglass lightweight concrete of material class A1 according to EN 13501-1 for fireproof routing of cables in escape and rescue routes. EI30 - EI60 classification as installation duct according to EN 13501-2 on the basis of tests in accordance with EN 1366-5. When there is an internal fire load (cable fire), the duct prevents the spread of fire from one fire section to another.

Mounting of the duct directly on walls or under ceilings.

Including countersunk head screws and sealing strip.

Technical data

Technical data

Classification EI − installation duct	60
Colour	Grey
Cover fastening	Screw
Dimension	1000x100x80
Jacketing	Without

Material	Fibreglass lightweight concrete
Material of the insulation	Glass-fibre lightweight concrete
Number of flammable sides	3
With perforation	no

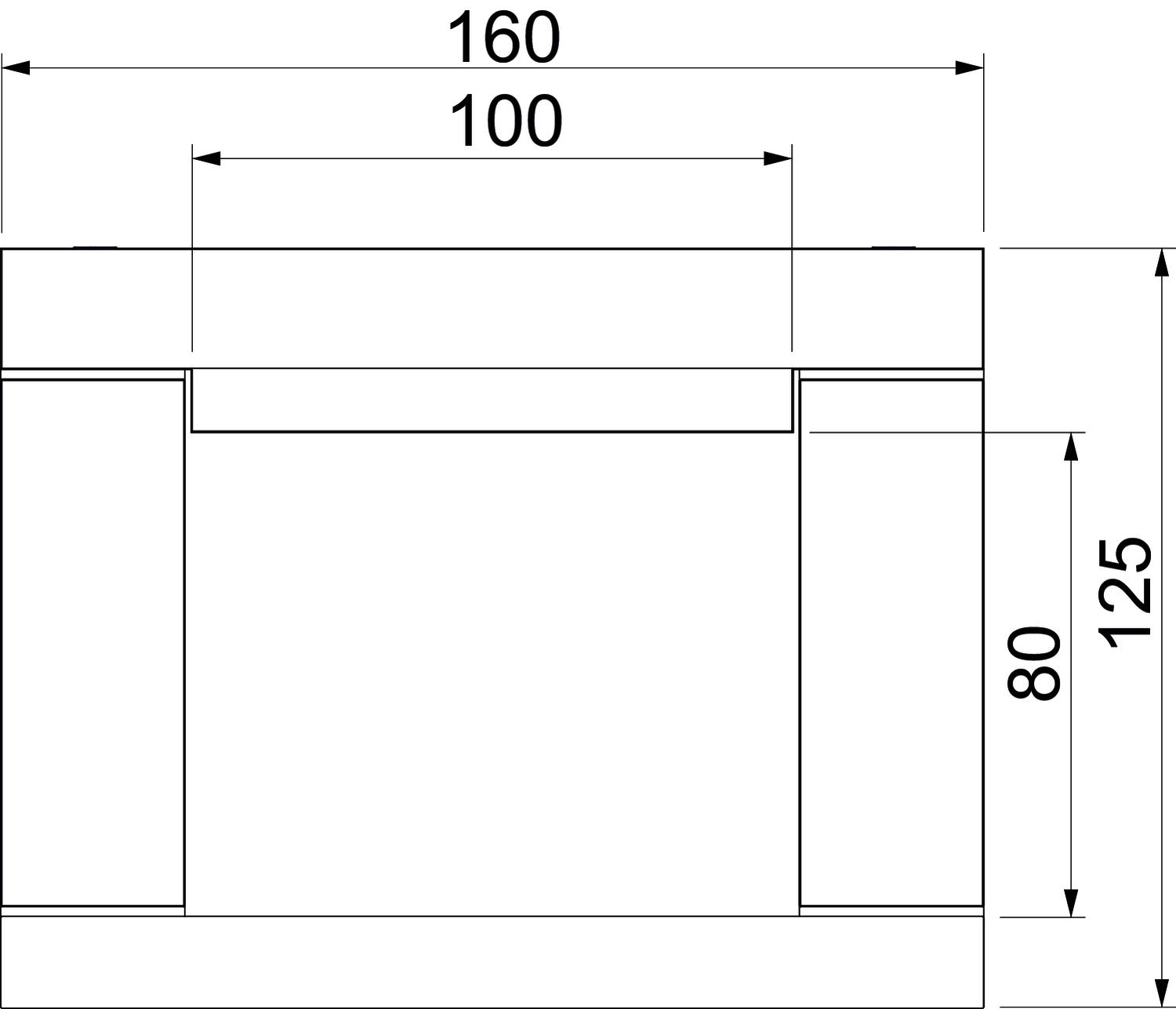

Dimensions

Dimension B	160 mm
Dimension b	100 mm
Dimension h	80 mm

Dimension H	125 mm
Length	1000 mm

All types

All types

Types	Length	Dimension B	Dimension b	Dimension H	Dimension h	Item no.	Quantity	SSU
PLCD D060810	1000 mm	160 mm	100 mm	125 mm	80 mm	7215800	m	1 m
PLCD D061220	1000 mm	260 mm	200 mm	165 mm	120 mm	7215804	m	1 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU

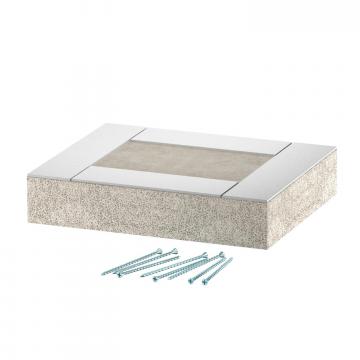

EI60 end piece for PLCD D060810 fire protection duct	PLCD E060810	7215840	piece	1 piece

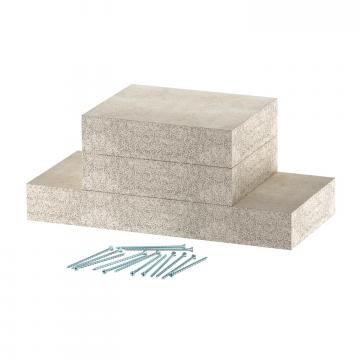

EI60 wall connection collar for PLCD D060810 fire protection duct	PLCD W060810	7215820	piece	1 piece
Doubler for PYROLINE® Con fire protection duct	KAD-8040	7215464	piece	1 piece
Doubler for PYROLINE® Con fire protection duct	KAD-10040	7215462	piece	1 piece
Fire protection duct mortar	KTM	7215500	piece	1 piece
Insulation layer creator in a cartridge	DSX-K	7202300	piece	1 piece
Separating bracket for wall mounting	PLCD-SB0810	7215480	piece	25 piece
Separating clamp for ceiling mounting	PLCD-SC0810	7215490	piece	25 piece
Cable bracket, vertical, for PYROLINE® fire protection ducts, height 20 mm	LHS 20	7215288	piece	10 piece
Cable bracket, vertical, for PYROLINE® fire protection ducts, height 40 mm	LHS 40	7215290	piece	10 piece
Cable bracket, vertical, for PYROLINE® fire protection ducts, height 60 mm	LHS 60	7215292	piece	10 piece
