PYROCOMB® Intube pipe shell, Ø 90 mm
Item no. 7204292 | EAN 4012196810178
- Product description
-
Product description

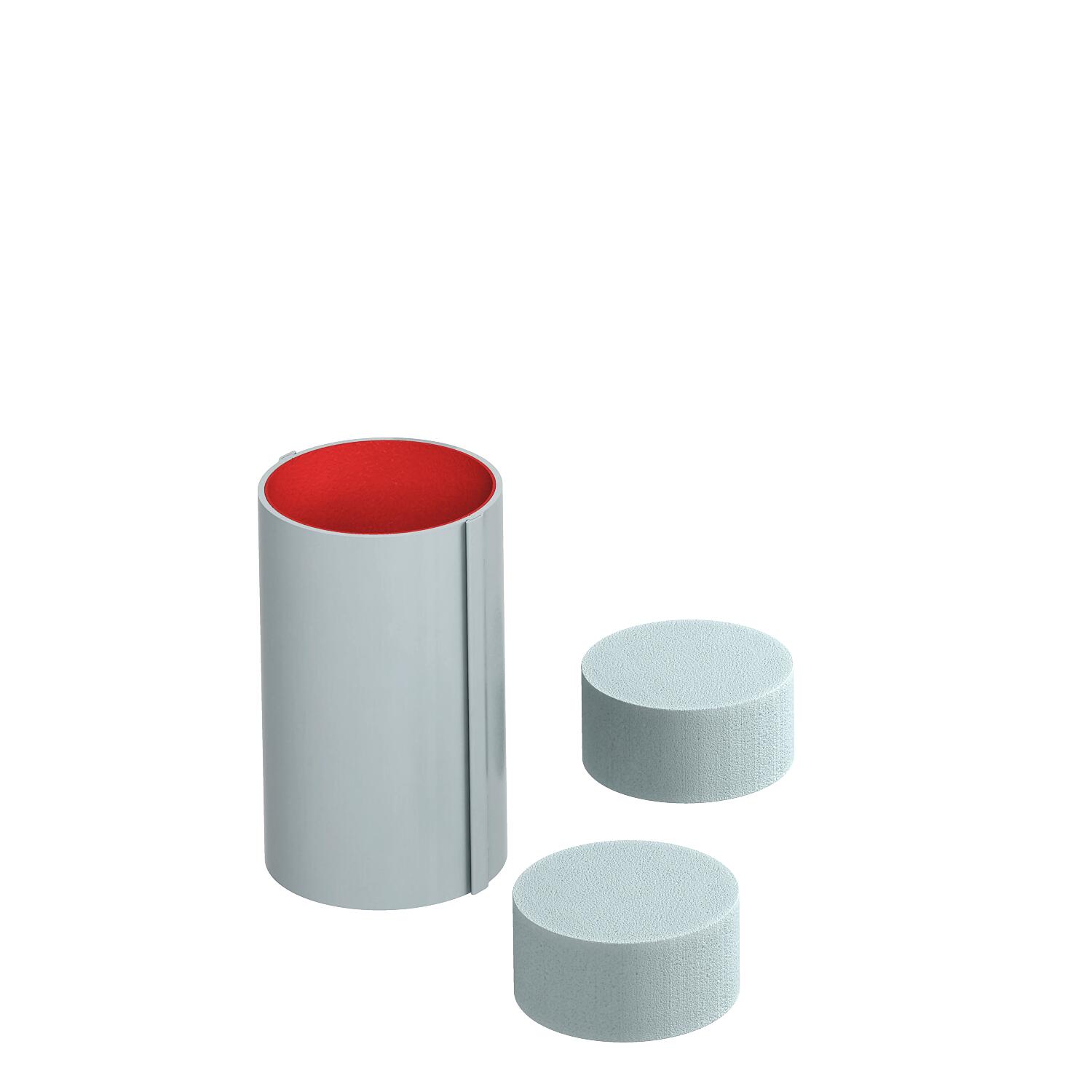

Internally coated pipe shells with click lock. The inner space can be fitted with cables and electrical installation pipes completely. For interior application. CE-labelled, European approved construction product according to ETA-13/0904 and German general type approval. Fire resistance up to 120 minutes.
Closing with 2 foam plugs included in the delivery. The surface seal is created with PYROCOAT® ASX coating.
In some applications, the use of metallic tightening straps is prescribed to secure the pipe shells in light-duty partitions. Details can be found in the mounting instructions/approval.
-
- Technical data
-
Technical data
Accessories required no Colour Grey Diameter 90 mm Dimension 81x150mm Fire protection version Assembly insulation For opening, max. 100 mm For opening, min. 100 mm Material Polyvinylchloride Shape Round Dimensions

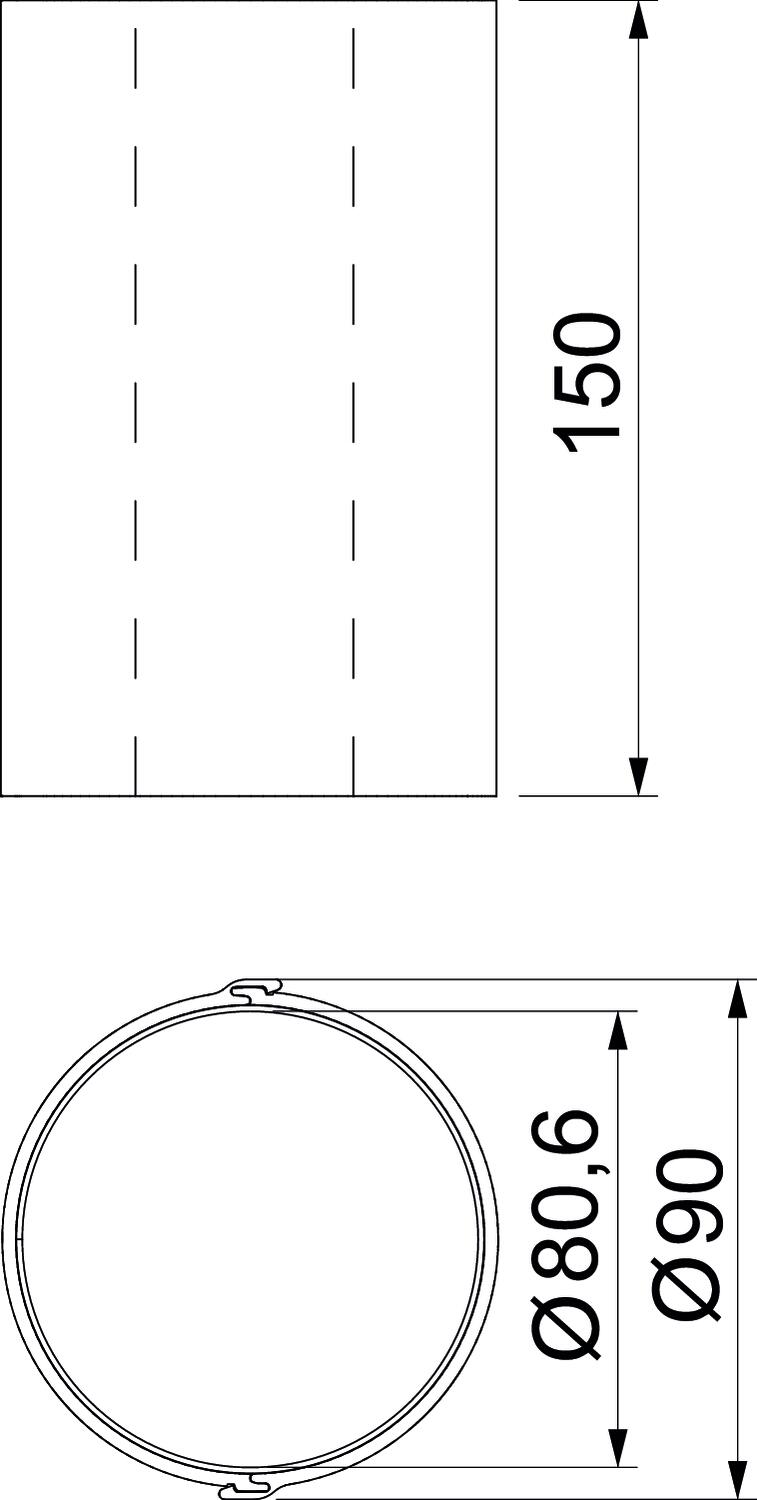

Dimension B 90 mm Dimension d min. 80,6 mm Dimension L 150 mm Length 150 mm - All types
-
System accessories
Products Types Item no. Quantity SSU

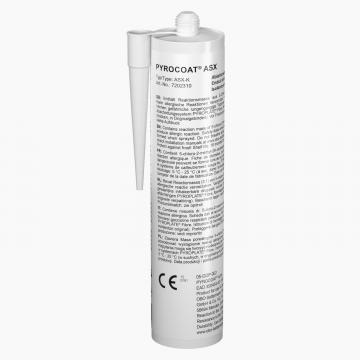

Ablation coating PYROCOAT® in a cartridge
ASX-K 7202310 1 piece
Identification plate DE
KS-S DE 7205425 1 piece - Downloads
-
