PYROCOMB® Intube pipe shell
Item no. 7204304 | EAN 4012196135769
- Product description
-

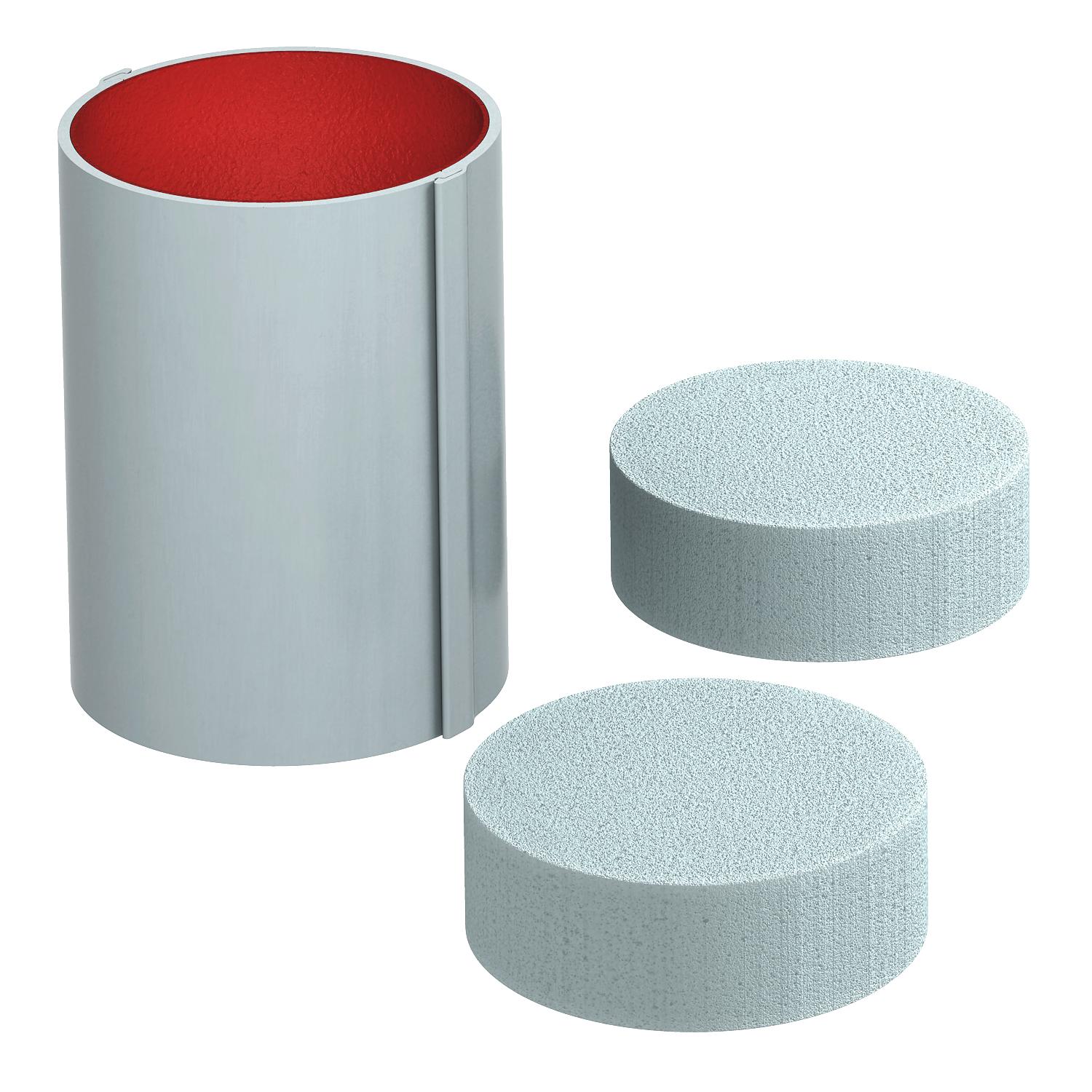

Product descriptionInternally coated pipe shells with click lock. The inner space can be fitted with cables and electrical installation pipes completely. For interior application. CE-labelled, European approved construction product according to ETA-13/0904 and German general type approval. Fire resistance up to 120 minutes.
Closing with 2 foam plugs included in the delivery. The surface seal is created with PYROCOAT® ASX coating.
In some applications, the use of metallic tightening straps is prescribed to secure the pipe shells in light-duty partitions. Details can be found in the mounting instructions/approval.
-
- Technical data
-
Technical data

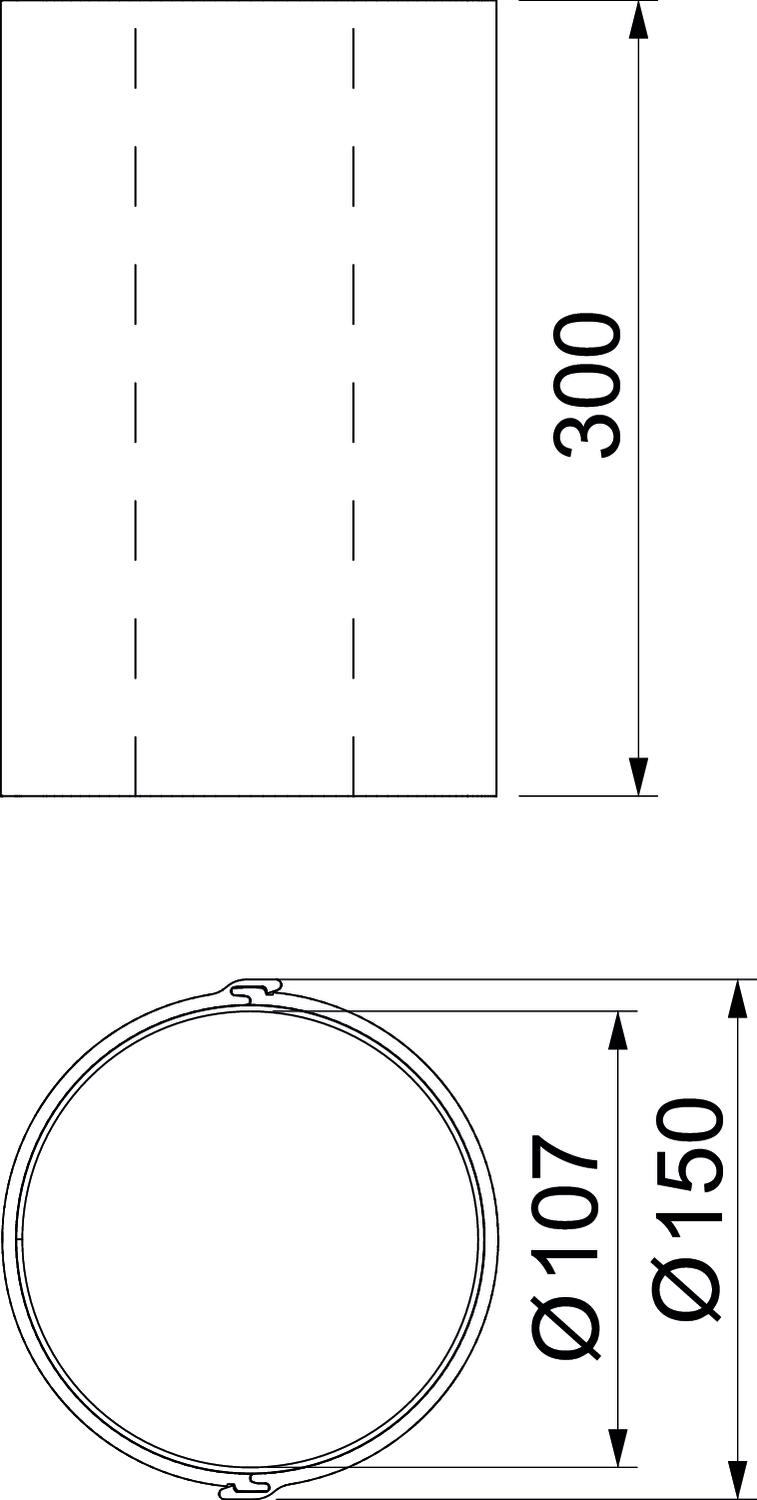

Accessories required no Colour Grey Diameter 116,4 mm Dimension Ø107x300mm Dimension B 116,4 mm Dimension d min. 107 mm Dimension L 300 mm Fire protection version Assembly insulation For opening, max. 165 mm For opening, min. 125 mm Length 300 mm Material Polyvinylchloride Shape Round - All types
-
System accessories
Products Types Item no. Quantity SSU
Ablation coating PYROCOAT® in a cartridge
ASX-K 7202310 1 piece
Identification plate DE
KS-S DE 7205425 1 piece Mounting accessories
Products Types Item no. Quantity SSU
Metal strip clips, narrow
MBS 045 7203104 50 piece - Downloads
-
Data sheet CTS 12300 / 7204304 , 0.26MB , pdfBrochure Brochure The Experts , 2.10MB , pdfEU declaration of conformity CTS 12300 / 7204304 , 0.11MB , pdfDeclaration of performance CTS 12300 / 7204304 , 0.75MB , pdfREACH Declaration of conformity CTS 12300 / 7204304 , 0.12MB , pdfRoHS Declaration of conformity CTS 12300 / 7204304 , 0.12MB , pdfApproval certificate European Technical Approval, PYROCOMB® Intube , 0.20MB , pdfSelection aid Selection aid, insulation , 0.86MB , pdfMounting instructions System instructions PYROCOMB® Intube , 0.04MB , pdf
