PYROBAG® fire protection cushion 10 | 0.18

PYROBAG® fire protection cushion

Item no. 7202709 | EAN 4012196460991

Item no. / Types

Dimension d min.

Contents

Product description

Product description

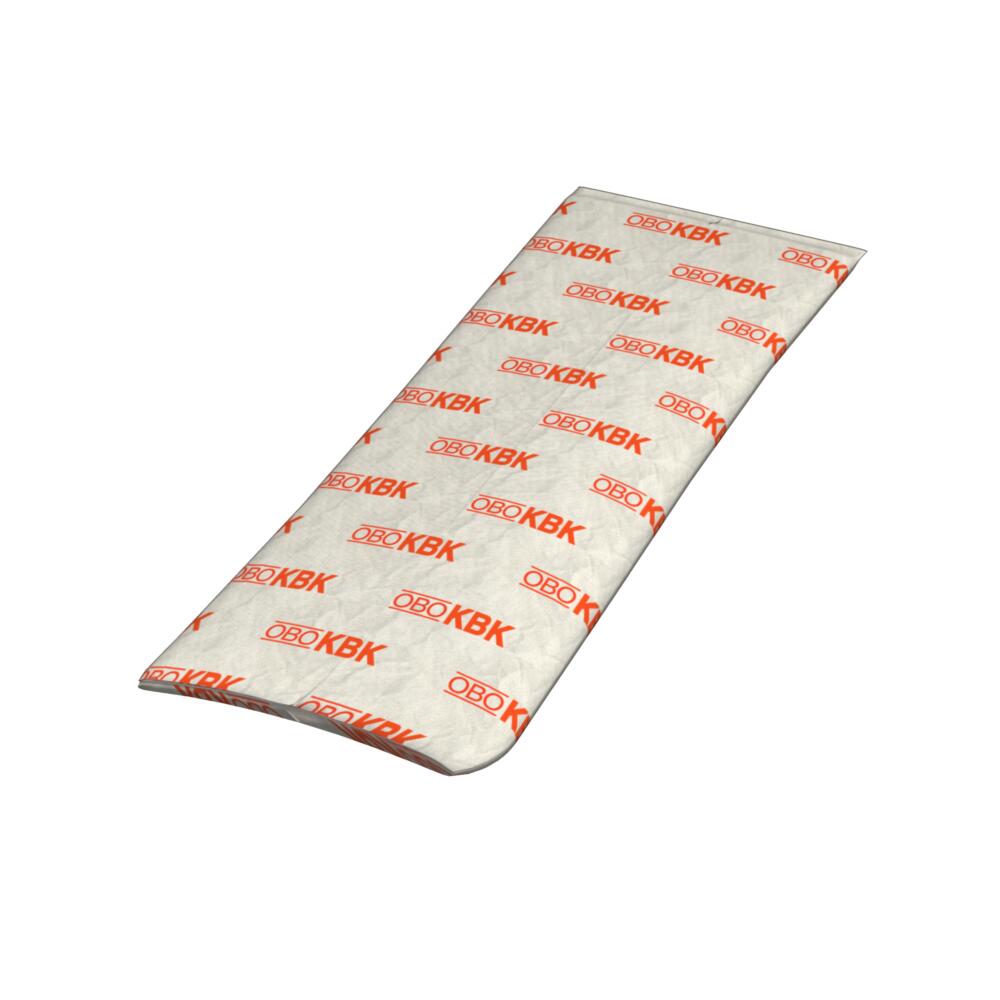

Cable fire protection cushions made of dense, closely knit and mechanically solid glass mesh with a special filling. Free from mineral fibres, weatherproof and water-resistant. For interior application.

Can be stored for an unlimited period of time in dry, frost-free rooms.

Technical data

Technical data

Accessories required	yes
Colour	Grey
Contents	0,18 kg

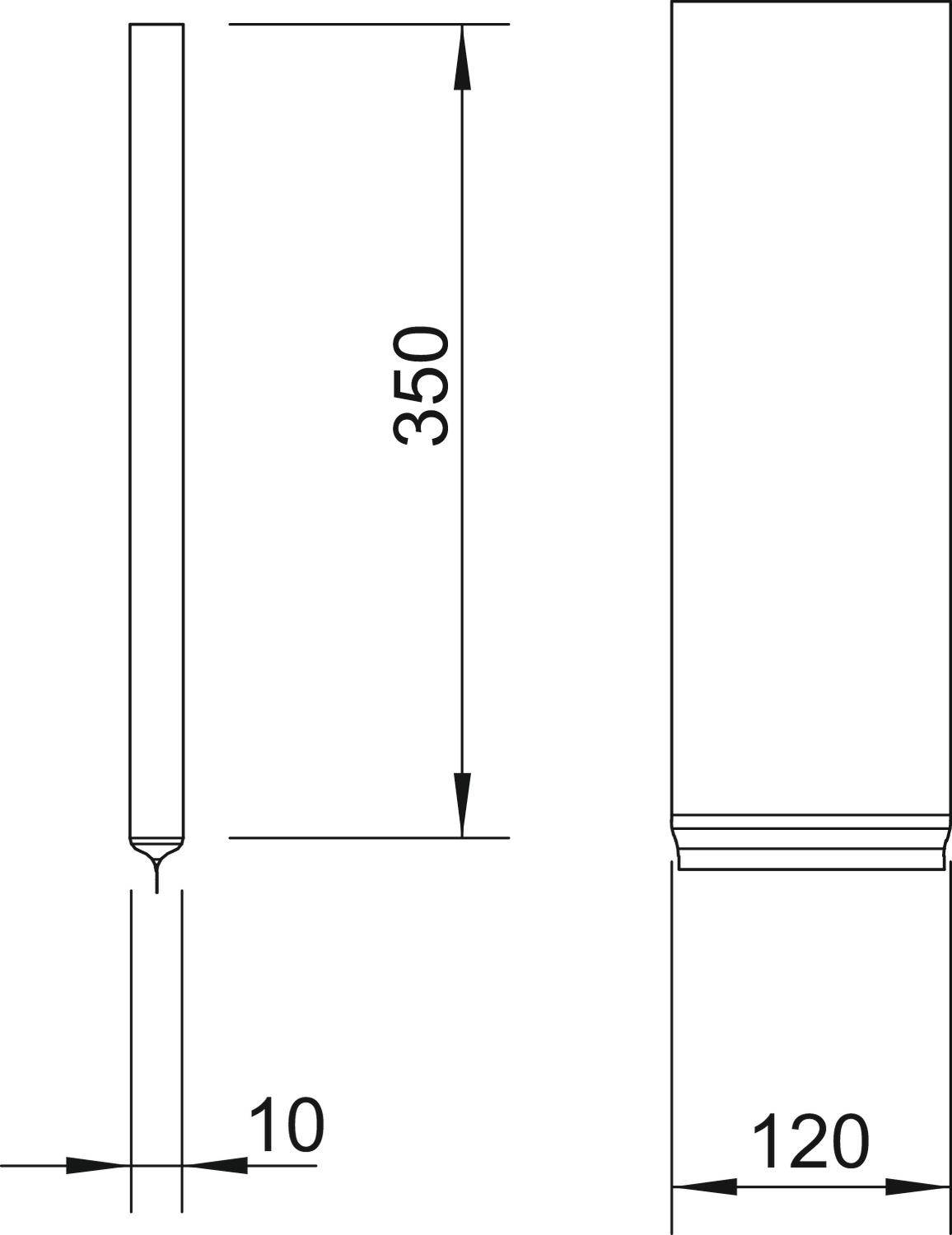

Dimension	350x120x10mm
Dimension B	120 mm
Dimension d min.	10 mm

Fire protection version	Cushion insulation
Height	10 mm
Length	350 mm
Material	Glass mesh with special fire protection filling
Shape	Rectangular
Width	120 mm

All types

All types

Types	Dimension d min.	Contents	Item no.	Quantity	SSU
KBK-1	10 mm	0.18 kg	7202709	piece	5 piece
KBK-2	23 mm	0.33 kg	7202725	piece	5 piece
KBK-3	40 mm	0.63 kg	7202741	piece	5 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Calcium silicate plate	KSI-P1	7202283	piece	1 piece
Calcium silicate plate	KSI-P2	7202904	piece	1 piece
Calcium silicate plate	KSI-P3	7202912	piece	1 piece

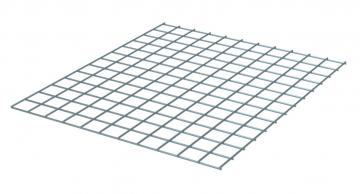

Steel wire grid	SDG-1	7202963	piece	1 piece
Steel wire grid	SDG-2	7202971	piece	1 piece
Identification plate DE	KS-S DE	7205425	piece	1 piece

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Support construction for insulations, with bracket	SKA 05 VZ	7202436	piece	1 piece
Support construction for insulations, with pendulum suspension	SKP 05 VZ	7202446	piece	1 piece
