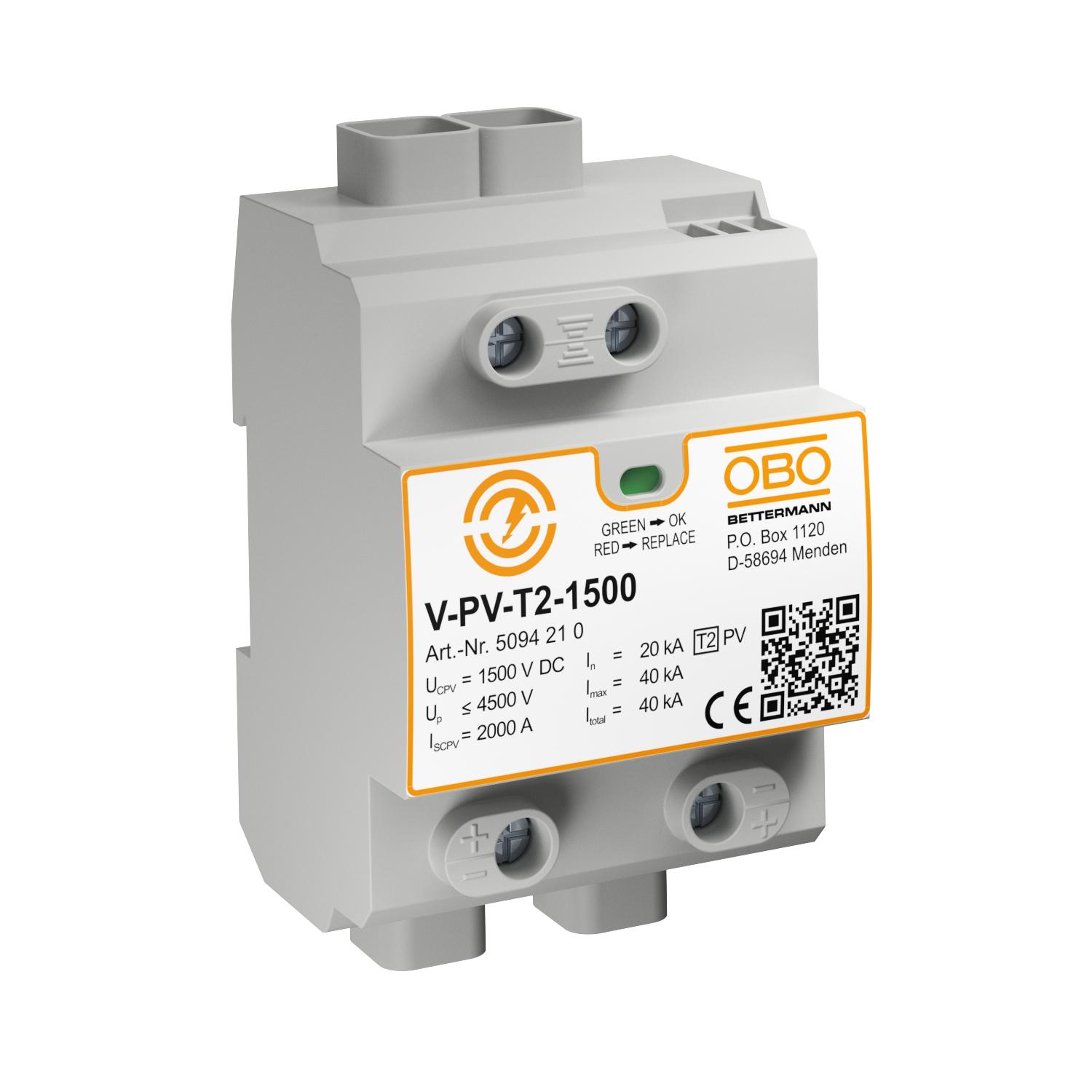

Product descriptionType 2 surge protection for PV plants.
• Surge protection according to IEC 60364-7-712 (VDE 0100-712)
• Arresting capacity of 20 kA per pole and up to 40 kA (8/20)
• Error-resistant Y circuit with status display
• The FS variant possesses a potential-free changeover contact for remote signalling
Application: Surge protective devices for PV systems.
- Technical data
-
Connectivity options
Arrester surge current (8/20 µs) [total] 40 kA Blow-out no Cable type for surge protection devices Power cable DC (PV) Colour Grey Conductor cross-section, flexible (fine-wire), max. 35 mm² Conductor cross-section, flexible (fine-wire), min. 2,5 mm² Conductor cross-section, rigid (single-wire/multiwire), max. 35 mm² Conductor cross-section, rigid (single-wire/multiwire), min. 2,5 mm² DC network form yes Dimension 1500V DC Explosion-tested version no Height 120 mm Installation type DIN rail 35 mm Integrated back-up fuse no IT network form no Length 65,5 mm Lightning protection zone LPZ 1→2 Max. PV voltage 1500 V Maximum continuous voltage DC 1500 V Maximum discharge current (8/20 μs) 40 kA Network form DC Nominal discharge current (8/20 µs) 20 kA OBO_Nominal load current (input/output terminal) 50 A Operating temperature, max. 80 °C Operating temperature, min. -40 °C Other network form no Pole version Other Protection rating IP20 Remote signalling no Response time <25 ns Signalling on device Visual SPD to EN 61643-11 Type 2 SPD to IEC 61643-1 Class II Test class, type 1 no Test class, type 2 yes Test class, type 3 no TN network form no TN-C network form no TN-C-S network form no TN-S network form no TT network form no Version for Y configuration Width 71,2 mm - All types
- Downloads
-
Data sheet V-PV-T2-1500 / 5094210 , 0.33MB , pdfCatalogue Überspannungsschutz , 28.42MB , pdfEU declaration of conformity V-PV-T2-1500 / 5094210 , 0.10MB , pdfREACH Declaration of conformity V-PV-T2-1500 / 5094210 , 0.12MB , pdfRoHS Declaration of conformity V-PV-T2-1500 / 5094210 , 0.12MB , pdfSelection aid Selection aid, surge protection , 2.00MB , pdfMounting instructions Mounting instructions V-PV-T2-1500...FS , 4.50MB , pdf
