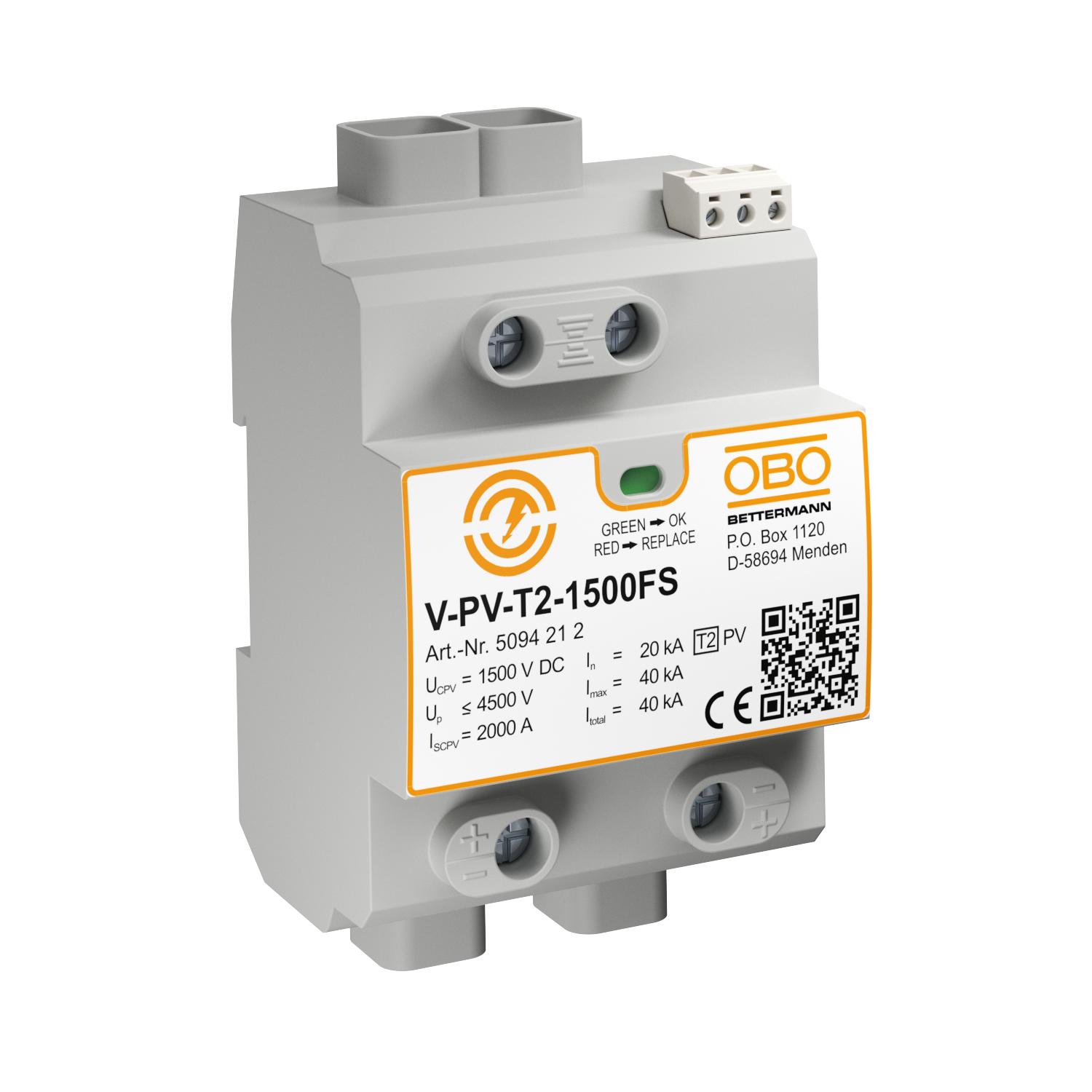

PV complete block 1,500 V DC with remote signalling Other | IP20

PV complete block 1,500 V DC with remote signalling

Item no. 5094212 | EAN 4012196603701

Item no. / Types

Pole version	Other

Protection rating	IP20

Product description

Product description

Type 2 surge protection for PV plants.

• Surge protection according to IEC 60364-7-712 (VDE 0100-712)

• Arresting capacity of 20 kA per pole and up to 40 kA (8/20)

• Error-resistant Y circuit with status display

• The FS variant possesses a potential-free changeover contact for remote signalling

Application: Surge protective devices for PV systems.

Technical data

Connectivity options

Arrester surge current (8/20 µs) [total]	40 kA
Blow-out	no
Cable type for surge protection devices	Power cable DC (PV)
Colour	Grey
Conductor cross-section, flexible (fine-wire), max.	35 mm²
Conductor cross-section, flexible (fine-wire), min.	2,5 mm²
Conductor cross-section, rigid (single-wire/multiwire), max.	35 mm²
Conductor cross-section, rigid (single-wire/multiwire), min.	2,5 mm²
DC network form	yes
Dimension	1500V DC
Explosion-tested version	no
FM contacts	Changeover
Height	120 mm
Installation type	DIN rail 35 mm
Integrated back-up fuse	no
IT network form	no
Length	65,5 mm
Lightning protection zone LPZ	1→2
Max. PV voltage	1500 V
Maximum continuous voltage DC	1500
Maximum discharge current (8/20 μs)	40 kA
Network form	DC

Nominal discharge current (8/20 µs)	20 kA
OBO_Nominal load current (input/output terminal)	50 A
Operating temperature, max.	80 °C
Operating temperature, min.	-40 °C
Other network form	no
Pole version	Other
Protection rating	IP20
Remote signalling	yes
Response time	<25 ns
Signalling on device	Visual
SPD to EN 61643-11	Type 2
SPD to IEC 61643-1	Class II
Test class, type 1	no
Test class, type 2	yes
Test class, type 3	no
TN network form	no
TN-C network form	no
TN-C-S network form	no
TN-S network form	no
TT network form	no
Version for	Y configuration + RS
Width	71,2 mm
