- Product description
-

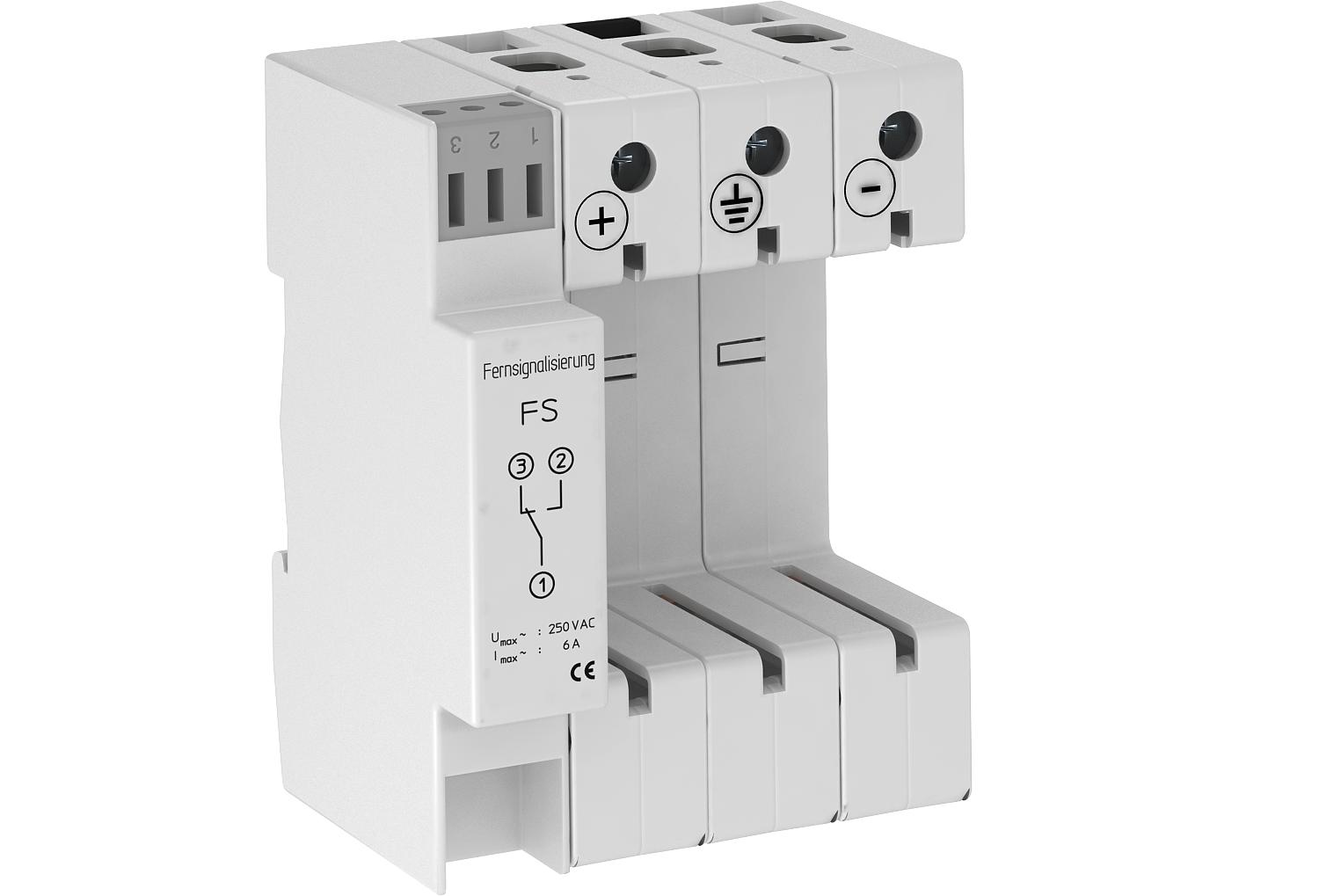

Product descriptionBase for photovoltaic systems up to Voc = 1,000 V (Y circuit)
• Suitable for V 50-B+C and V25-B+C covers, type 1+2, combination arrester
• Suitable for V 20-C upper parts, type 2, surge arresters

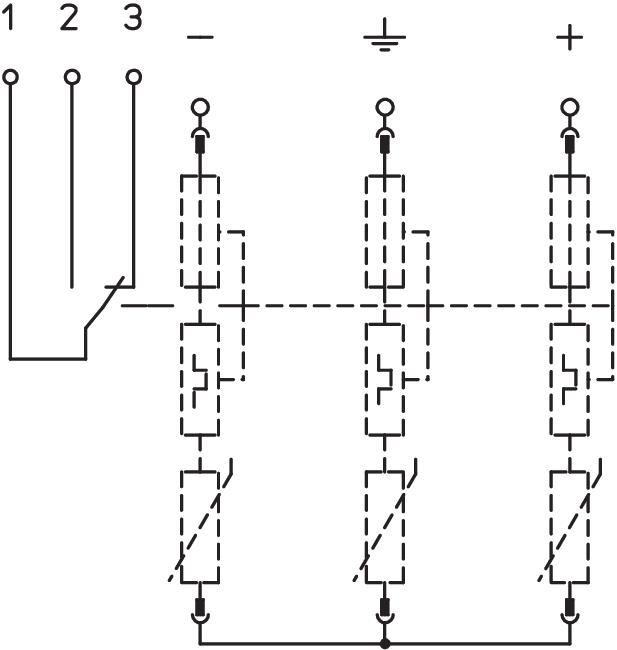

• Protection circuit against transverse and longitudinal voltages
• Y circuit
• Low DC voltage protection level: < 4.0 kV (Voc max = 1,000 V DC with V20-C/0-440)
• Low DC voltage protection level: < 3.0 kV (Voc max = 900 V DC with V25-B+C/0-385)
• Low DC voltage protection level: < 2.6 kV (Voc max = 600 V DC with V50-B+C/0-280)
• FS with remote signalling and potential-free changeover contact for function monitoring
• Labelled connections
Application: In photovoltaic systems between PH modules and inverters.
- Technical data
-
Technical data

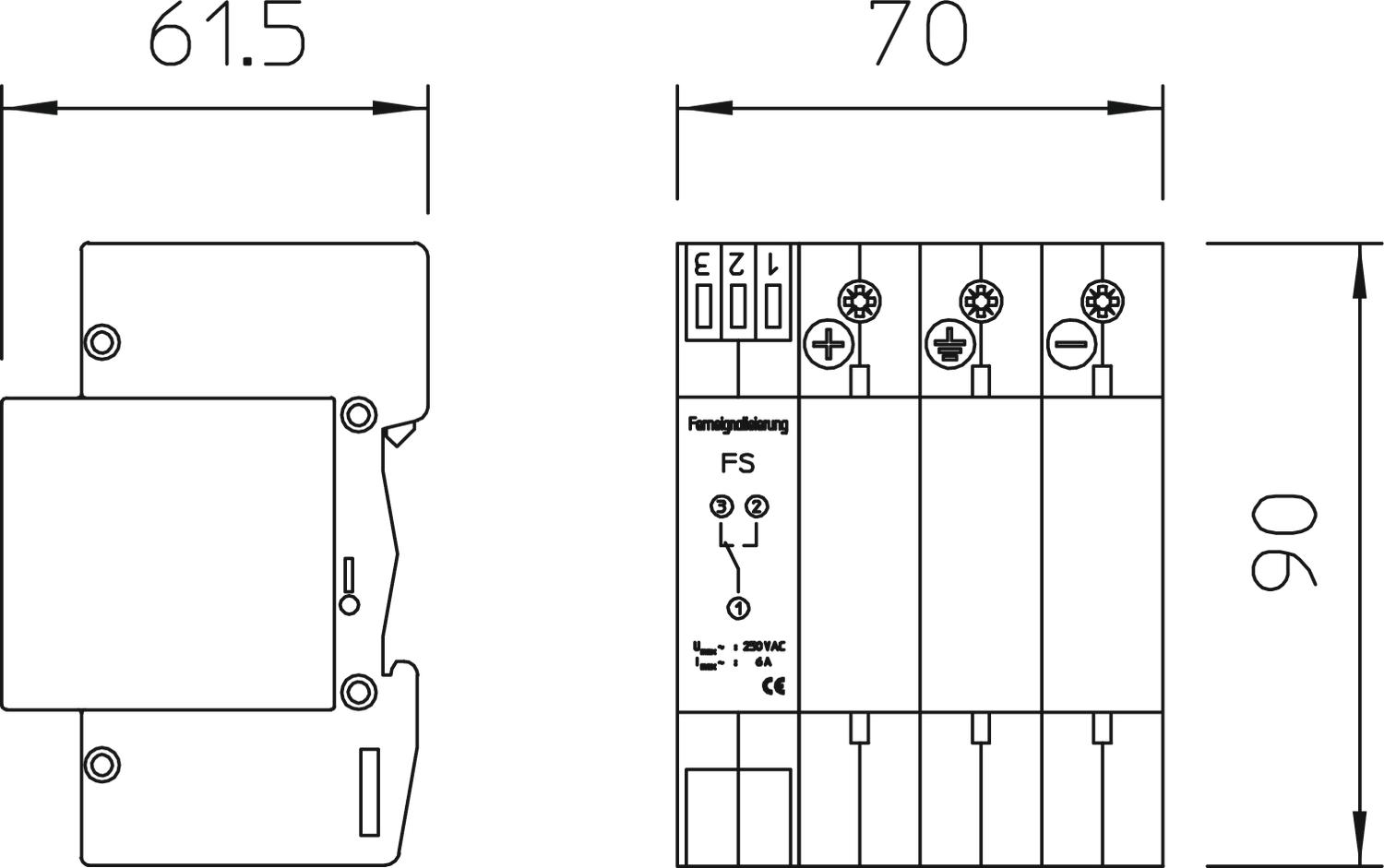

Conductor cross-section, rigid (single-wire/multiwire), max. 35 mm² Conductor cross-section, rigid (single-wire/multiwire), min. 2,5 mm² Dimension Y-PH DC Operating temperature, max. 80 °C Operating temperature, min. -40 °C Pole version 3 Protection rating IP20 Remote signalling yes Version for 3-pole Y circuit for photovoltaic systems with FS - All types
